BURNDY

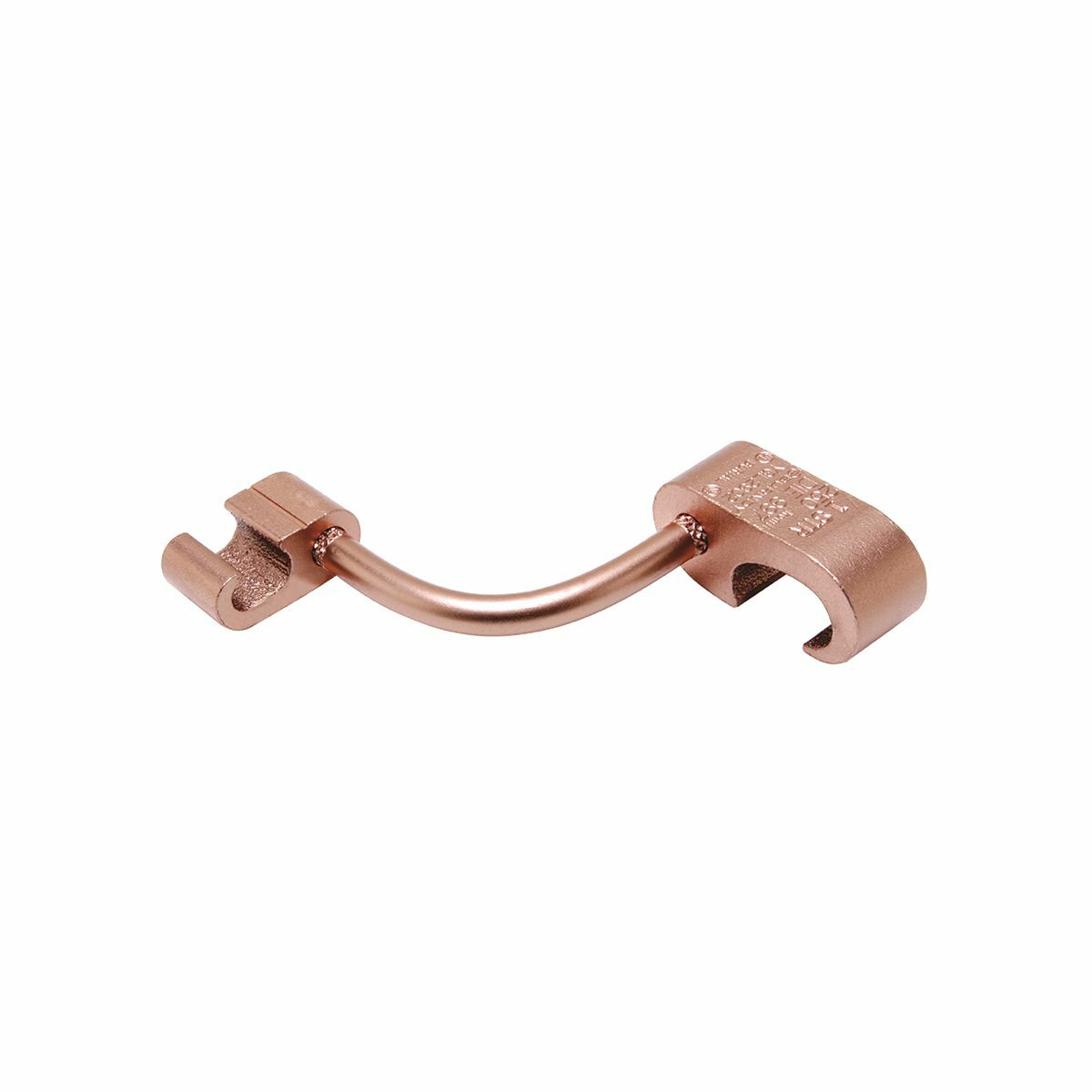

YGL2C2 Type YGL-C Compression Cross Grid Connector, 2 AWG, 4 AWG, 6 AWG Conductor, 1/2 to 5/8 in Rod, Copper, Unplated

MFR:
Burndy, a Hubbell affiliate
MFR #:
YGL2C2
UPC:
781810220009
Item #:
448748

Availability

Location Available Qty
Available Available to Order
$120.84 each
Manuals and Documentation
Catalog Number YGL2C2
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Direct Burial In Earth And Concrete
Material Copper
Special Features Features: An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Conductor Type: Run: Commercial Stranded Copper, Conductor Size (tap Range): 6 - 2 AWG, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y35, Y39, Y750 HYPRESS Tool, U-0 Die, (1), Y45 Tool, U-0 Die, (1), Y46 Tool, U-0 Die, (1), PAT750-18V Tool, U-0 Die, (1), Element B: Y35, Y39, Y750 Tool, U-0 Die, (1), Y45 Tool, U-0 Die, (1), Y46 Tool, U-0 Die, (1), PAT750-18V Tool, U-0 Die, (1), Die Index: O Element A, O Element B
Standard UL467;IEEE 837;IEEE 837 2014 Qualified
UPC 781810220009
GTIN 00781810220009
Item Type Taps
