Discontinued
Hubbell Wiring Device - Kellems

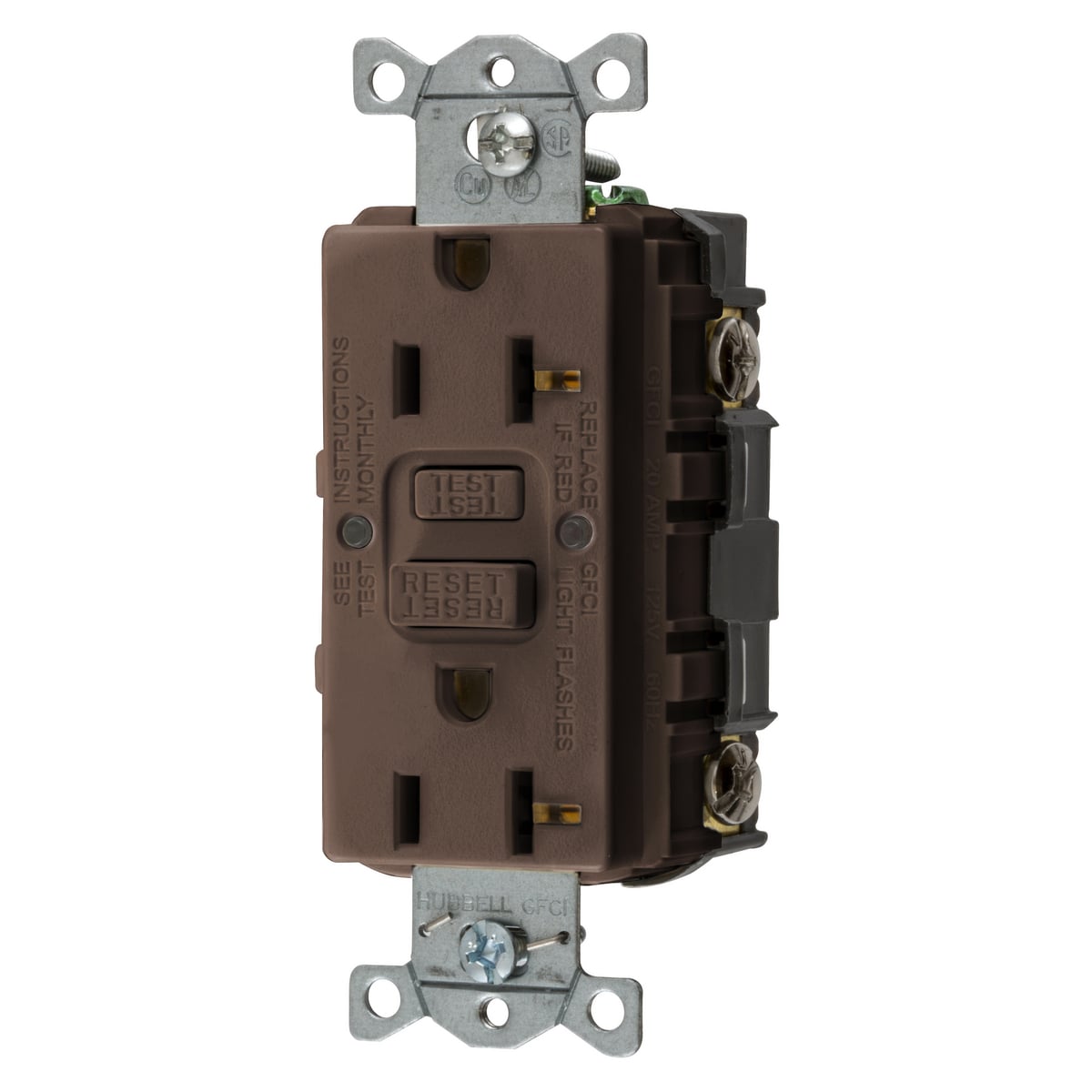

GFRST20 1-Phase Decorator Duplex Self-Test Screw Mount GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

MFR:
Hubbell Wiring Device-Kellems
MFR #:
GFRST20
UPC:
883778122125
Item #:
447552

Availability

Location Available Qty
Available 5 ea
$35.02 each

AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Manuals and Documentation
Catalog Number GFRST20
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Commercial Grade
Color Brown
Connection Terminal Screws
Material Thermoplastic/Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire Grounding
Phase 1
Special Features Self-Test
Standard Meets All NEC® Requirements
UPC 883778122125
GTIN 00883778122125
Item Type Standard
Size Standard Sized Product
Environmental Conditions Indoor Dry unless protected by additional means
Voltage Rating 125
Wattage 2500 W
Wire Size #14 AWG to #12 AWG
Cross Reference Products GFNT2
