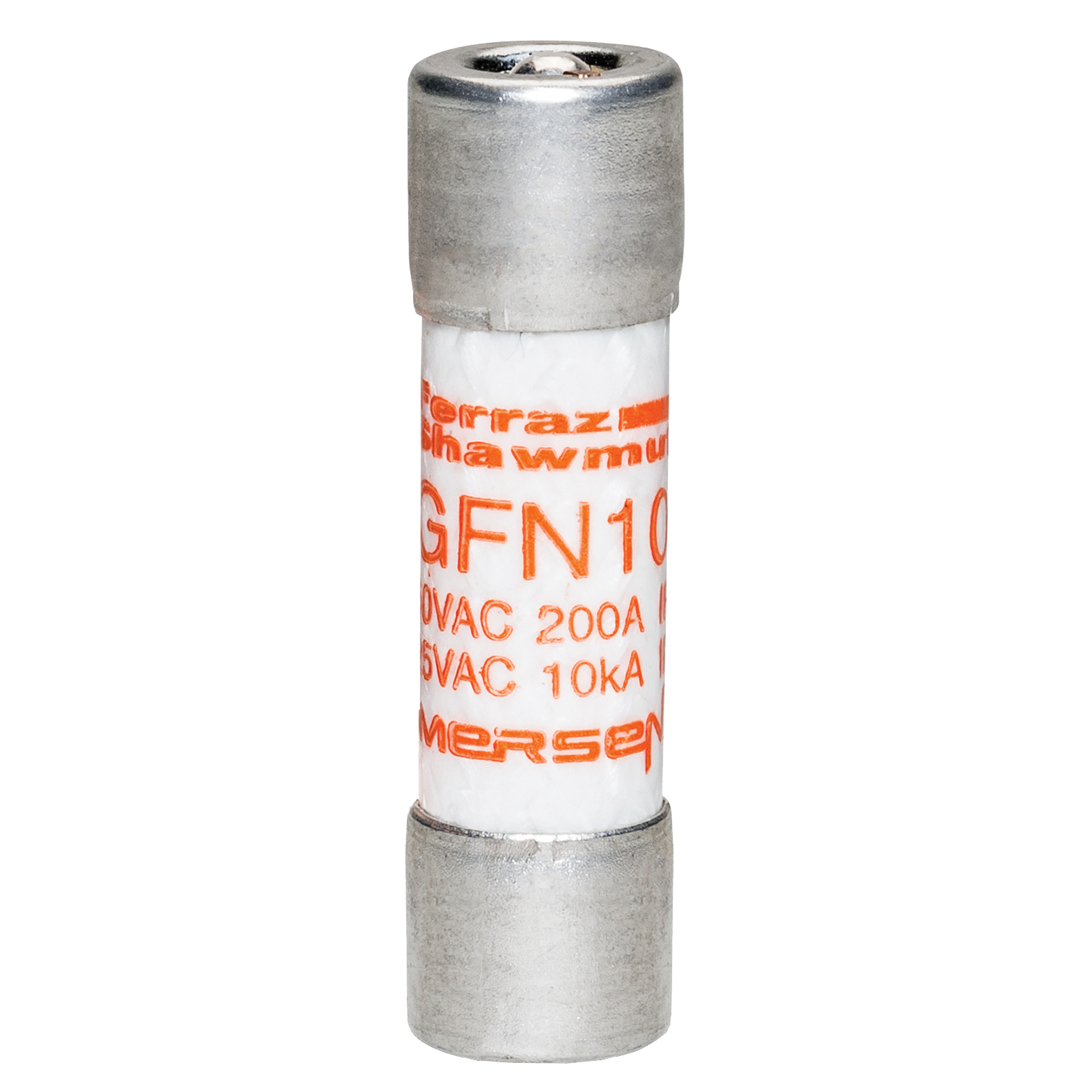

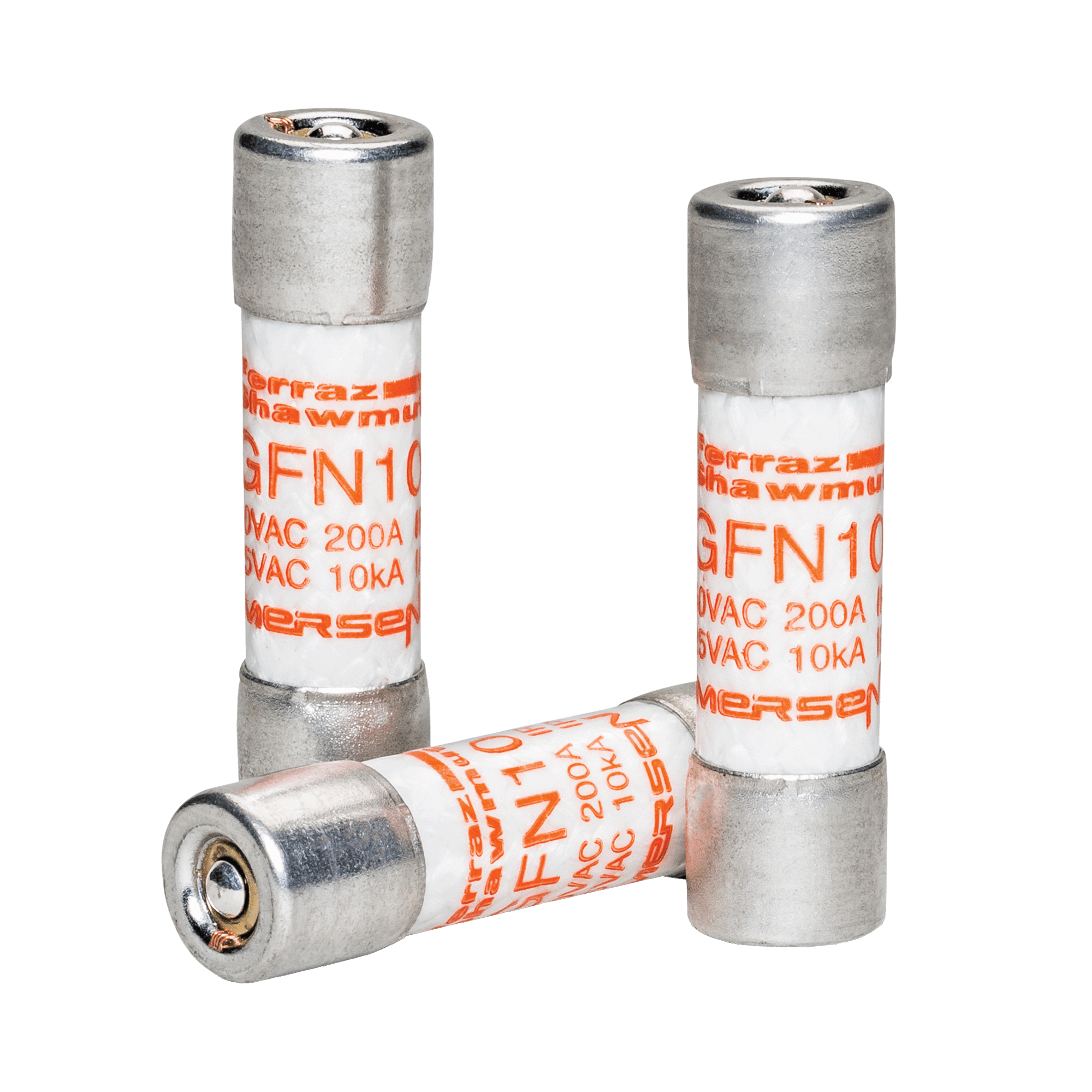

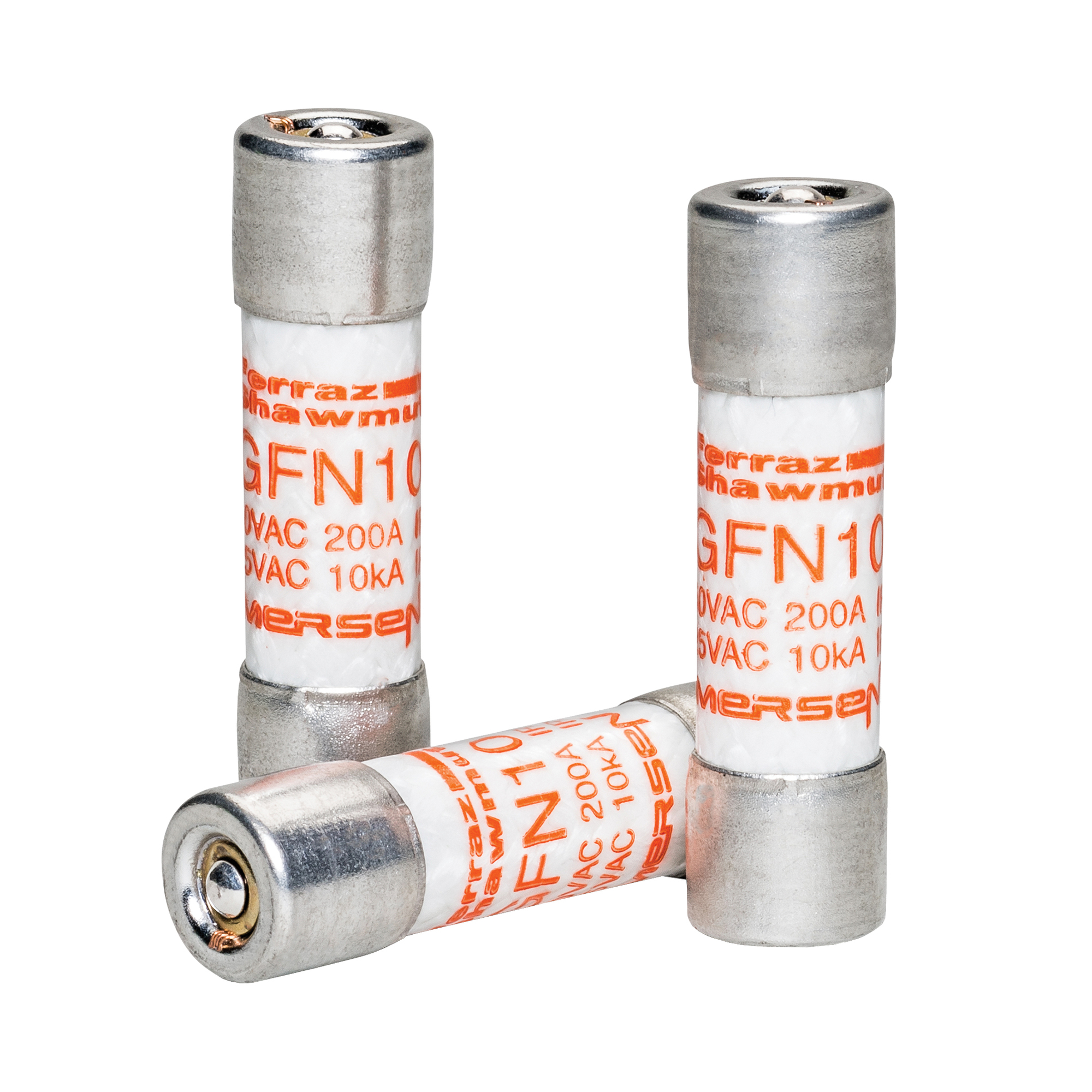

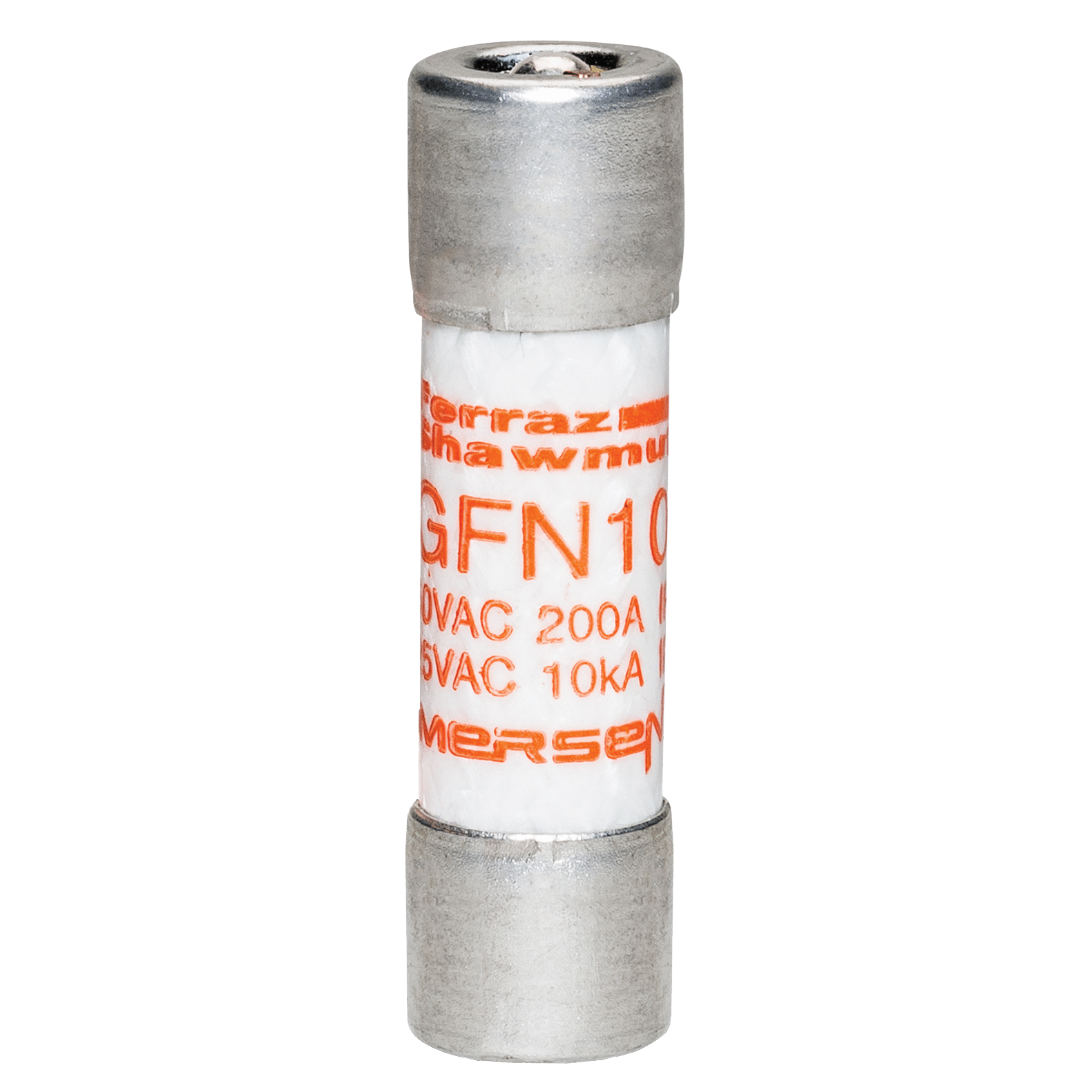

GFN10 Low Voltage Time Delay Fuse, 10 A, 250 V AC, 0.2 kA, Class Midget, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- GFN10
- UPC:
- 782001767433
- Item #:
- 44676
GFN10 Low Voltage Time Delay Fuse, 10 A, 250 V AC, 0.2 kA, Class Midget, Cylindrical Body
- MFR #:
- GFN10
- UPC:
- 782001767433
- Item #:
- 44676
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$65.68
each
Fuse GFN - Midget - Time-Delay 250VAC 10A Ferrule Visual Indicator
Manuals and Documentation
| Catalog Number | GFN10 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 10 |
| Application | For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits. |
| Connection | Ferrule |
| Interrupt Rating | 0.2 KA |
| Mounting | Clip |
| Special Features | Pin indicator provides visual indication of open fuse or actuates switch for remote signaling Numerous ratings for a wide variety of applications 12 second time-delay at 200 rating Can be used with UltraSafe™ fuse holders (1/10 - 10A) 1 1/2" x 13/32" (10 mm x 38 mm) dimensions |
| Standard | UL Listed to standard 248-14 (1/10 to 15A) File E33925 CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A) |
| UPC | 782001767433 |
| GTIN | 00782001767433 |
| Item Type | Midget Fuses |
| Size | 1.5 x 0.41 |
| Type of Indicators | Visual Indicator |
| Voltage Rating | 250 |
