ACME ELECTRIC

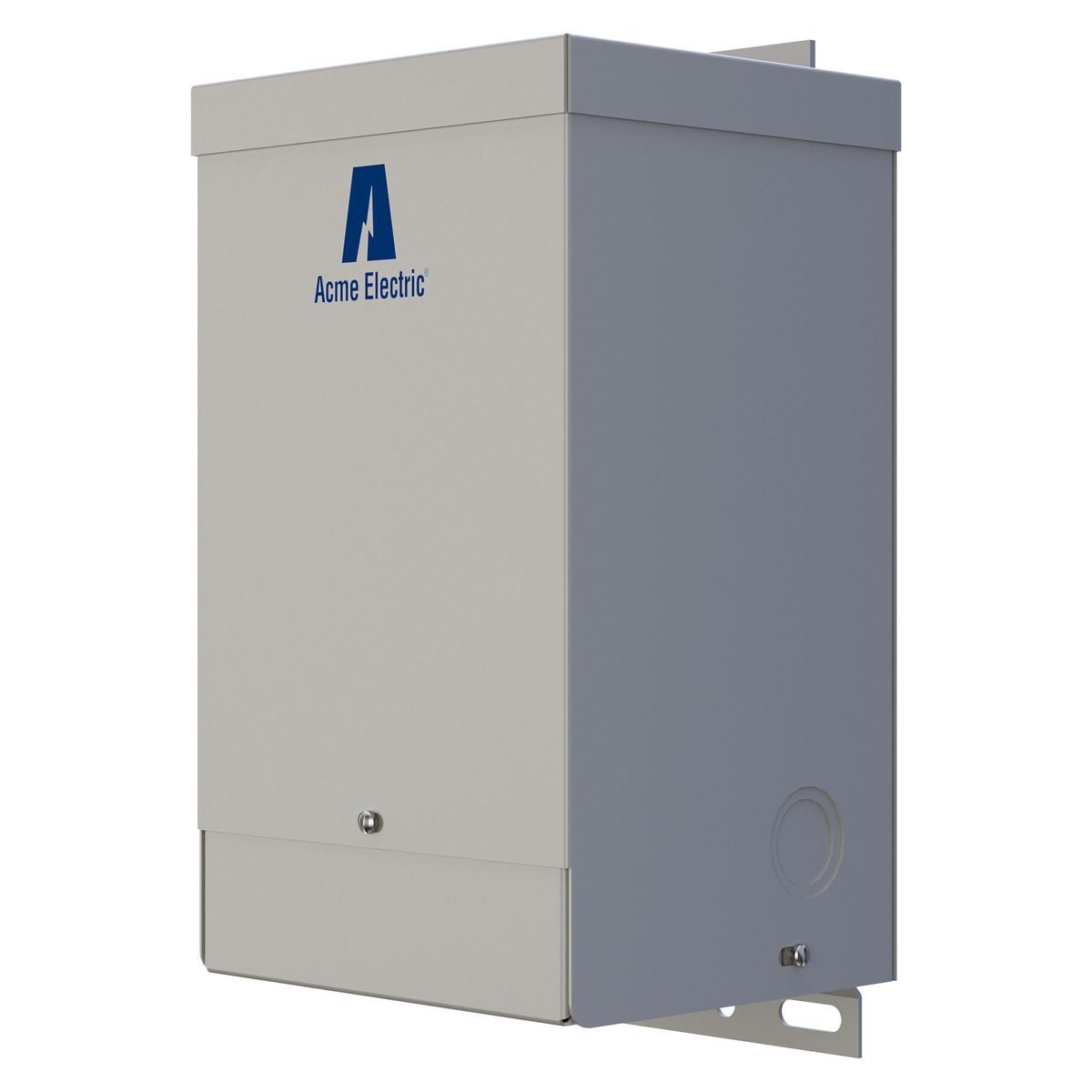

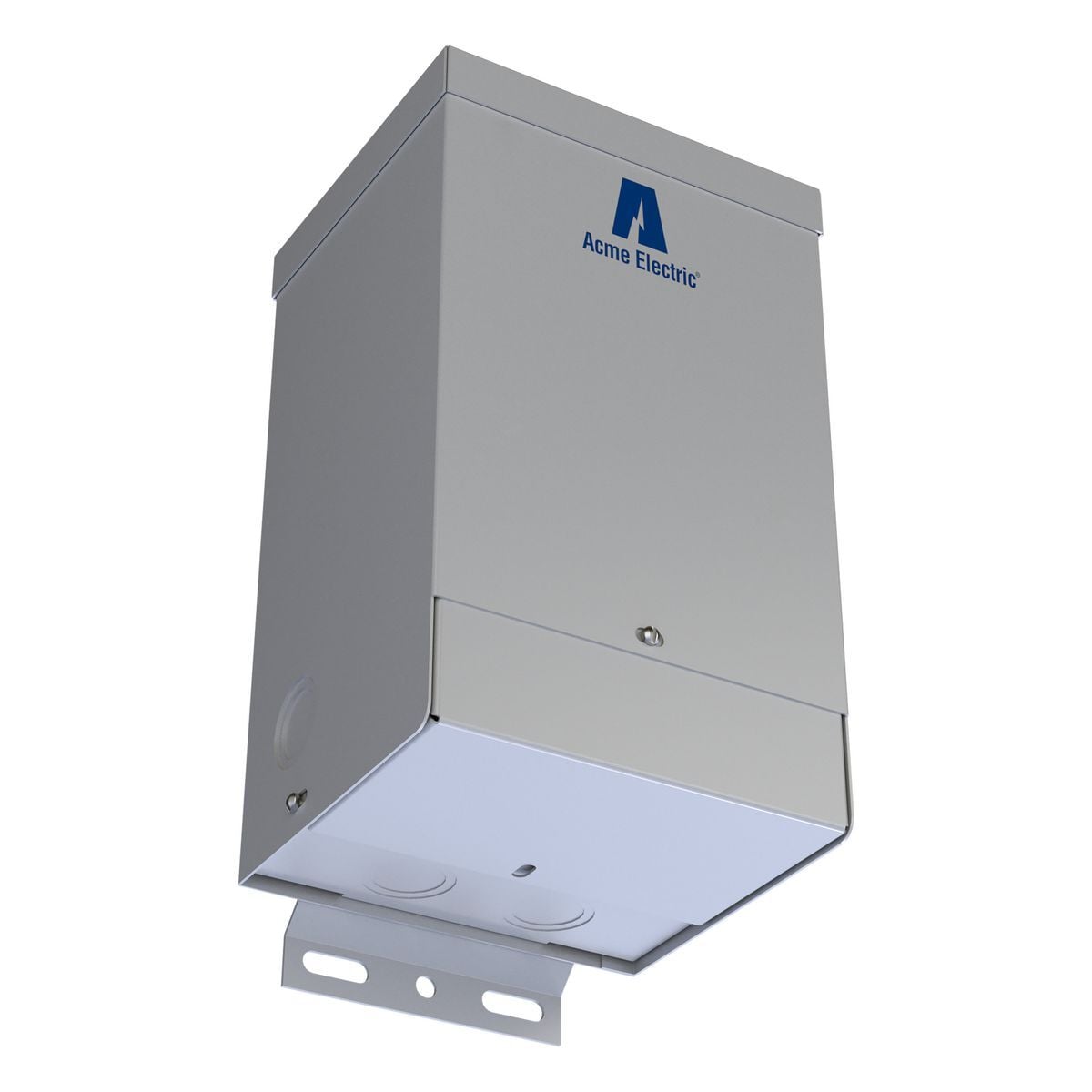

T181066 Encapsulated Buck Boost Transformer, 240/480 V AC Primary, 24/48 VDC Secondary, 15.09 kVA Power Rating, 50/60 Hz, 1 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
T181066
UPC:
047503088128
Item #:
44663

Availability

Location Available Qty
Available Available to Order
$640.13 each
Manuals and Documentation
Catalog Number T181066
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin Mexico
Made in USA No
Application For Low Voltage Lighting Or Control Circuitry
Connection Wire Lead Screw Terminal
Enclosure NEMA 3R Steel
Frequency Rating 50/60 HZ
Insulation Class 180 DEG C Class H

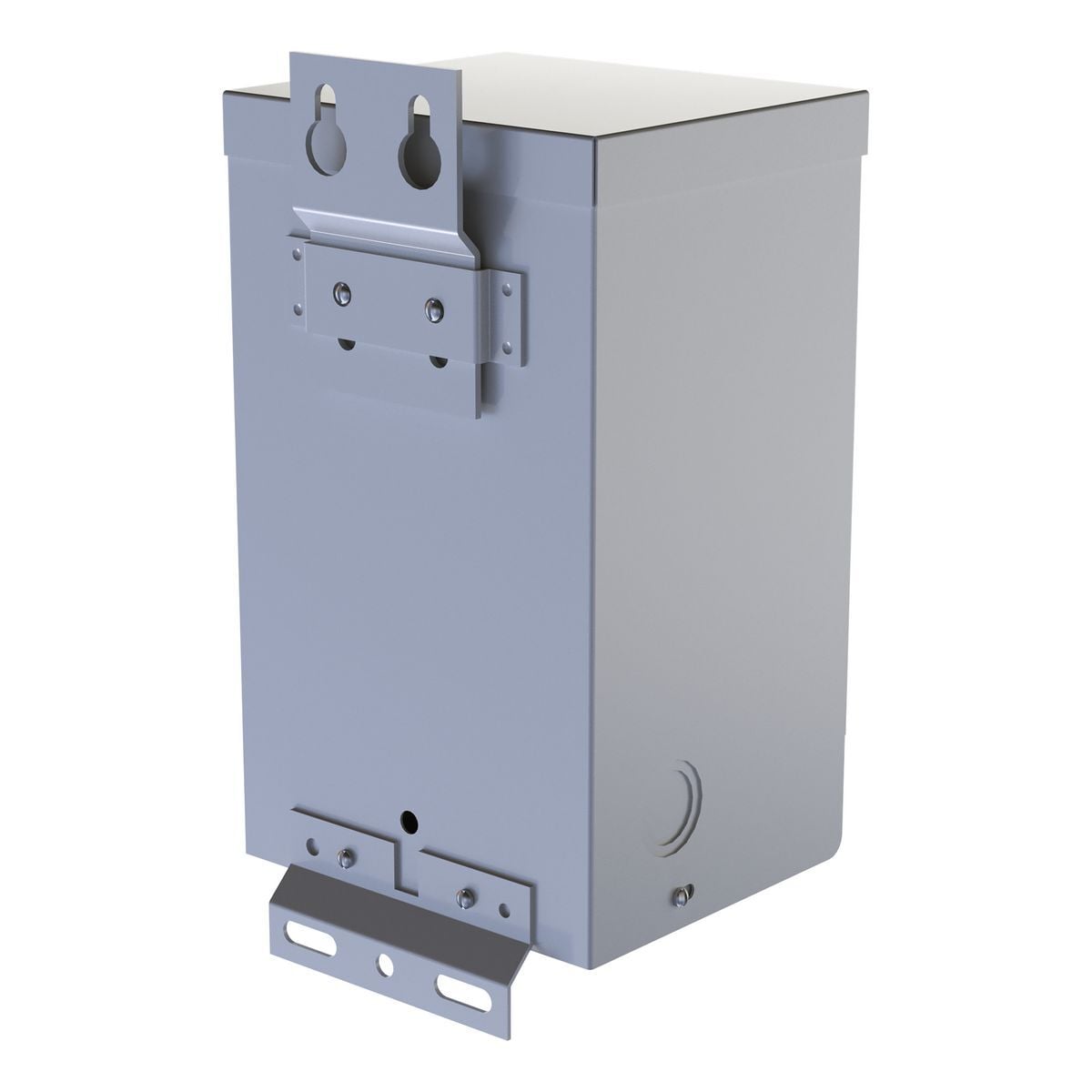

Mounting Wall
Phase 1
Primary Voltage 240 X 480 V
Secondary Voltage 24/48 V
Special Features Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty
Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503088128
GTIN 00047503088128
Item Type Buck-Boost Transformer
Length 7.13
Length UOM Inch
Width 10.31
Width UOM Inch
Height 14.38
Height UOM Inch
Temperature Rating 115 DEG C Rise
