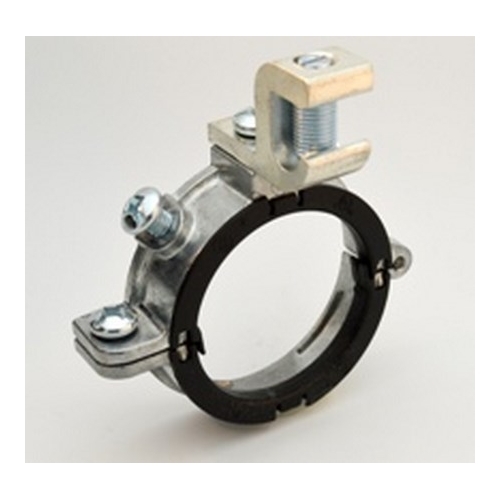

Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 4 Inch, 14-1/0 Lug
- MFR:
- NSi Industries
- MFR #:
- SGB-390CL
- UPC:
- 781747903907
- Item #:
- 44592
Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 4 Inch, 14-1/0 Lug
- MFR #:
- SGB-390CL
- UPC:
- 781747903907
- Item #:
- 44592
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
$109.01
each
Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 4 Inch, 14-1/0 Lug
Manuals and Documentation
Features
- Mighty-Rite's hinged design & adjustable grounding lug deliver installation flexibility on every job
- Aluminum alloy lug
- Patented
- Hinged design adjusts and aligns easier -even in tight spots
- Pulling larger conductor wire is easier when you can install grounding bushings after the pull
| Catalog Number | SGB-390CL |
| Manufacturer | NSi Industries |
| Brand | Bridgeport |
| Sub Brand | Mighty-Rite |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Used in situations where wires have already been pulled through Rigid/IMC conduit, and an insulated bushing is required. Rated 150 Degree C. cULus listed. Patented. Now featuring UV Stabilized Insulators and Stainless Steel Hardware, perfect for solar and other outdoor installations! |
| Color | Gray;Black Insulator |
| Finish | Ball burnish |
| Material | Zinc Alloy |
| NEMA Rating | FB-1 |
| Special Features | Grounding Lug Wire Capacity #6 - 250MCM |
| Standard | cULus |
| RoHS URL | https://ideadigitalasset.com/DAMRoot/Original/11932/10992_RoHS3_Compliance_Letter-Zinc_Malleable_Iron_Steel&Plastics-REV_R_5-11-21 (1).pdf |
| UPC | 781747903907 |
| GTIN | 00781747903907 |
| Item Type | Split |
| Size | 4 |
| Temperature Rating | 150? Degrees C |
| Trade Size | 4 IN |
