Hubbell Wiring Device - Kellems

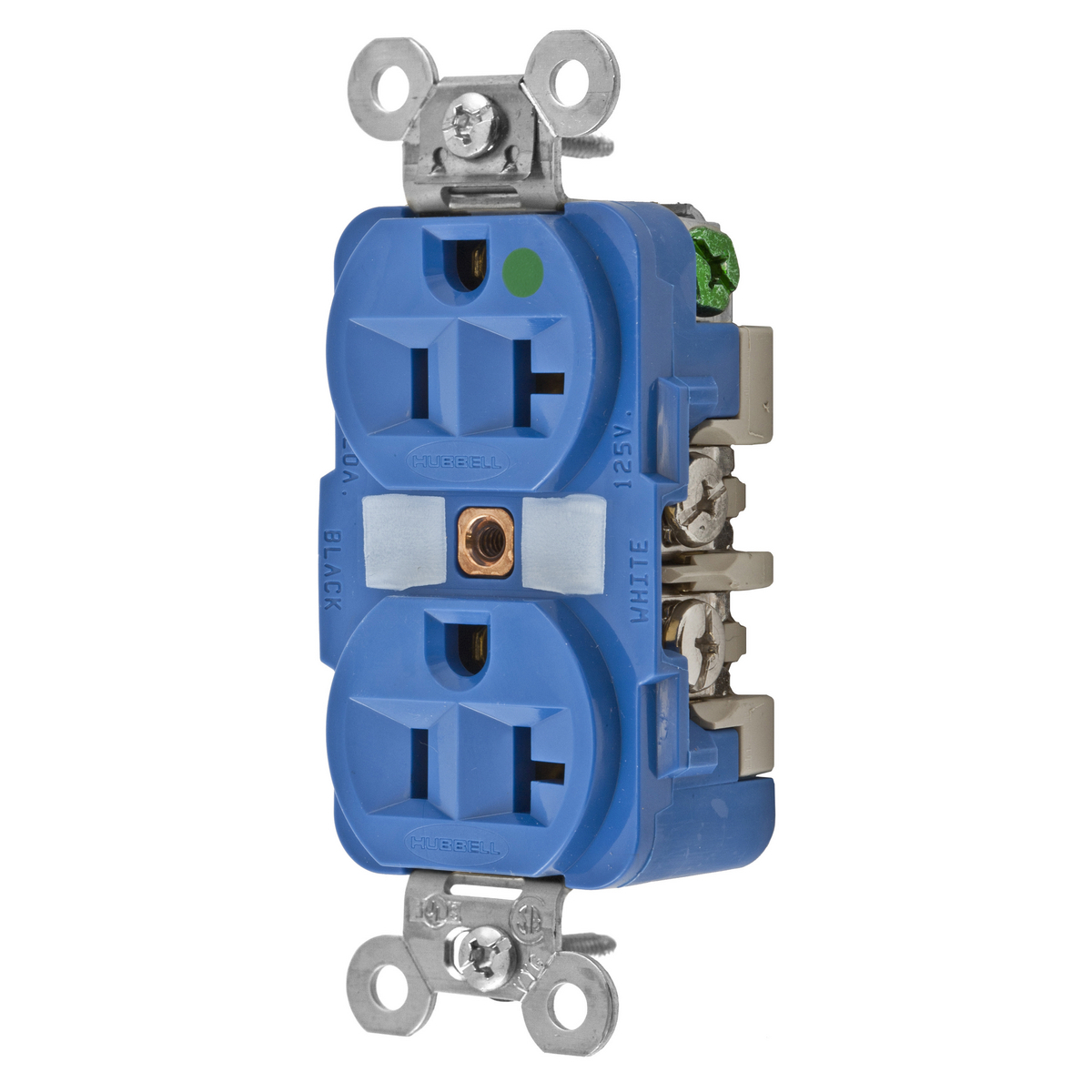

HBL8300BL 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Blue

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL8300BL
UPC:
783585176604
Item #:
444732

Availability

Location Available Qty
Available Available to Order

HBL Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.

Manuals and Documentation
Catalog Number HBL8300BL
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 20
Application Extra Heavy Duty Hospital Grade
Color Blue
Connection Back and Side Wired Screw Terminals
Material Thermoplastic
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Self Grounding
Standard CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585176604
GTIN 00783585176604
Item Type Receptacle
Size 3.28 in x 1.65 in x 1.19 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG to #10 AWG
Cross Reference Products 8300-BU, 8300-HBU
