Telemecanique

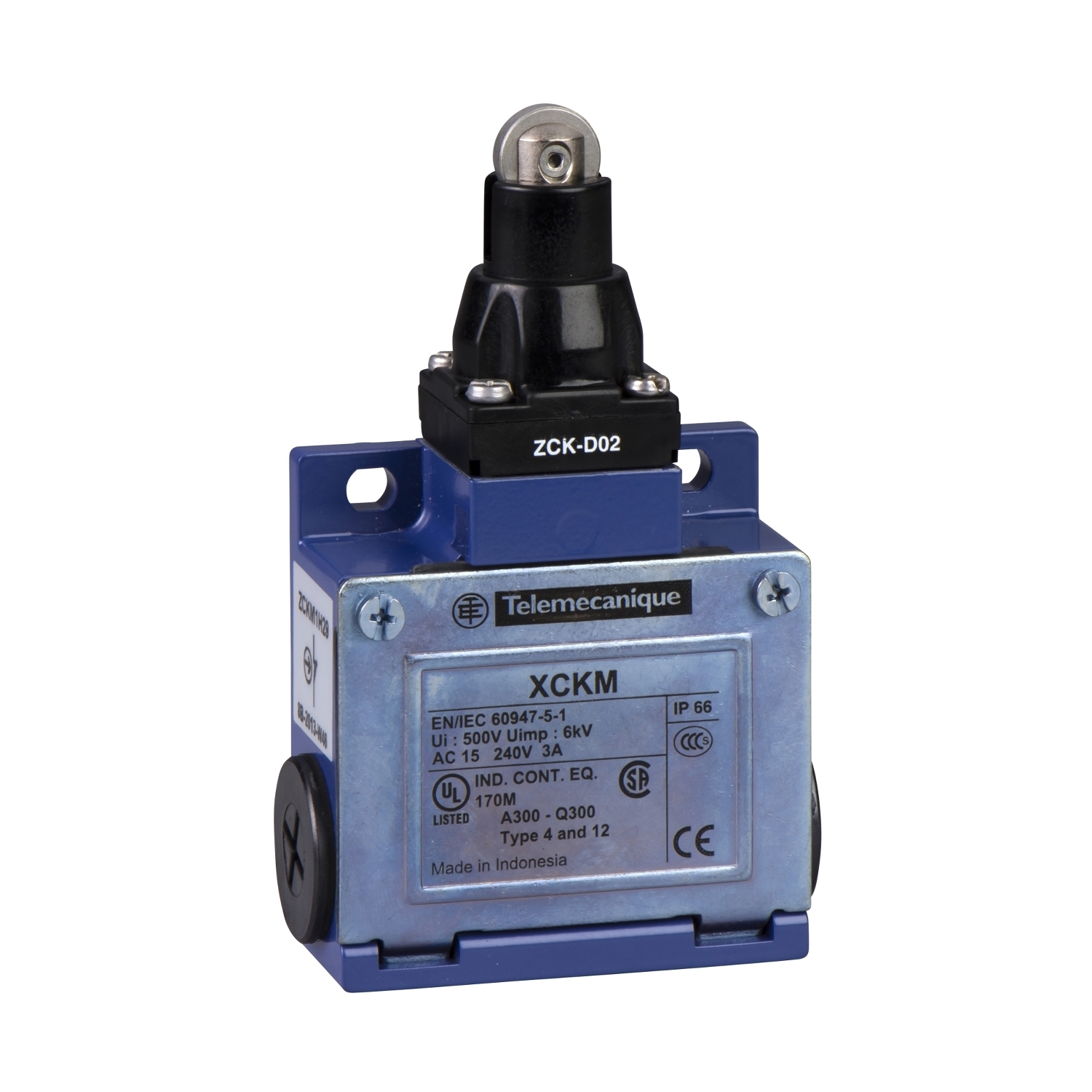

XCKM102H7 OsiSense Fixed Standard Plunger Actuated Limit Switch, 240 VAC, 250 VDC, 10 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKM102H7
UPC:
785901240389
Item #:
444542

Availability

Location Available Qty
Available Available to Order
$174.43 each

limit switch XCKM - steel roller plunger - 1NC+1NO - snap action - 1/2NPT

Manuals and Documentation
Catalog Number XCKM102H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller plunger metal
Amperage Rating 10
Application CLASSIC
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 4/12 IP65
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,CSA-UL-CCC,IK05 EN 50102,IP66 EN/IEC 60529,UL 508-EN 60947-5-1-IEC 60204-1-CSA C22.2 NO 14-IEC 60947-5-1-EN 60204-1,CLASS I IEC 61140-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856526&lang=en-us
UPC 785901240389
GTIN 03389110902204
Item Type Limit switch
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
