Appleton

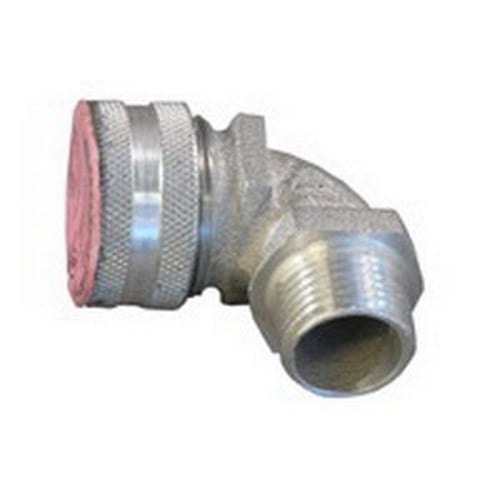

90 deg Liquidtight Strain Relief Cord & Cable Connector, 1-1/4 inch, 1.25 - 1.375 inch Conductor, Aluminum

MFR:
Appleton Electric
MFR #:
CG90-125125
UPC:
781381190459
Item #:
44368

Availability

Location Available Qty
Available 3 ea
$175.82 each

90 DEG Liquidtight Strain Relief Connector, Size: 1-1/4 IN, Conductor Range: 1-1/4 - 1-3/8 IN, Material: Cast Aluminum, Color: Green Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Divis

Manuals and Documentation
Catalog Number CG90-125125
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
Color Green Label
Conductor Range 1-1/4 - 1-3/8 IN
Connection Threaded Hub
Material Cast Aluminum
NEMA Rating 3R
Special Features For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet; Remove sufficient outer covering of cord or cable to pass conductors through connector body
Standard Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
UPC 781381190459
GTIN 00781381190459
Item Type 90 DEG Liquidtight Strain Relief Connector
Size 1-1/4
