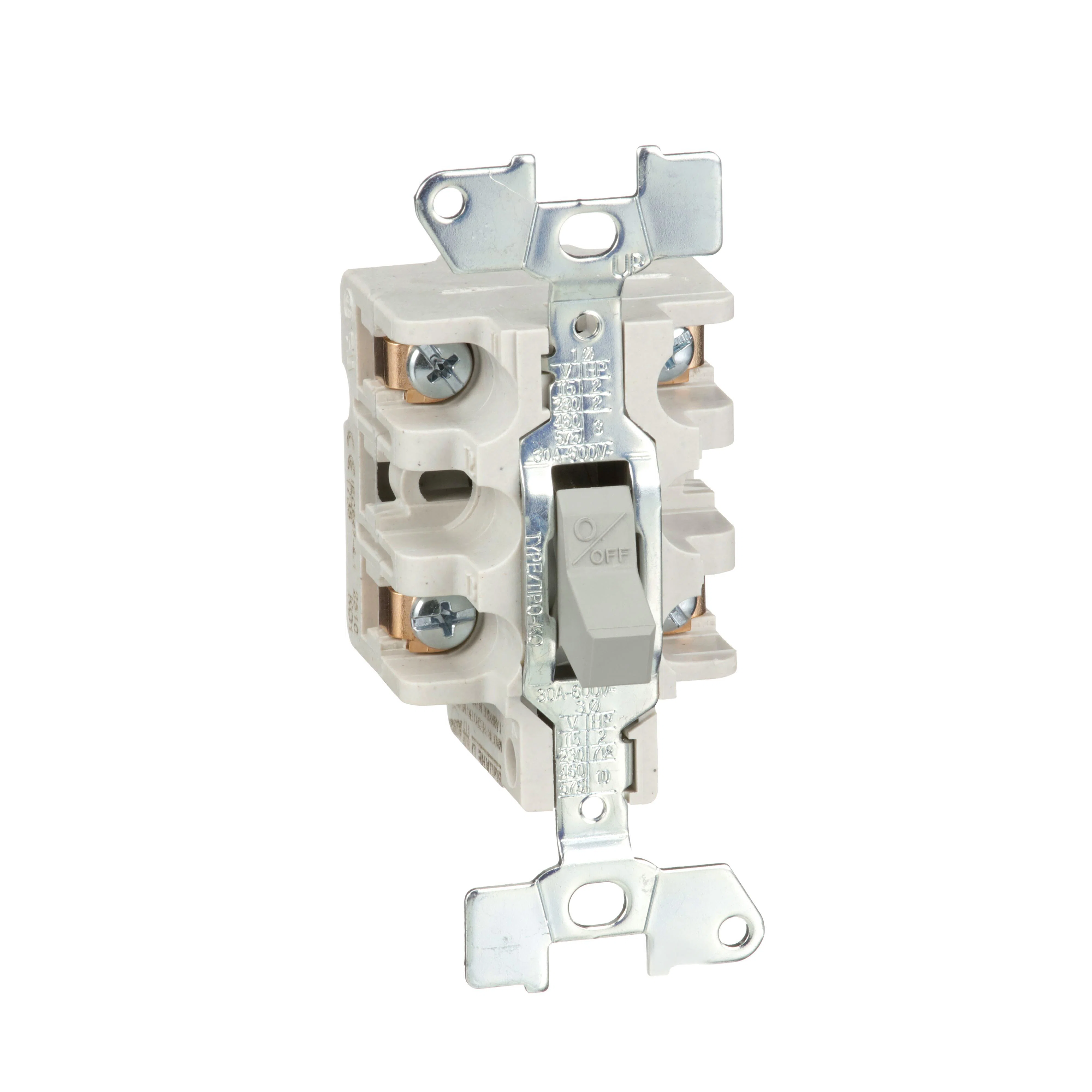

2510KO1 Type K 1-ph 1-Unit Manual Switch, 600 VAC, 230 VDC, 30 A, 1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VDC/115 VAC/230 VAC/3 hp at 460 VAC/575 VAC Power Rating
- MFR:
- Schneider Electric
- MFR #:
- 2510KO1
- UPC:
- 785901554554
- Item #:
- 443
2510KO1 Type K 1-ph 1-Unit Manual Switch, 600 VAC, 230 VDC, 30 A, 1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VDC/115 VAC/230 VAC/3 hp at 460 VAC/575 VAC Power Rating
- MFR #:
- 2510KO1
- UPC:
- 785901554554
- Item #:
- 443
Availability
| Location | Available Qty |
|---|---|
| Available | 72 ea |
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This manual motor switch is not supplied with an enclosure. This switch is 4.13 inches tall, 1.69 inches wide and 2.34 inches deep. It weighs 0.35 lb. This device is UL Listed and CSA certified.
Manuals and Documentation
Features
- This two pole, 30 Aswitch is without a pilot light indicator
- Open type fits industry standard single-gang switch boxes for direct mounting in a wall or machine
- This Type K Manual Switch is an economical on/off solution
- Simple design, small size and easy to install
| Manufacturer Part Number | 2510KO1 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901554554 |
| EAN | 0785901554554 |
| Country Of Origin | MX |
| Amperage Rating | 30 A |
| Dimensions | 1.69 in W x 2.34 in D x 4.13 in H |
| Enclosure | Open |
| Series | 2510 |
| Type | Type K 1-ph 1-Unit |
| Voltage Rating | 600 V AC/230 V DC |
| Alternative Part Number | 8089659 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | CCN Certified | CE Certified | CSA File No. LR25490 Class 3211-05 | ECCN: EAR99 | NLRV Certified | UL File No. E42243 | PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Application | For providing manual ON/OFF control of 1 or 3-phase AC motors where overload protection is not required or provided separately applications |
| Action | Non-Reversing |
| Actuator | Toggle |
| Connection | Screw Clamp |
| Number Of Poles | 2 |
| Power Rating | 1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VDC/115 VAC/230 VAC/3 hp at 460 VAC/575 VAC |
