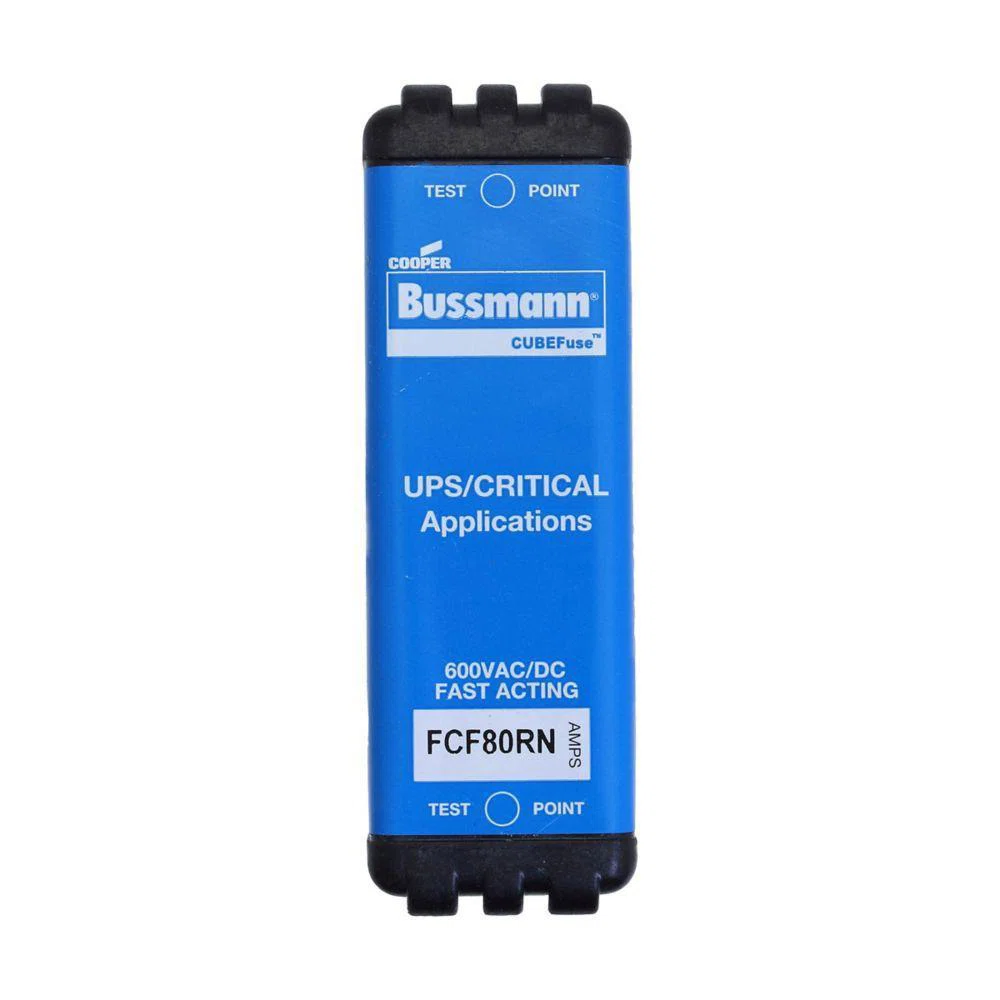

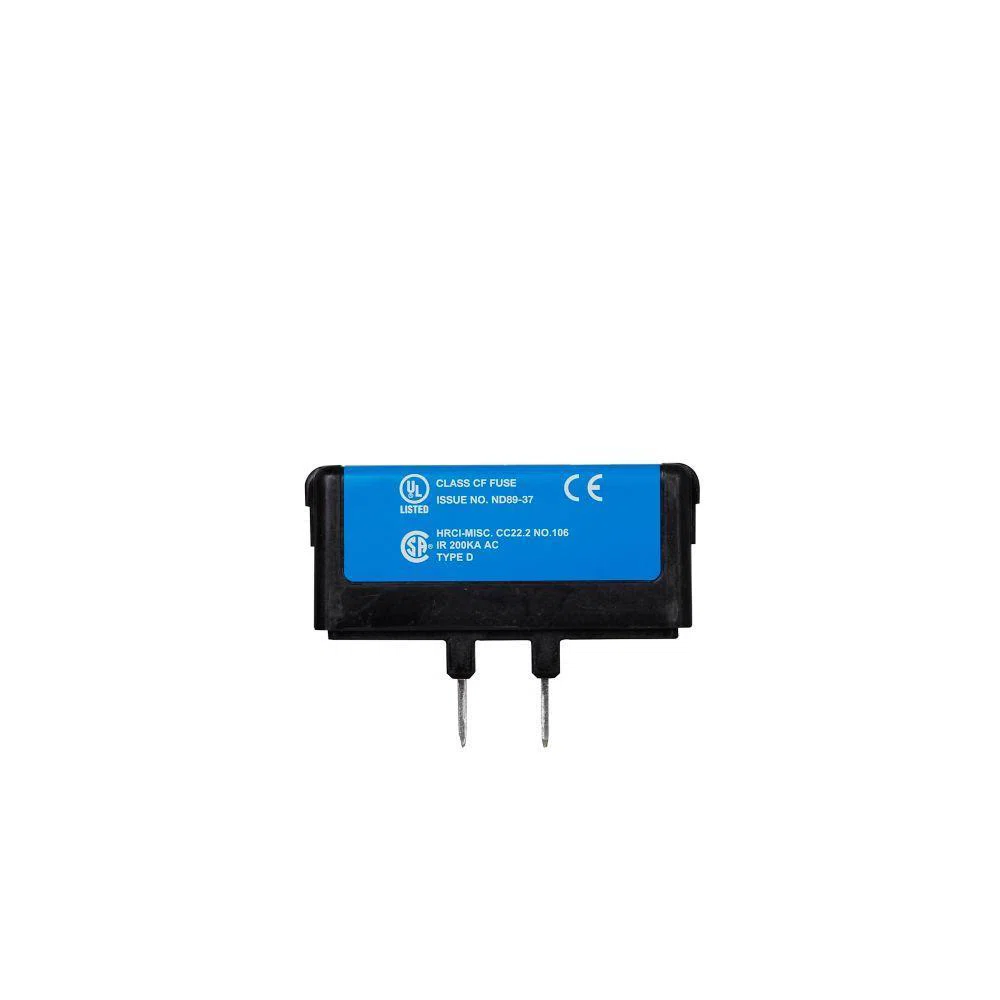

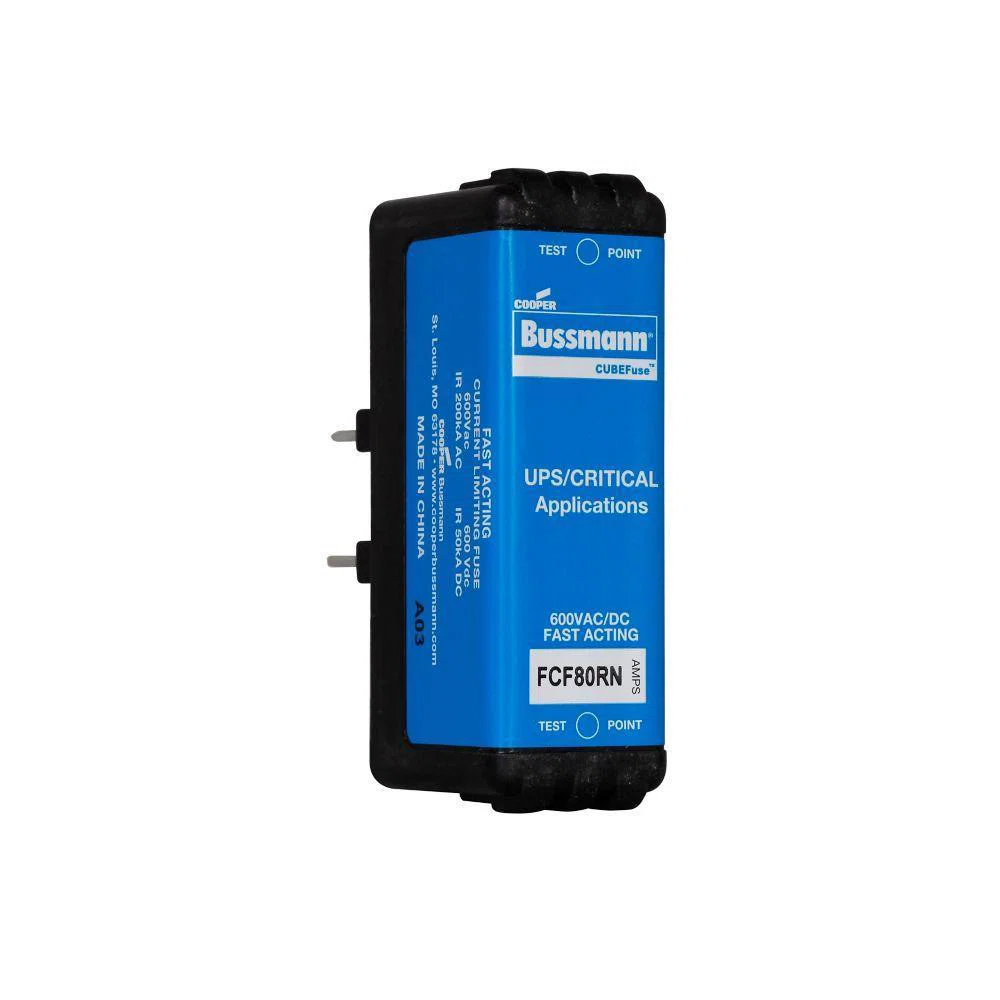

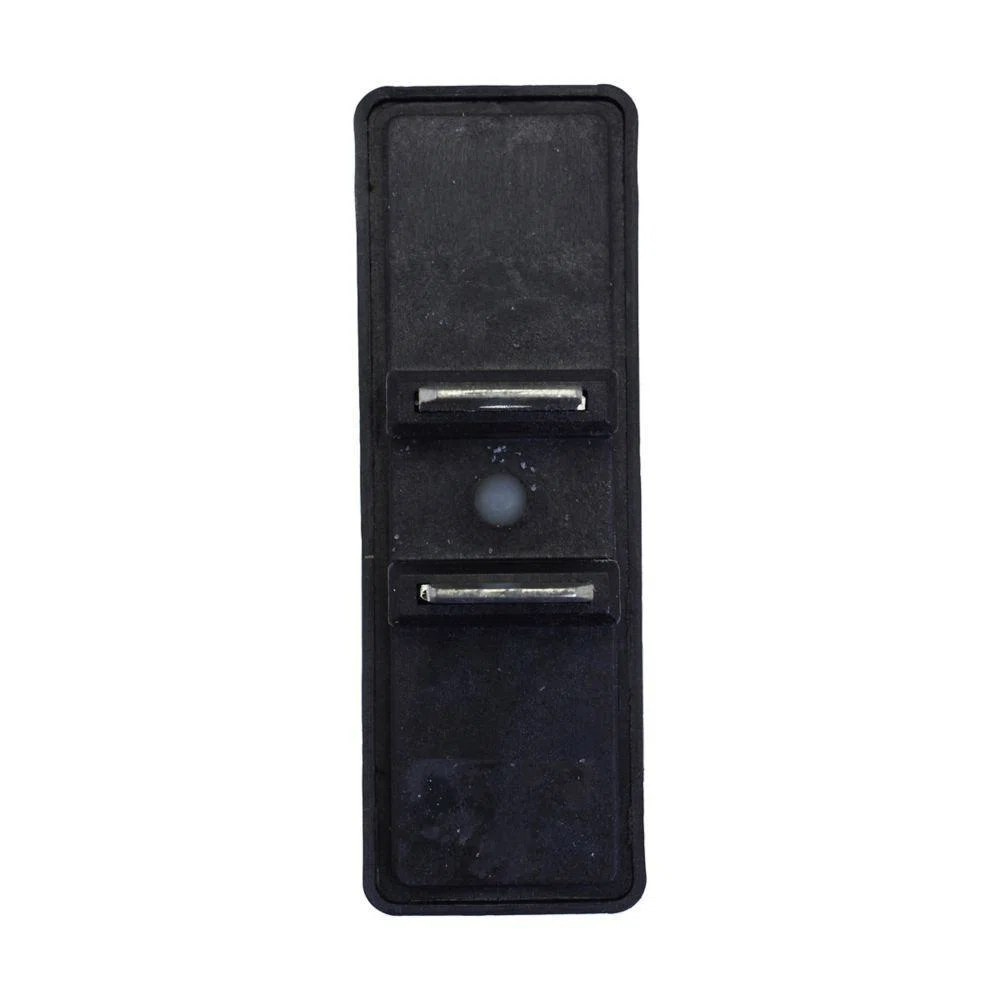

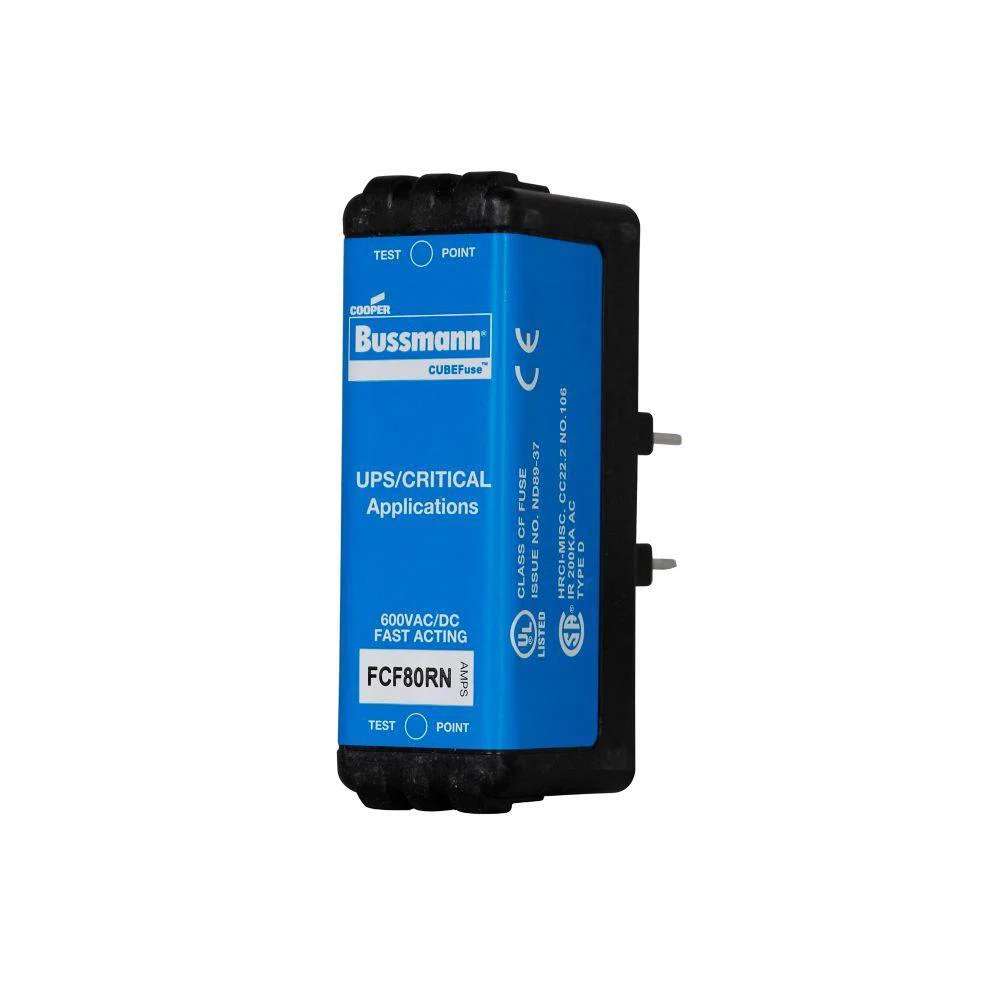

FCF80RN Fast Acting Non-Indicating Cartridge Fuse, 80 A, 600 V AC/DC, 50/200 kA Interrupt, Class: CF, Square Blade Body
- MFR:
- Eaton
- MFR #:
- FCF80RN
- UPC:
- 051712362559
- Item #:
- 442982
FCF80RN Fast Acting Non-Indicating Cartridge Fuse, 80 A, 600 V AC/DC, 50/200 kA Interrupt, Class: CF, Square Blade Body
- MFR #:
- FCF80RN
- UPC:
- 051712362559
- Item #:
- 442982
Availability
| Location | Available Qty |
|---|---|
| Available | 10 ea |
$434.41
each
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution — requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Manuals and Documentation
Features
- Finger safe
- Fuse Type: CUBEFuse™
- Terminal Material: Electroless Tin-Plated Copper Alloy
| Manufacturer Part Number | FCF80RN |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712362559 |
| Country Of Origin | CN |
| Amperage Rating | 80 A |
| Color | Black |
| Material | Glass Filled Polyethersulfone |
| Mounting Type | Holder |
| Series | FCF |
| Type | Fast Acting Non-Indicating |
| Voltage Rating | 600 V AC/DC |
| Alternative Part Number | 11280248 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | UL Listed ,CSA Certified,CE Marked,RoHS Compliant |
| Application | Commercial/Institutional Buildings/structures, Power Distribution and Control and UPS, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory |
| Body Size | 3.01 in L x 1 in W |
| Body Type | Square Blade |
| Class | CF |
| Element | Single |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 50/200 kA |
| Response Time | 8 min at 200% |
| Terminal Type | Blade |
