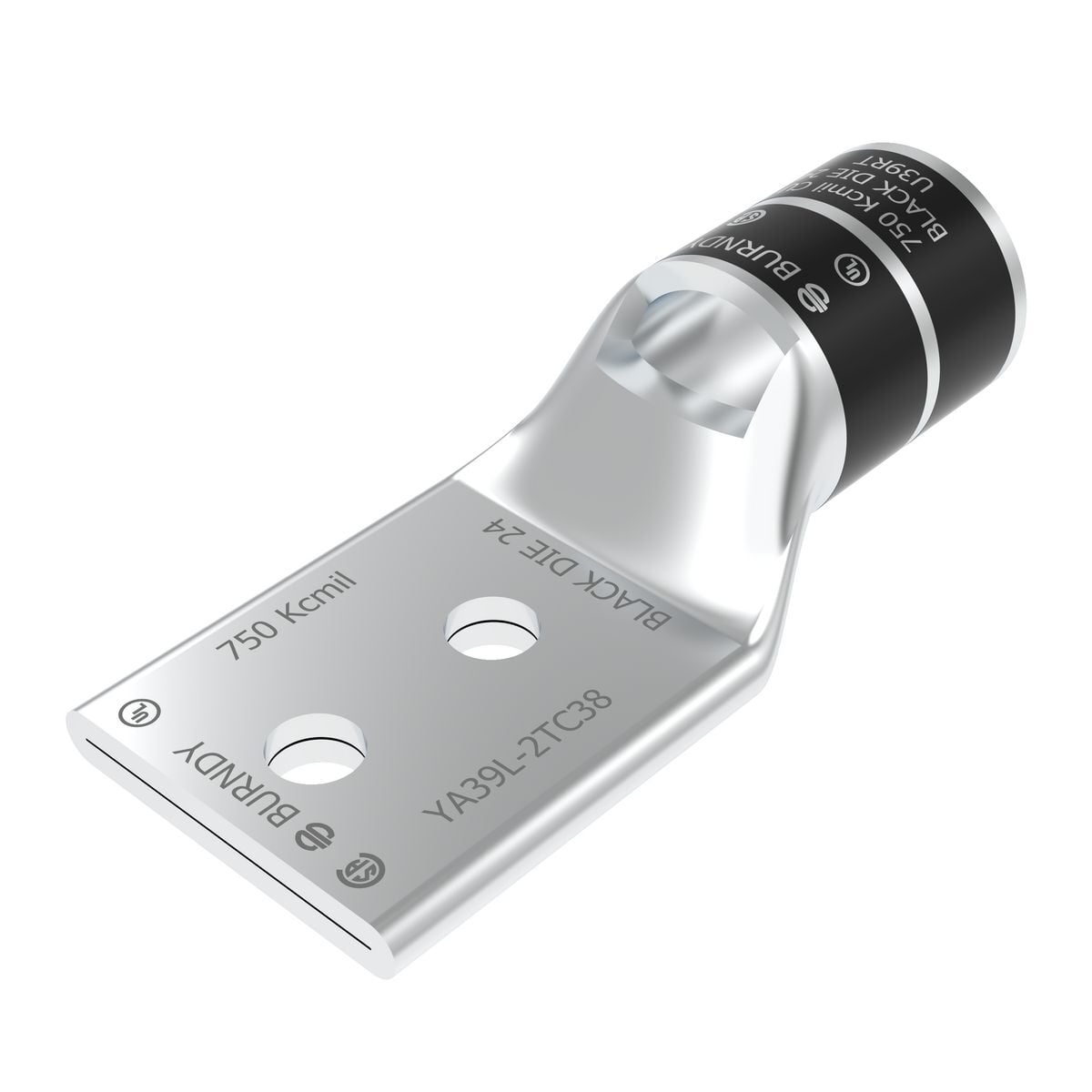

YA39L2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 750 kcmil Stranded Copper Conductor, Die Code: 24, 3/8 in Stud, Electro Plated Tin Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA39L2TC38
- UPC:
- 781810018132
- Item #:
- 44184
YA39L2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 750 kcmil Stranded Copper Conductor, Die Code: 24, 3/8 in Stud, Electro Plated Tin Copper
- MFR #:
- YA39L2TC38
- UPC:
- 781810018132
- Item #:
- 44184
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$116.25
each
Manuals and Documentation
| Catalog Number | YA39L2TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-15/16 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 24, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U39RT, P39RT Die, (2), Y46 Tool, U39RT Die With PUADP-1 Adapter, (2), Color Code: Black, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810018132 |
| GTIN | 00781810018132 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
