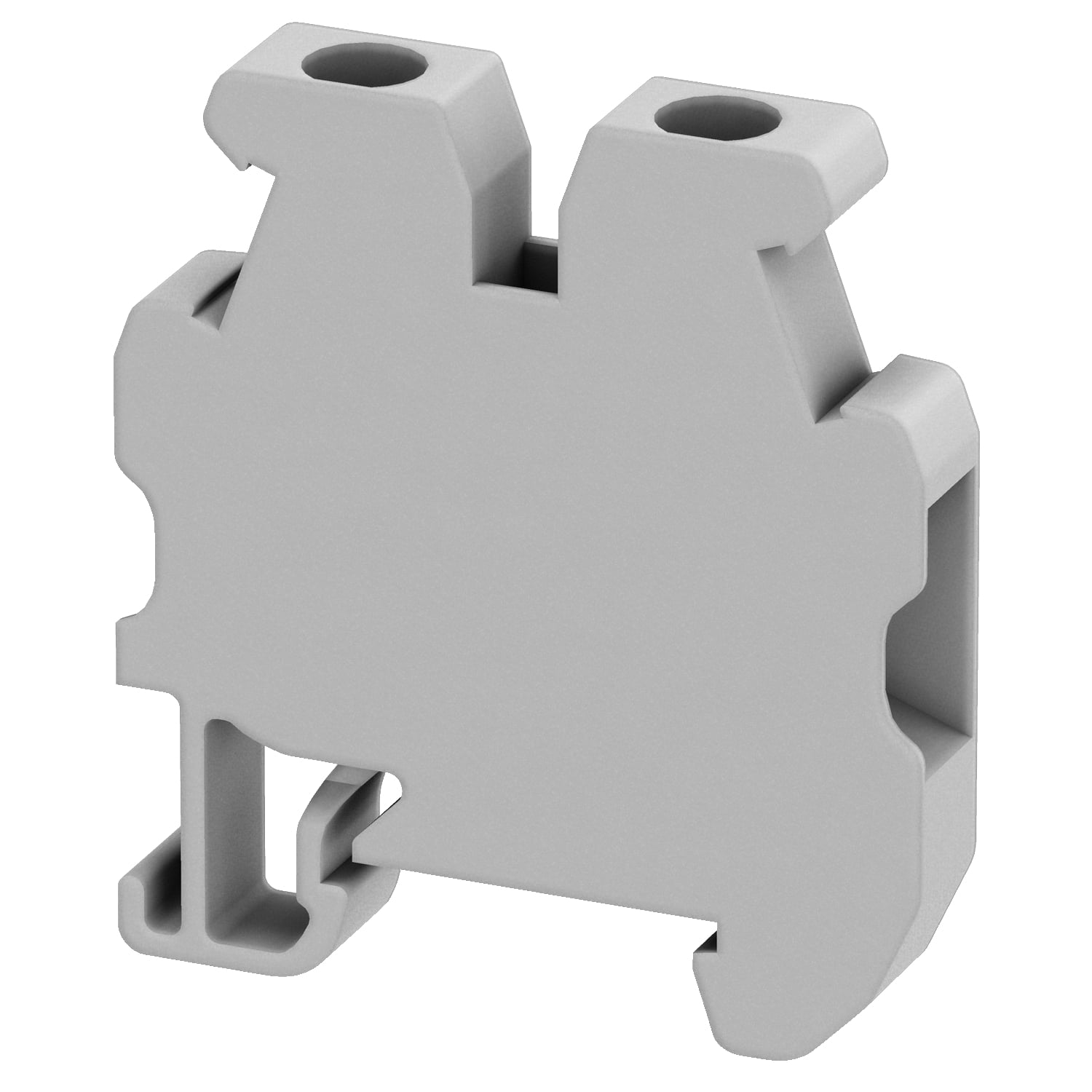

NSYTRV22M 1-Level 2-Point Mini Terminal Block, 600 V AC, 20 A, 24 to 12 AWG Wire, 1 Poles, DIN Rail Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV22M
- Item #:
- 437344
NSYTRV22M 1-Level 2-Point Mini Terminal Block, 600 V AC, 20 A, 24 to 12 AWG Wire, 1 Poles, DIN Rail Mount
- MFR #:
- NSYTRV22M
- Item #:
- 437344
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Linergy TR is terminal block for Miniature passthrough type. It belongs to linergy Miniature passthrough terminal block with 2.5 mm nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex).
Manuals and Documentation
| Catalog Number | NSYTRV22M |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Turkey |
| Made in USA | No |
| Color | Gray |
| Connection | 1 x screw terminal upstream M3);1 x screw terminal downstream M3) |
| Material | Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403764629&lang=en-us |
| GTIN | 03606480532443 |
| Item Type | Passthrough;Mini terminal block;Spacial enclosures |
