Telemecanique

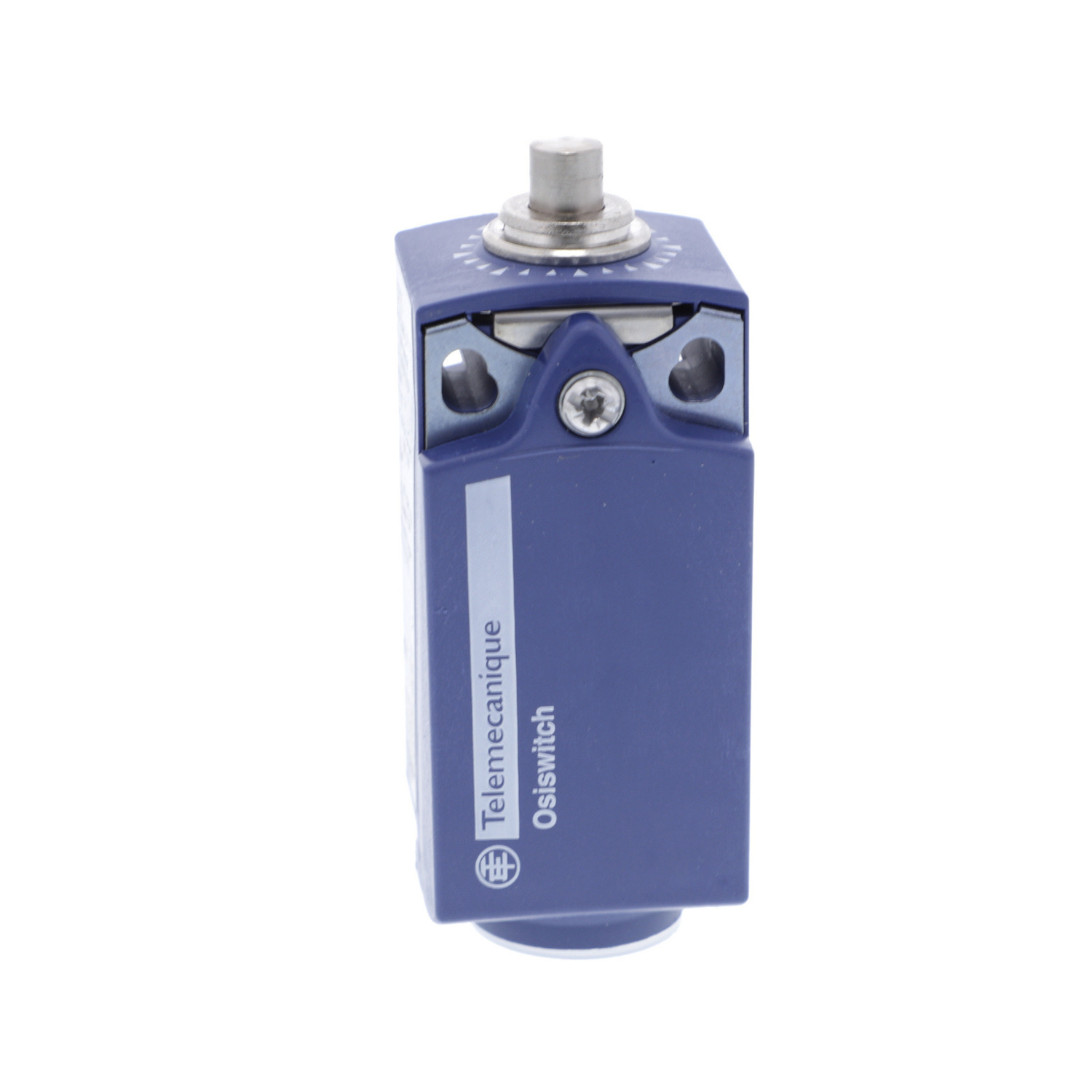

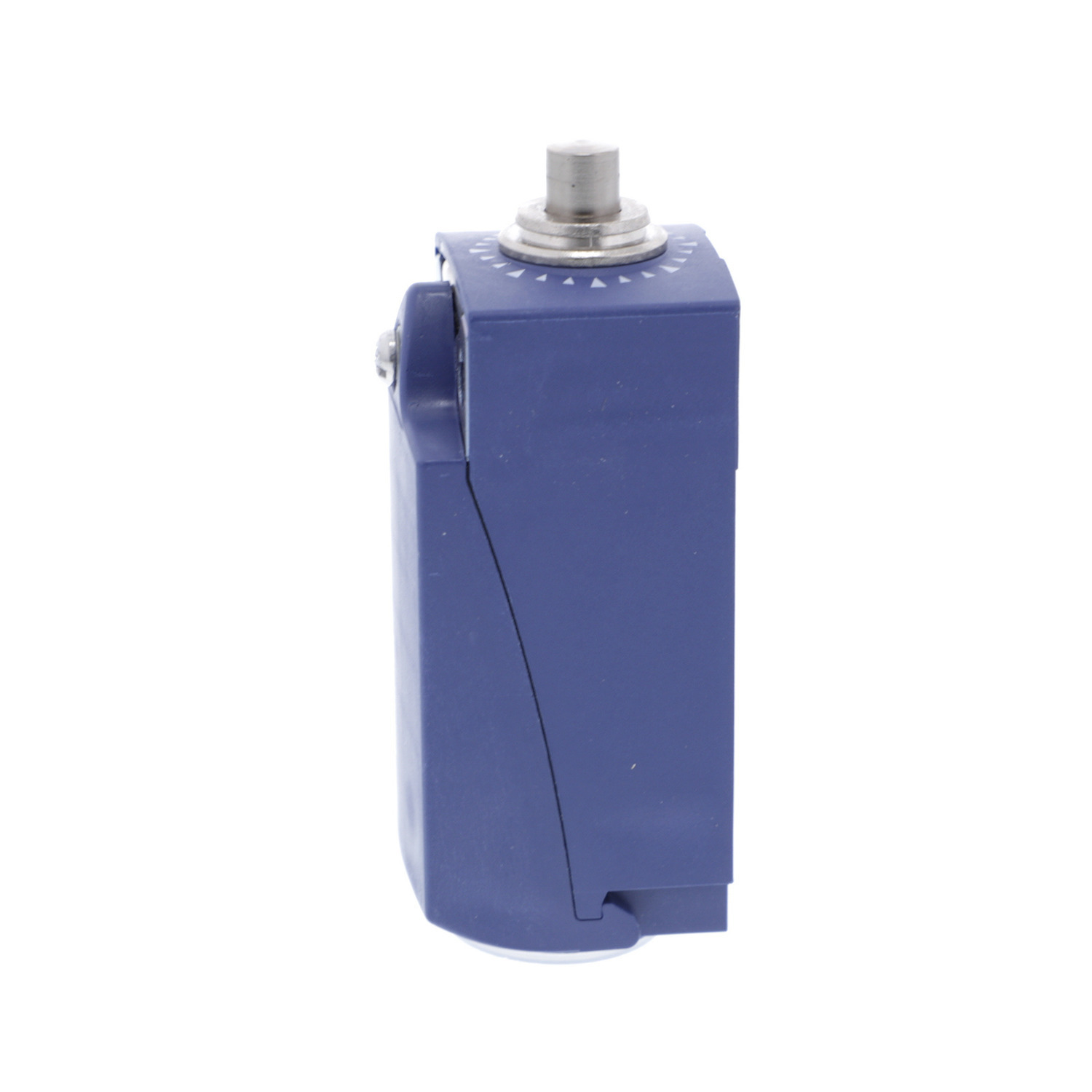

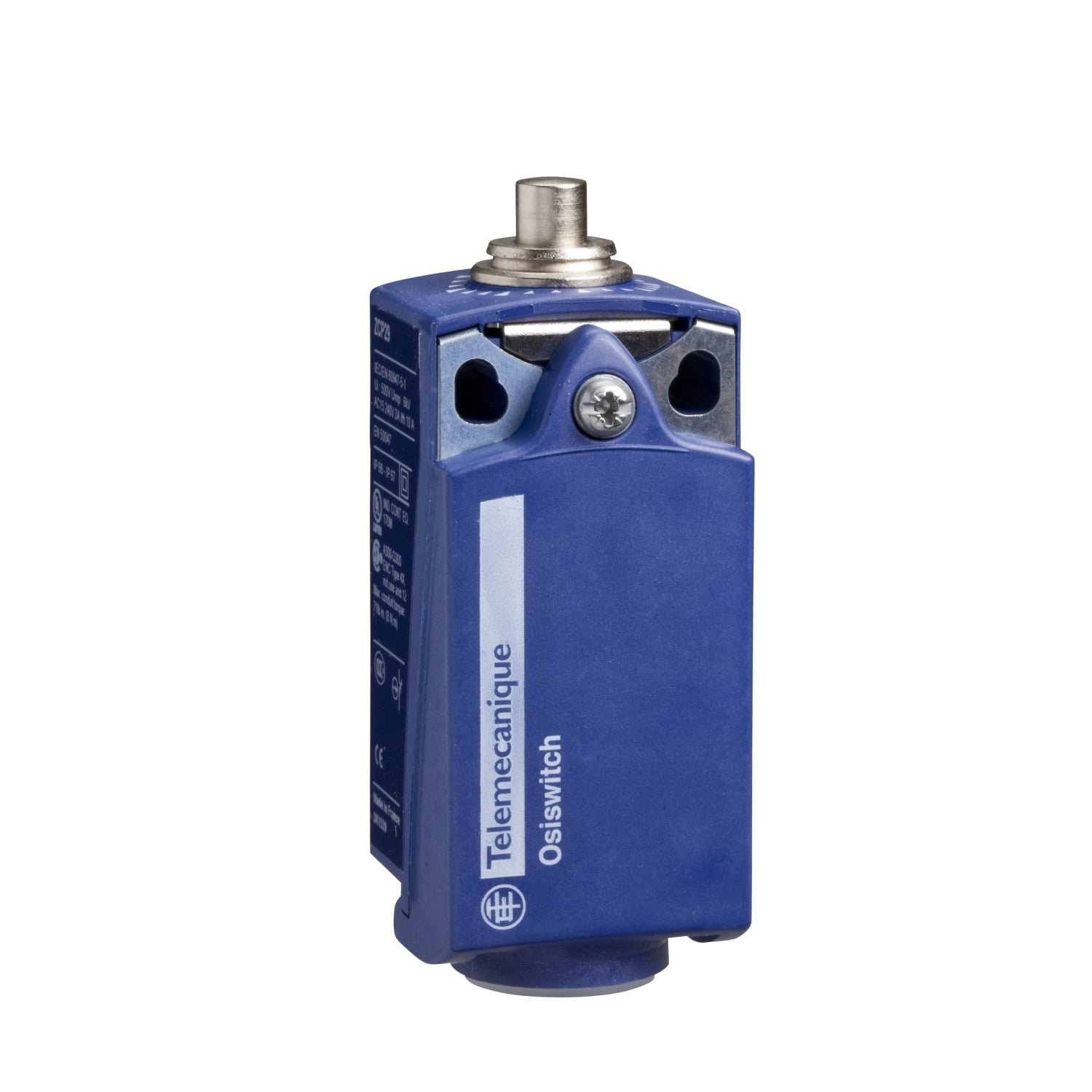

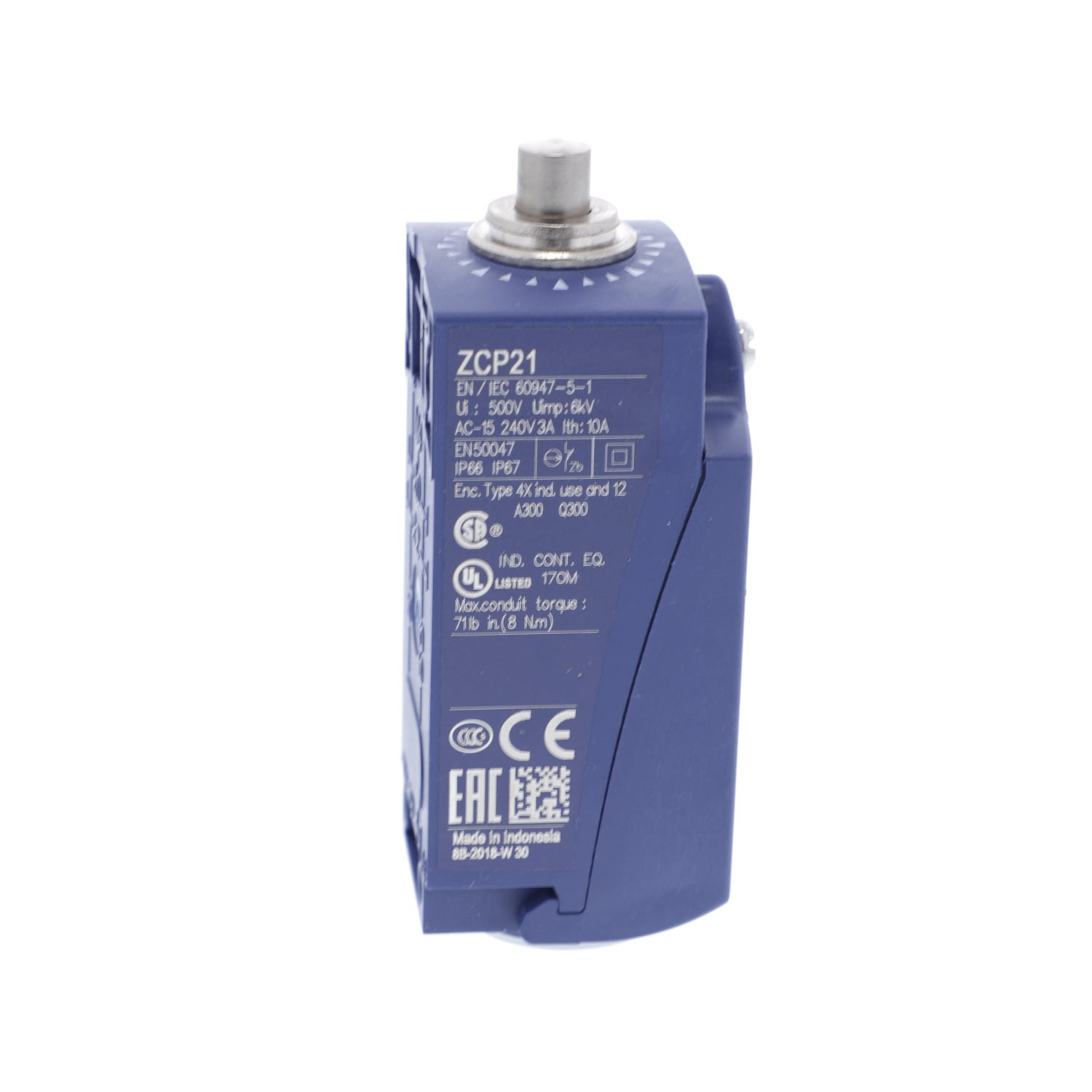

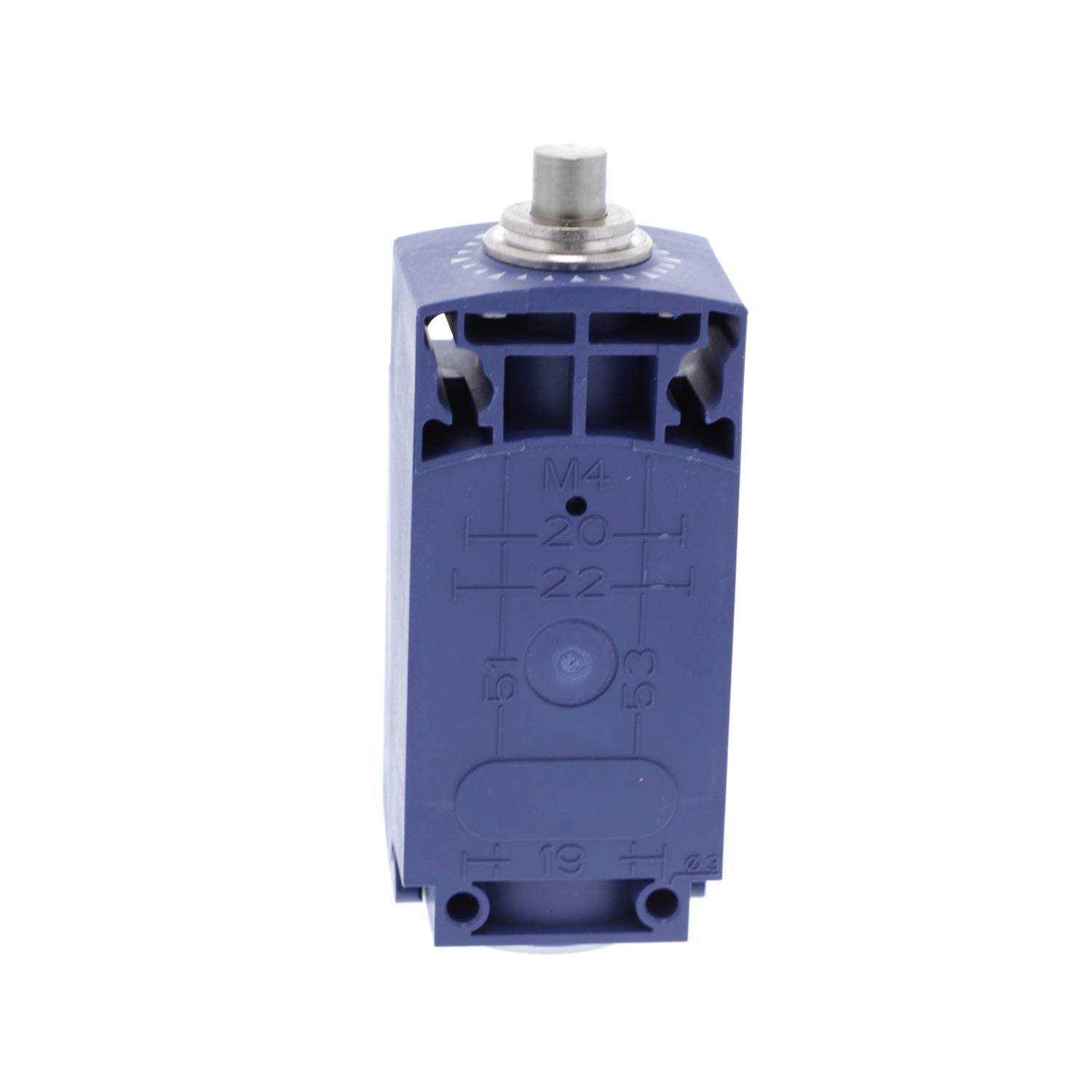

XCKP2110P16 OsiSense Compact Fixed Light Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Top Push Rod Plunger Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKP2110P16
UPC:
785901503330
Item #:
43730

Availability

Location Available Qty
Available Available to Order
$92.18 each

This XCKP compact format (CENELEC EN 50047) limit switch has a metal end plunger and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Manuals and Documentation
Catalog Number XCKP2110P16
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Vertical approach, 1 direction;Snap action;On end
Actuator Spring return plunger metal
Amperage Rating 10
Application COMPACT VARIABLE
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4/6/12/13 IP66/67
Mounting By The Body
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,EN 60947-5-1-IEC 60204-1-IEC 60947-5-1-CSA C22.2 NO 14-UL 508-EN 60204-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857130&lang=en-us
UPC 785901503330
GTIN 03389110201727
Item Type Limit switch
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
