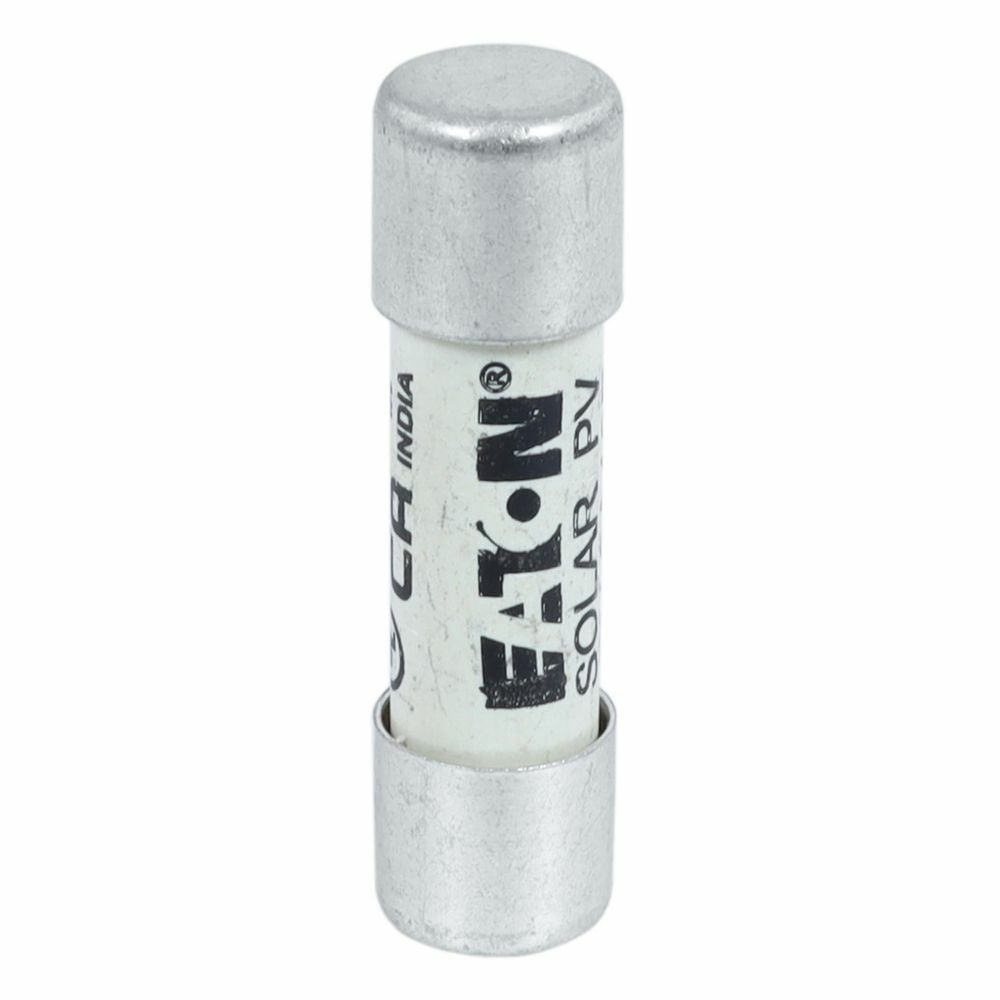

PV-8A10F High Speed Photovoltaic Fuse, 8 A, 1 kV DC, 50 kA Interrupt, Class: gPV
- MFR:
- Eaton Bussmann
- MFR #:
- PV-8A10F
- UPC:
- 051712204002
- Item #:
- 436568
PV-8A10F High Speed Photovoltaic Fuse, 8 A, 1 kV DC, 50 kA Interrupt, Class: gPV
- MFR #:
- PV-8A10F
- UPC:
- 051712204002
- Item #:
- 436568
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$93.62
each
Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
| Catalog Number | PV-8A10F |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | India |
| Made in USA | No |
| Amperage Rating | 8 |
| Application | Generation - Renewable Energy - Alternative Energy|Generation - Renewable Energy - Solar|Generation - Renewable Energy - Storage Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Ceramic |
| Special Features | Minimum interrupting rating 1.3 x In, Time constant: 1-3 ms |
| Standard | UL 2579 ,UL Listed ,IEC Rated ,CSA Certified ,CCC Marked ,CSA Certified ,UL 2579 ,UL Listed ,Clasificación IEC ,CCC Marked ,UL Listed ,IEC-Einstufung ,CCC Marked ,CSA Certified ,UL 2579 ,CSA Certified ,UL 2579 ,CCC Marked ,Zgodność z IEC ,UL Listed,CE Marked,RoHS Compliant,Compatible con RoHS,Con marca CE,CE-Kennzeichnung,RoHS-konform,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS |
| UPC | 051712204002 |
| GTIN | 00051712204002 |
| Item Type | High speed photovoltaic fuse |
| Size | 10.30 mm Diameter X 38.00 mm Length |
| Voltage Rating | 1000 Vdc |
