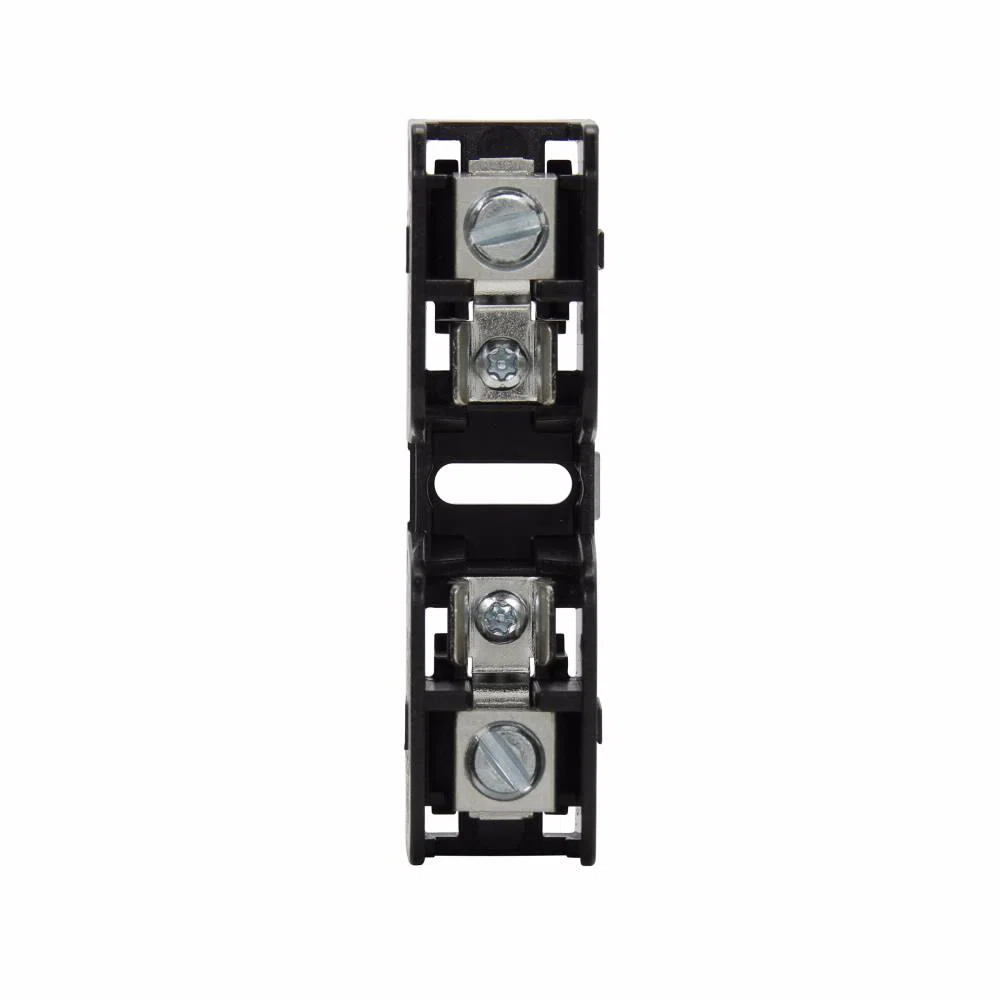

BPVM-1S Ferrule Fuse Block, 1 kV DC, 0 to 30 A, Class: gPV/PV, 1 Poles
- MFR:
- Eaton
- MFR #:
- BPVM-1S
- UPC:
- 051712516181
- Item #:
- 436348
BPVM-1S Ferrule Fuse Block, 1 kV DC, 0 to 30 A, Class: gPV/PV, 1 Poles
- MFR #:
- BPVM-1S
- UPC:
- 051712516181
- Item #:
- 436348
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$13.38
each
Bussmann series circuit protection products and services focus on downtime reduction, workplace safety and Code compliance for the industrial/MRO, OEM and construction markets. From electrical power fuses to fuse blocks and holders and engineering services, the Bussmann brand stands for protection you rely on.
Manuals and Documentation
Features
- Blocks are fully modular with a snap together design that provides tool-less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost
- Compact footprint consumes minimal panel space
- Easy circuit identification with available universal marker labels for fuse block covers
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
| Manufacturer Part Number | BPVM-1S |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712516181 |
| Country Of Origin | MX |
| Amperage Rating | 0 to 30 A |
| Dimensions | 3.7 in L x 1.3 in W x 0.8 in H |
| Mounting Type | DIN Rail/Panel |
| Series | BPVM |
| Type | Ferrule |
| Voltage Rating | 1 kV DC |
| Alternative Part Number | 13049159 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | UL Listed E348242-IZMR | CSA Component Acceptance 47235-622501 |
| Application | Alternative Energy, Photovoltaic Applications |
| Class | gPV/PV |
| Connection Type | Phillips® Slot Screw |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1-1/2 in |
| Number Of Poles | 1 |
