Polaris

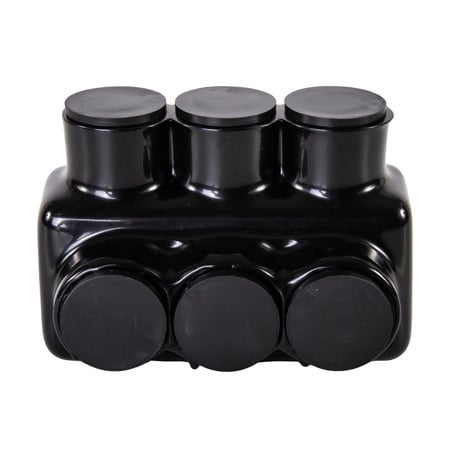

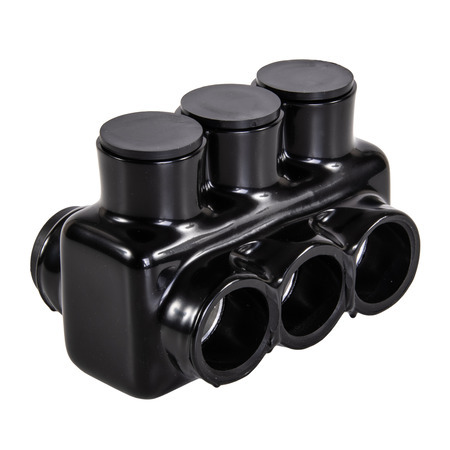

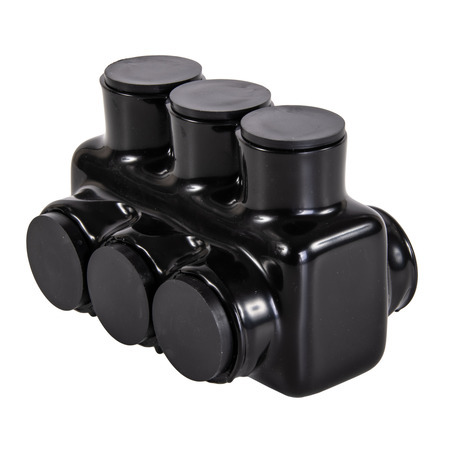

IPLD500-3 Polaris IPLD Double Sided Entry Insulated Multi-Tap Connector, 4 AWG to 500 kcmil Aluminum/Copper Conductor, Plastisol

MFR:
NSi Industries
MFR #:
IPLD500-3
UPC:
662381925015
Item #:
43386

Availability

Location Available Qty
Available Available to Order
$202.46 each

The Polaris IPLD500-3 Multi-Tap Dual-Sided Entry Connector features 3 ports sized for 500 MCM - 4 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Manuals and Documentation
Catalog Number IPLD500-3
Manufacturer NSi Industries
Brand Polaris
Country of Origin United States
Made in USA Yes
Application Wire Termination
Color Black
Finish Plastisol Insulated
Material Aluminum
Number of Conductors 3
Number of Poles 1
Special Features (3) 500 MCM-4 AWG - Dual Rated
Standard UL 486A/B
UPC 662381925015
GTIN 00662381925015
Item Type Double Sided Entry
Size L=4.010 - W=2.830 - H=2.910
Environmental Conditions 90 C
Temperature Rating 90 C
Voltage Rating 600 V
Wire Size 500 MCM-4 AWG
