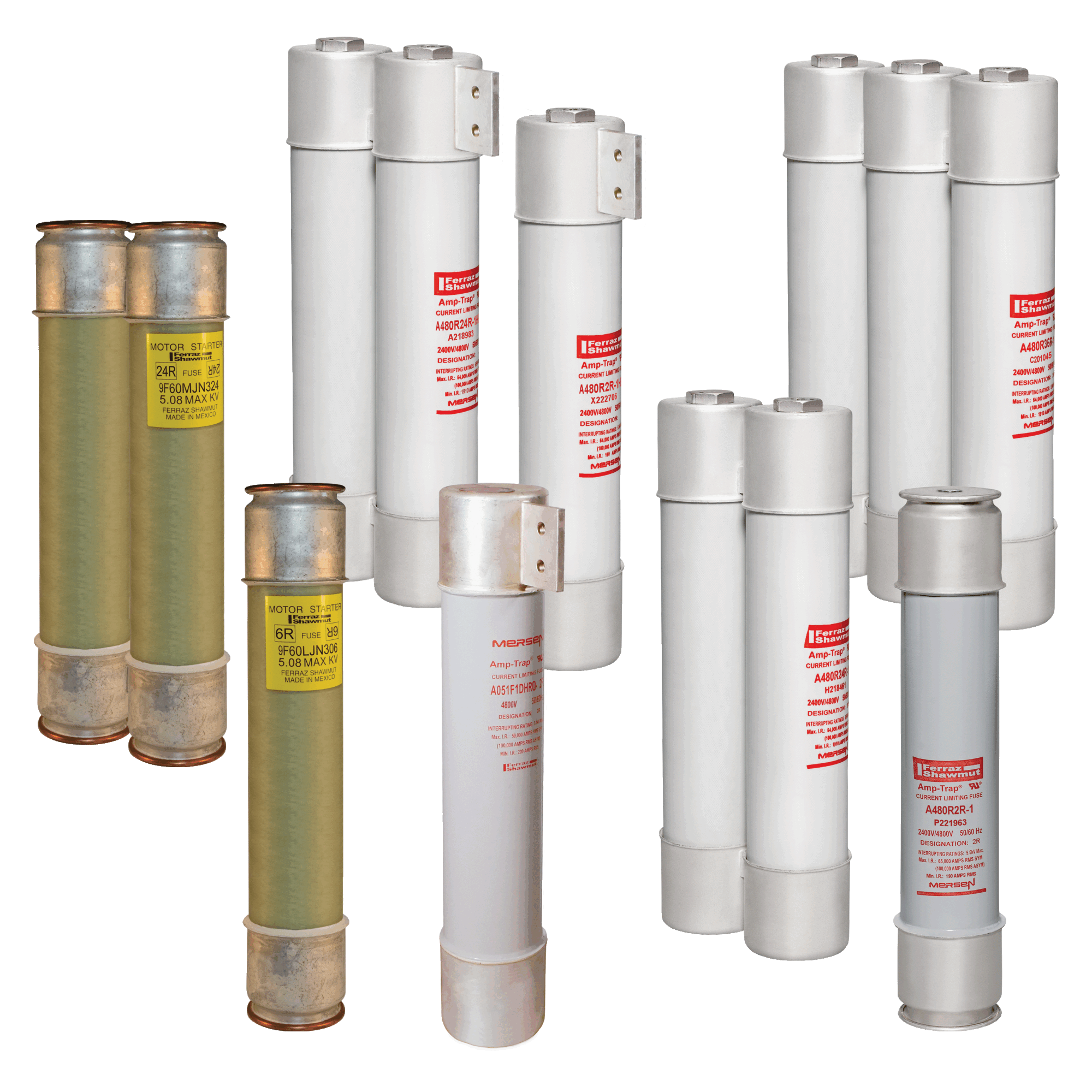

R-Rated MV Fuse 5080VAC 9R Mounting: Ferrule Style: LJD Visual Indicator
MFR: Mersen
MFR #: 9F60LJD509
UPC: 782001396213
Item #: 431744
R-Rated MV Fuse 5080VAC 9R Mounting: Ferrule Style: LJD Visual Indicator
MFR #: 9F60LJD509
UPC: 782001396213
Item #: 431744
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Back-Up R-Rated Medium Voltage Fuse 5080VAC 9R Mounting: Ferrule Style: LJD Visual Indicator Amp-Trap
Manuals and Documentation
- Catalog Number
- 9F60LJD509
- Manufacturer
- Mersen
- Brand
- Mersen
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 9
- Application
- Short circuit protection of medium voltage motors and motor controllers
- Connection
- Ferrule
- Interrupt Rating
- 50 KA
- Material
- clips
- Mounting
- Clip
- Response Time
- R-Rated
- Special Features
- The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Hookeye for non load-break isolation by hookstick: On the 4.8kV an optional hookeye mounted in the factory is available On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612 Blown-fuse indicator to give positive identification of open fuse Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60: 0.125 lb tripped force – 0.20 Inch
- Standard
- Amp-Trap: UL File E93367 9F60: UL File E191980
- UPC
- 782001396213
- GTIN
- 00782001396213
- Item Type
- Back-Up R-Rated Ferrule Mount Fuses for Motor Protection
- Size
- 15.97 x 3
- Type of Indicators
- Visual Indicator
- Voltage Rating
- 5080
