Appleton

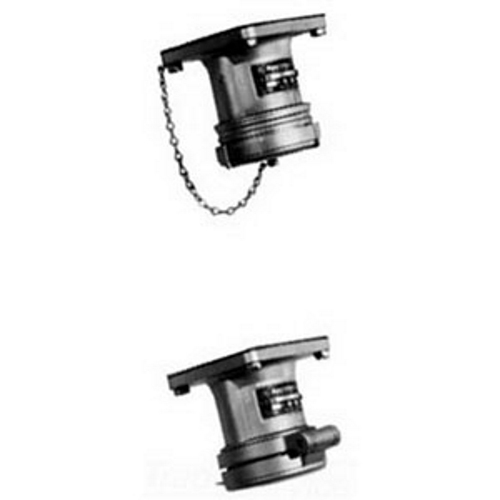

Powertite; Reverse Service Pin and Sleeve Receptacle; 60 Amp, 600 Volt AC, 250 Volt DC, 3-Pole, 3-Wire

MFR:
Appleton Electric
MFR #:
ADR6033RS
UPC:
781381710893
Item #:
427845

Powertite Grounding Style 1 Receptacle, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Co

Manuals and Documentation
Catalog Number ADR6033RS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ACP6033BC Metallic Clamping Ring Plug
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3, 3R, 4, 4X
Number of Poles 3
Number of Wires 3
Phase 3
Special Features For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381710893
GTIN 00781381710893
Item Type Grounding Style 1 Receptacle
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
