Telemecanique

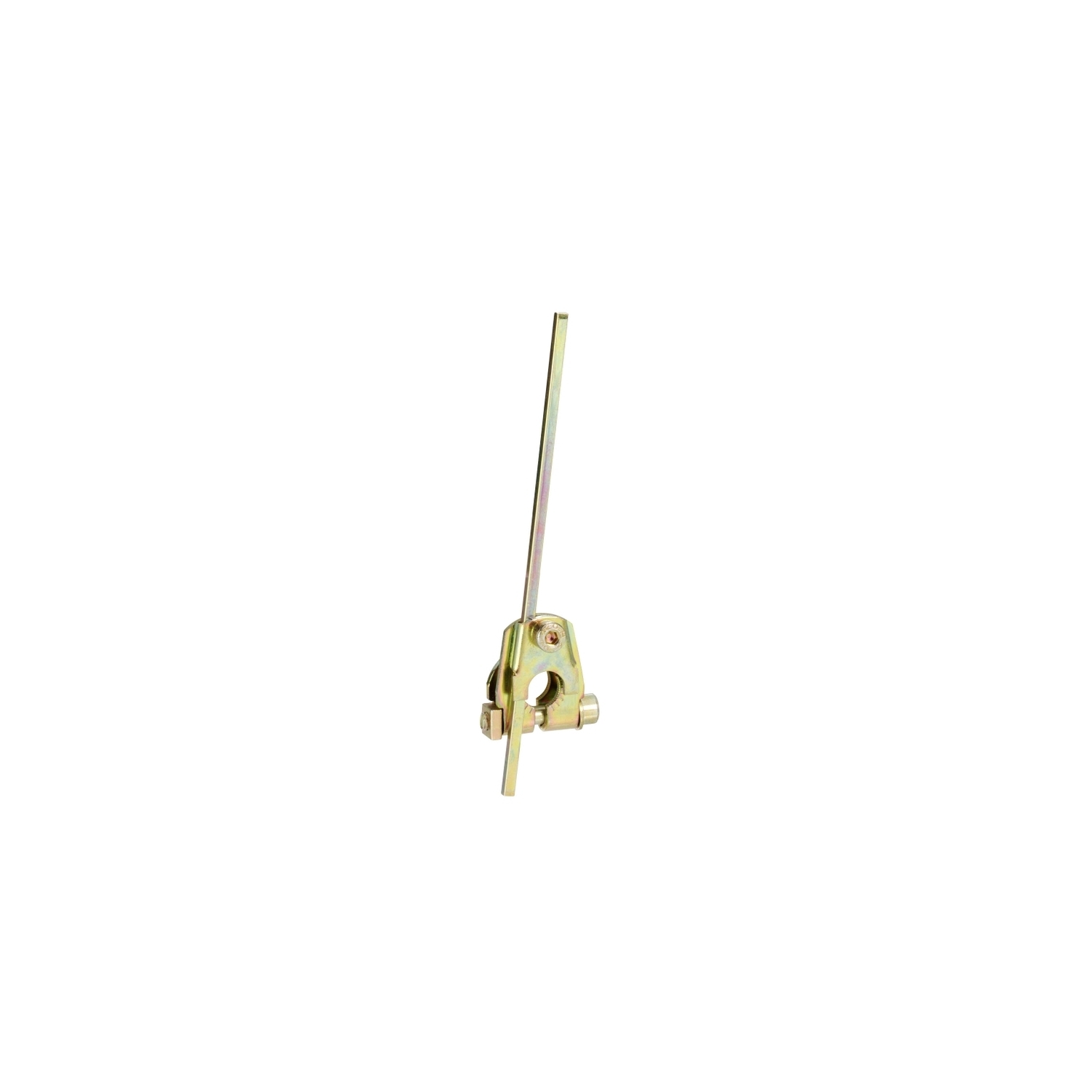

ZC2JY51 OsiSense Rotary Standard Square Rod Limit Switch Lever, Steel Roller

MFR:
Telemecanique Sensors
MFR #:
ZC2JY51
UPC:
785901264279
Item #:
42774

Availability

Location Available Qty
Available Available to Order
$48.22 each

This product is part of the XC Special range, an offer of limit switches. This limit switch lever provides switch actuation by any moving part without positive opening operation. The metal spring return rod lever supports lateral approach. The movement of operating head is rotary. The rotary head switch lever is made of metal. It is compatible with XC2J series limit switches. Its associated heads are ZC2JE04, ZC2JE03, ZC2JE07, ZC2JE02, ZC2JE05, ZC2JE01 and ZC2JE06. Special format limit switches for severe environments.

Manuals and Documentation
Catalog Number ZC2JY51
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Switzerland
Made in USA No
Action Lateral approach;By any moving part
Actuator Rod lever spring return metal square rod 3 mm, L = 125 mm)
Application XC2J
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=878994&lang=en-us
UPC 785901264279
GTIN 03389110323504
Item Type Limit switch lever
Environmental Conditions HIGH TEMPERATURE-LOW TEMPERATURE-STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT--40-70 A Degrees C LOW TEMPERATURE-10-120 A Degrees C HIGH TEMPERATURE
