Discontinued
Hubbell Wiring Device - Kellems

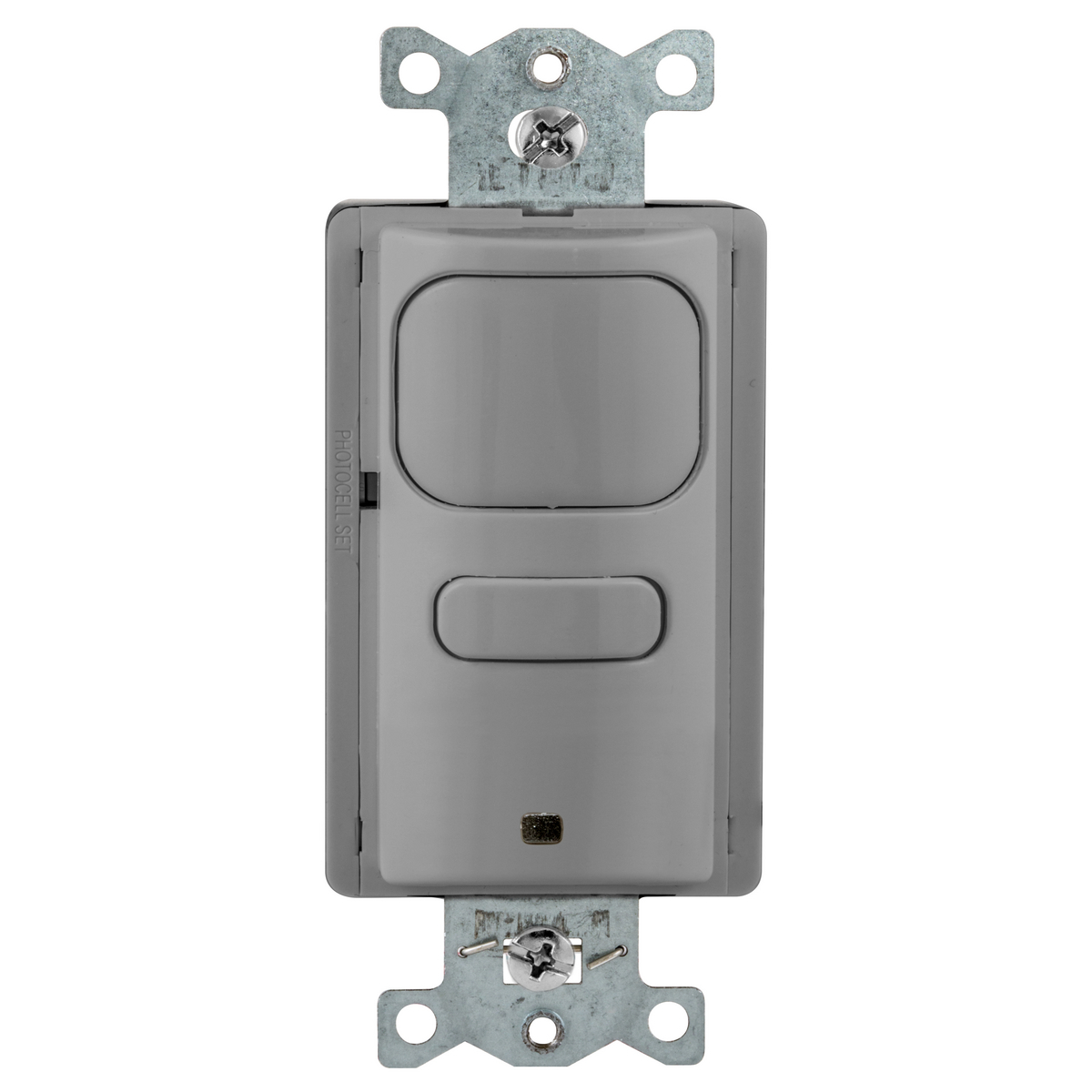

AP2000GY1 1-Button 1-Circuit 1 Relay Wall Switch Sensor With Photocell, 120 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage

MFR:
Hubbell Wiring Device-Kellems
MFR #:
AP2000GY1
UPC:
783585413471
Item #:
426700

Availability

Location Available Qty
Available Available to Order

Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.

Manuals and Documentation
Catalog Number AP2000GY1
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Application Single Circuit
Color Gray
Connector Terminal Screws
Mounting Screw
Sensing Range 1000 Square Feet
Sensor Passive Infrared
Special Features 1 Button
Standard UL/CSA
Supply Voltage 120
UPC 783585413471
GTIN 00783585413471
Item Type Manual/Auto
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Operating Temperature 0 Degrees C to 40 Degrees C
