Discontinued

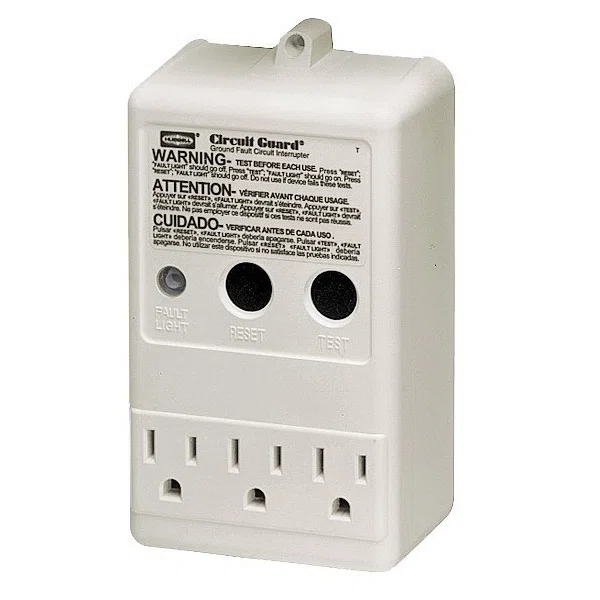

GFP315A 1-Phase 2-Pole 3-Wire Auto-Set Decorator Duplex Plug-In Standard Portable GFCI Tester, 120 VAC, 15 A, NEMA 5-15R Receptacle, NEMA 5-15P Plug
- MFR:
- Hubbell
- MFR #:
- GFP315A
- UPC:
- 783585829494
- Item #:
- 42636
Discontinued
GFP315A 1-Phase 2-Pole 3-Wire Auto-Set Decorator Duplex Plug-In Standard Portable GFCI Tester, 120 VAC, 15 A, NEMA 5-15R Receptacle, NEMA 5-15P Plug
- MFR #:
- GFP315A
- UPC:
- 783585829494
- Item #:
- 42636
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Hubbell Wiring Device-Kellems Circuit Guard®, GFP315A, Portable GFCI Tester, 1-Phase 2-Pole 3-Wire Auto-Set Decorator Duplex Plug-In Standard, 120 V AC, 15 A, 1875 W Power, NEMA 5-15R Receptacle, NEMA 5-15P Plug, 3 Outlets, -30 to 150 deg F, Thermoplastic Jacket
Manuals and Documentation
Features
- ABS covers
- 125 VAC, 10 to 15% voltage range
- 4 to 6 mA trip level, 0.025 s trip time
- 14 to 12 AWG wire
- 3-outlet plug-in mounted
- 0.95 maximum humidity
- For straight blade GFCI receptacles
| Manufacturer Part Number | GFP315A |
| Stripped Manufacturer Part Number | GFP315A |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585829494 |
| EAN | 0783585829494 |
| Country Of Origin | CN |
| Amperage Rating | 15 A |
| Jacket Material | Thermoplastic |
| Temperature Rating | -30 to 150 deg F |
| Type | 1-Phase 2-Pole 3-Wire Auto-Set Decorator Duplex Plug-In Standard |
| Voltage Rating | 120 V AC |
| Number Of Outlets | 3 |
| Alternative Part Number | 8956870 | 11831574 |
| Manufacturer Item Status | Discontinued |
| Country | USA/Canada |
| Standards Approvals | UL 498/943 Class A File No. E41978 | CEC/CSA/NEC Certified | NEMA WD1/WD5 | CEC Approved |
| Application | Indoor Dry Environment |
| Plug Type | NEMA 5-15P |
| Power Rating | 1875 |
| Receptacle | NEMA 5-15R |
