Telemecanique

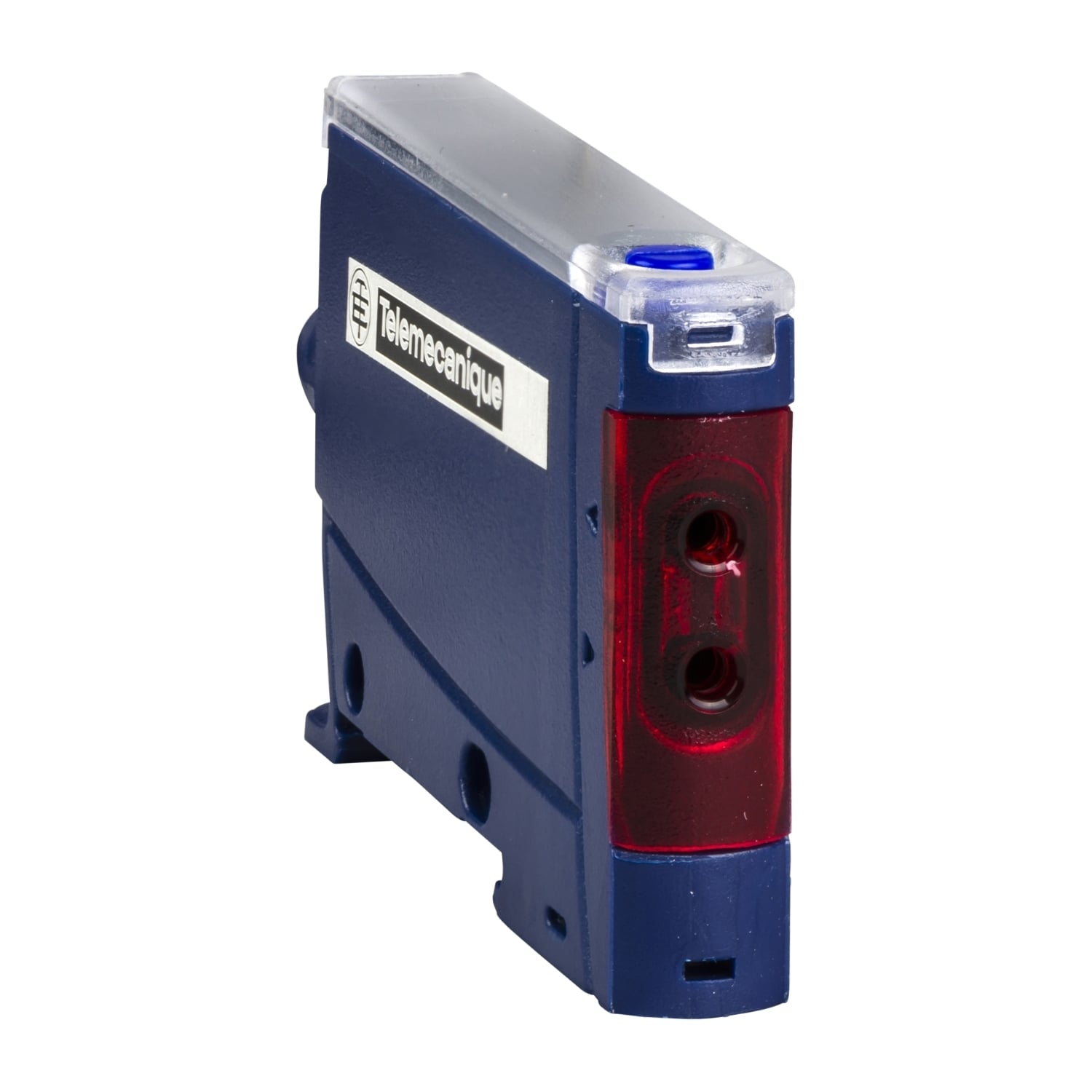

XUDA2PSML2 OsiSense XU 3-Wire Fiber Design Photoelectric Sensor With Fine Adjustment, 4-Digit Screen, Photoelectric Sensing Beam, 120 ms Response, PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUDA2PSML2
UPC:
785901472407
Item #:
426299

Availability

Location Available Qty
Available Available to Order
$461.39 each

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUD fibre design. The sensitivity adjustment setting-up with teach mode. It supports 1 normally opened or 1 normally closed programmable PNP solid state discrete output. It is furnished with 2m cable for electrical connection and 2 LEDs for stability and output state. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of =50mA and a switching frequency of =5kHz, =1kHz. It is an IP64 and IP65 rated product. The enclosure is made of PBT with PMMA lens. Its dimensions are 40mm (Width) x 10mm (Depth) x 65mm (Height) and weighs 0.04kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus.

Manuals and Documentation
Catalog Number XUDA2PSML2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application APPLICATION, ASSEMBLY
Connection Cable
Enclosure IP64 IEC 529 OPTIC FIBER Ø 1 MMIP65 IEC 529 OPTIC FIBER Ø 2 MM PBT
Operating Cycles <= 5 kHz;<= 1 kHz
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Response Time < 120 MS
Special Features Stability 1 LED green);output state 1 LED yellow)
Standard CE-CULUS,IP64 OPTIC FIBER Ø 1 MM IEC 529-IP65 OPTIC FIBER Ø 2 MM IEC 529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873316&lang=en-us
UPC 785901472407
GTIN 03389110160178
Item Type Application assembly;Fiber design;Photo-electric sensor
Size 0.39
Operating Temperature -10...55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
