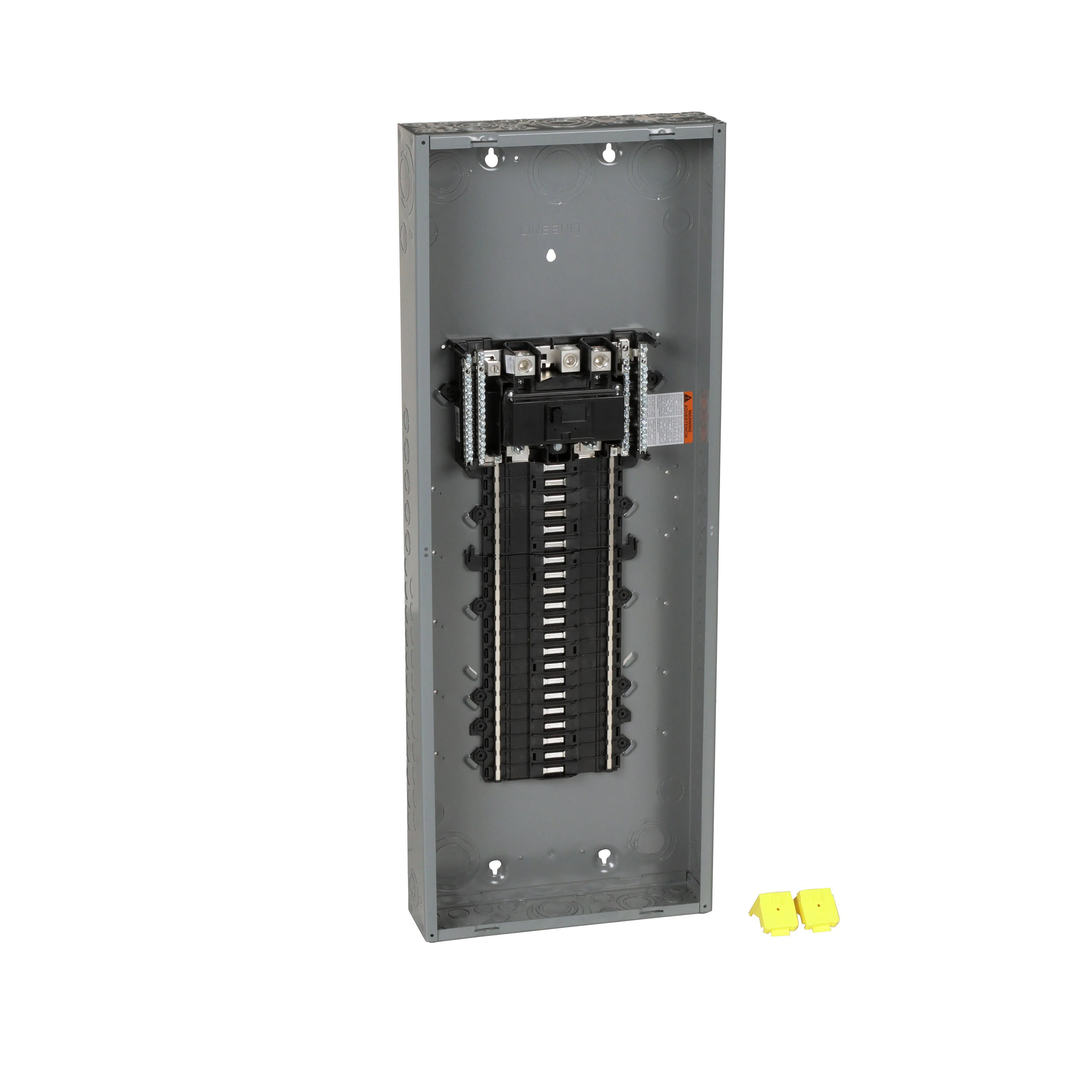

QO142M200PC 1-Phase Convertible Neutral Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt
- MFR:
- Schneider Electric
- MFR #:
- QO142M200PC
- UPC:
- 785901986898
- Item #:
- 423392
QO142M200PC 1-Phase Convertible Neutral Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt
- MFR #:
- QO142M200PC
- UPC:
- 785901986898
- Item #:
- 423392
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 42 spaces and 52 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated. QO load center is UL Listed.
Manuals and Documentation
Features
- Provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Faster installation using PoN breakers that connect directly
- 50% more terminations for clutter-free wiring
| Manufacturer Part Number | QO142M200PC |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901986898 |
| EAN | 0785901986898 |
| Country Of Origin | US |
| Amperage Rating | 200 A |
| Dimensions | 14.25 in W x 3.75 in D x 37.98 in H |
| Enclosure Type | NEMA 1 |
| Housing Material | Sheet Steel |
| Mounting Type | Plug-On |
| Type | 1-Phase Convertible Neutral |
| Voltage Rating | 120/240 V AC |
| Alternative Part Number | 12945551 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | Limited |
| Standards Approvals | BAA Compliant | UL Listed | NOM Certified | PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
| Application | For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people |
| Breaker Mounting | Panel |
| Breaker Type | QO |
| Enclosure Box Size | 11 |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 22 kA |
| Number Of Circuits | 42 |
| Number Of Poles | 1 |
| Number Of Spaces | 42 |
| Wire Size | 4 AWG to 250 kcmil Aluminum/Copper |
| Wiring Configuration | 3-Wire |
