Features

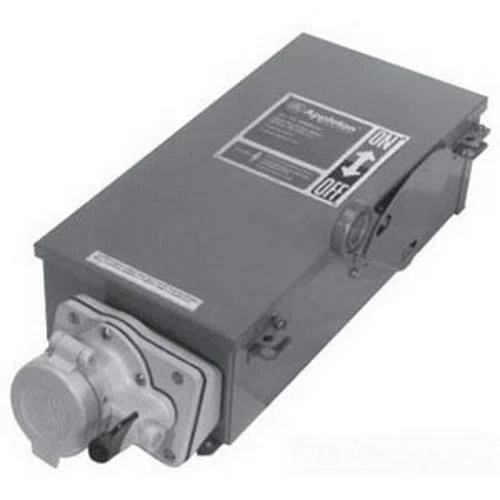

• For use where an interlocked disconnect switch is desired to control a Powertite™ receptacle and insertion or removal of plug
• Spring door standard and screw cap provided at no additional cost to meet NEMA 3/3R/4/4X applications
• Insulated, dual channel polymer operating handle clearly indicates the switch being energized
• Utilizes style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring
• Removable hinged cover allows for ease of installation and maintece
• Class R fusing standard on WSRD fusible units and J type on WSR
• Short circuit withstand rated to 200000 rms symmetrical A (class R and J fusing)
• Stainless steel captive spring out quad-lead cover bolts for easy access and corrosion resistance
• Conduit entry is drilled and tapped to 1-1/2 in
• Stainless steel key-hole mounting feet for easy installation
• Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
• Cover can be padlocked closed
• Operating handle can be locked in the OFF or ON position
• Dead design receptacle is not energized until plug is fully inserted and switch is engaged
• Without viewing window
