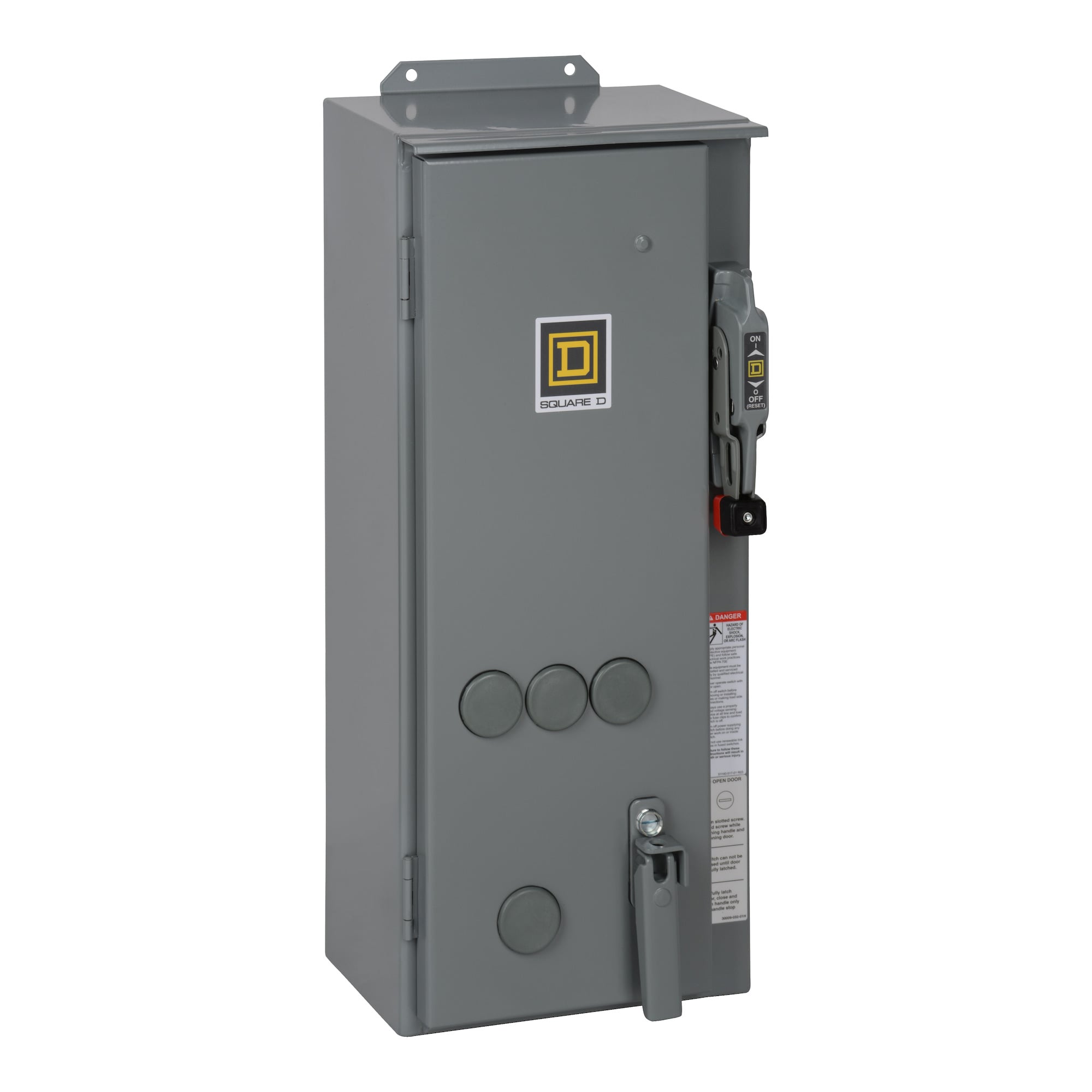

8538SCA24V81F4T Type S Combination Magnetic Starter With Fusible Disconnect Switch, 480/120 VAC at 60 Hz Coil, Non-Reversing Action, 3 Poles, NEMA 12
- MFR:
- Schneider Electric
- MFR #:
- 8538SCA24V81F4T
- UPC:
- 785901045984
- Item #:
- 422644
8538SCA24V81F4T Type S Combination Magnetic Starter With Fusible Disconnect Switch, 480/120 VAC at 60 Hz Coil, Non-Reversing Action, 3 Poles, NEMA 12
- MFR #:
- 8538SCA24V81F4T
- UPC:
- 785901045984
- Item #:
- 422644
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,587.02
each
STARTER MOTOR CONTROL <1000vac>
Manuals and Documentation
| Catalog Number | 8538SCA24V81F4T |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS - DISCONNECT AND STARTER IN ONE PACKAGE |
| Connection | BOX LUG |
| Number of Poles | 3 |
| Power Supply | PRIMARY: 480VAC@60HZ - SECONDARY: 120VAC@60HZ |
| Reset Type | THERMAL - MELTING ALLOY |
| Special Features | FUSIBLE DISCONNECT |
| Standard | UL LISTED - CSA CERTIFIED |
| UPC | 785901045984 |
| GTIN | 00785901045984 |
| Item Type | S |
| Size | 1 |
| Voltage Rating | 600 VAC |
