Telemecanique

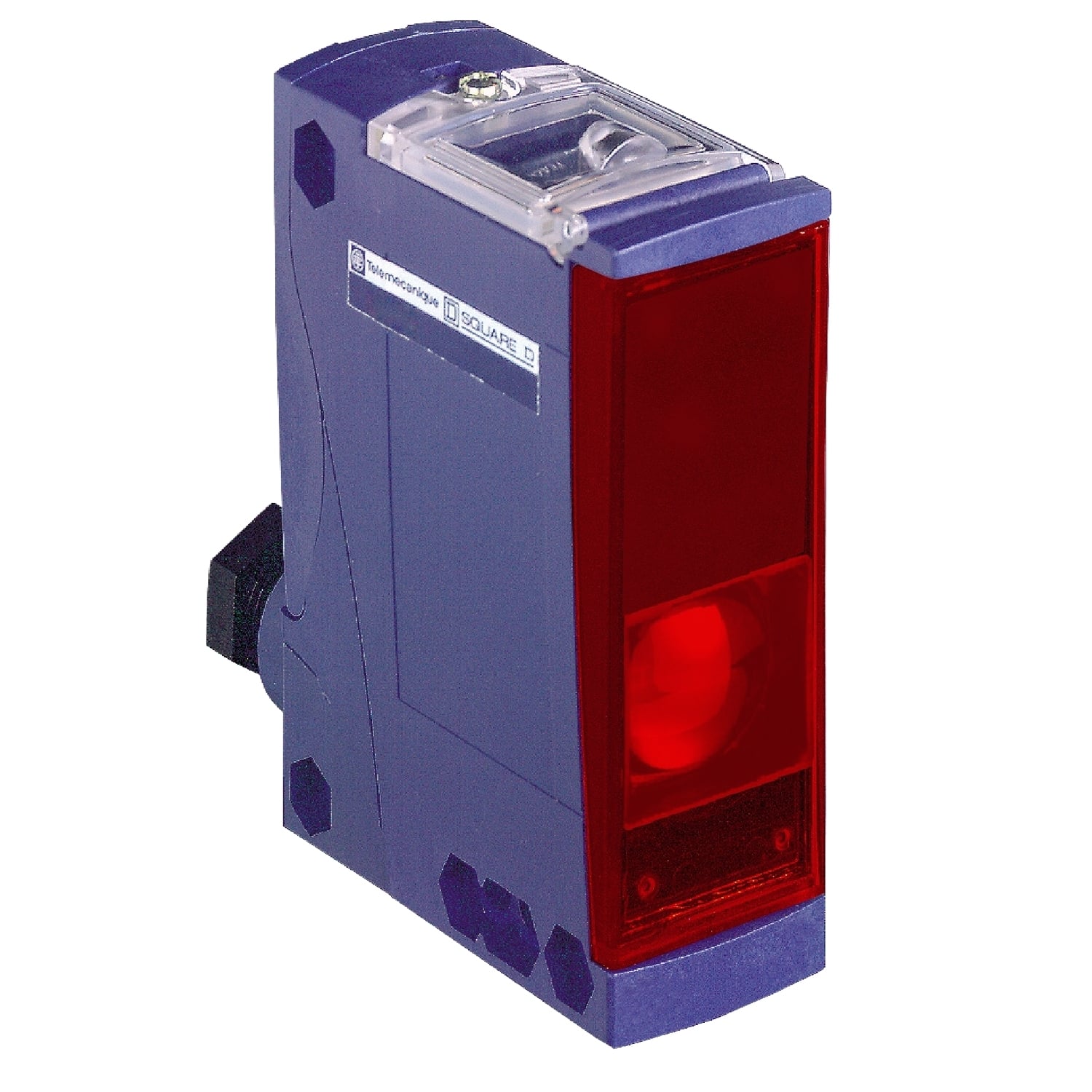

XUX0AKSAT16T XU Series Compact Multi-Mode Photo Electric Sensor, 196.85 ft, Through Beam Sensing Beam, <2 ms Response

MFR:
Telemecanique Sensors
MFR #:
XUX0AKSAT16T
UPC:
785901582359
Item #:
422582

Availability

Location Available Qty
Available Available to Order
$180.16 each

This compact design single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric emitter has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUX0AKSAT16T
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connection Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Operating Cycles <= 250 Hz
Sensing Range 40-40 M THRU BEAM NEED A RECEIVER,> 98.43 FT (30 M)
Special Features 1 LED green)supply on
Standard CSA-CE-UL,IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876148&lang=en-us
UPC 785901582359
GTIN 03389110168051
Item Type General purpose multimode;Thru beam;Compact 92 x 71;Photo-electric sensor transmitter
Size 3.03
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
