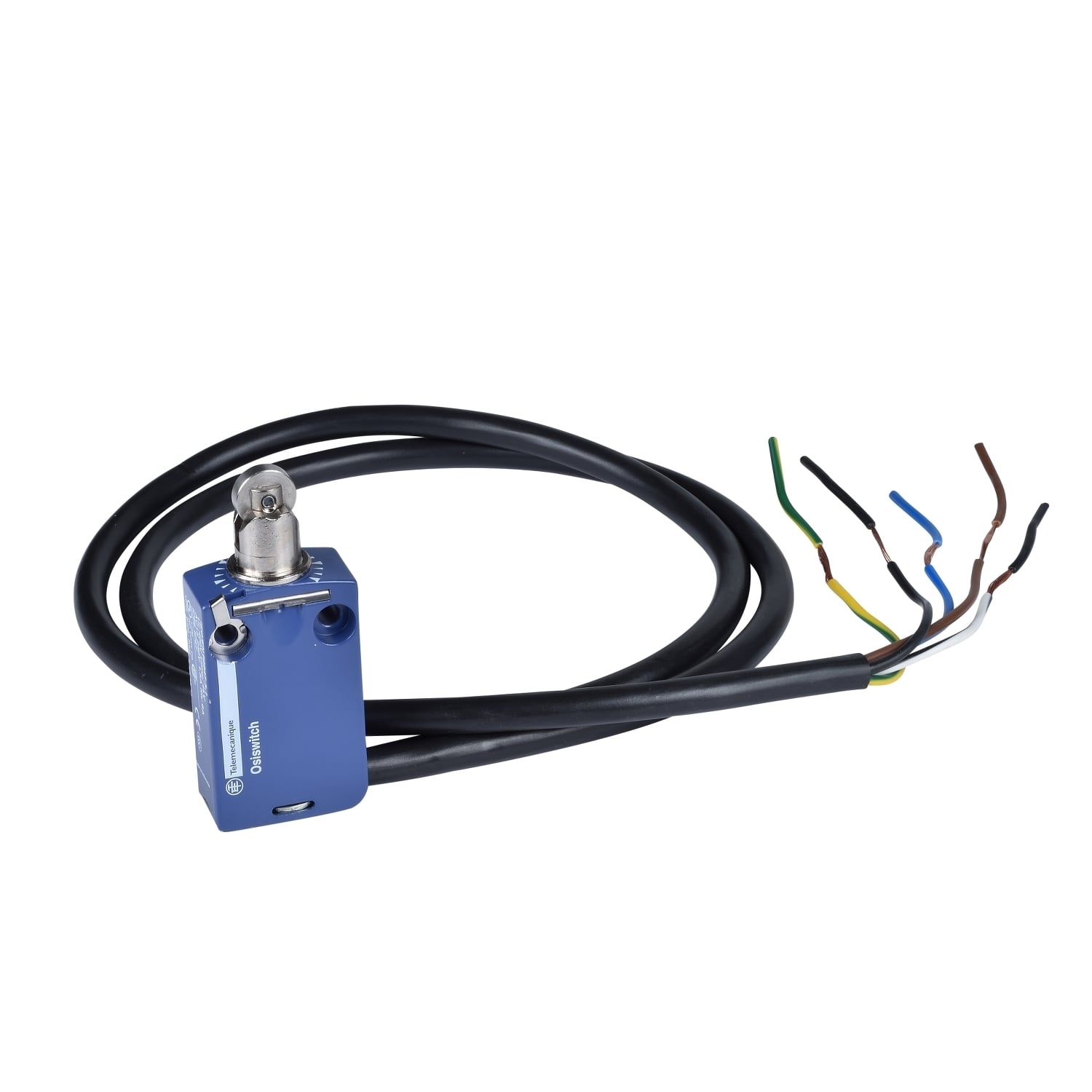

XCMD2102L7 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 5 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD2102L7
- UPC:
- 785901269496
- Item #:
- 420421
XCMD2102L7 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 5 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCMD2102L7
- UPC:
- 785901269496
- Item #:
- 420421
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$136.27
each
limit switch XCMD - steel roller plunger - 1NC+1NO - snap - 7 m
Manuals and Documentation
| Catalog Number | XCMD2102L7 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Snap action;By 30 Degrees cam |
| Actuator | Linear;Spring return roller plunger metal;Lateral approach, 2 directions |
| Connection | Removable cable connector |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Special Features | IK06 CONFORMING TO EN 50102,IP68 CONFORMING TO IEC 60529-IP66 CONFORMING TO IEC 60529-IP67 CONFORMING TO IEC 60529,METAL,REMOVABLE CABLE CONNECTOR |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL 508-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1,UL-CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857666&lang=en-us |
| UPC | 785901269496 |
| GTIN | 03389110301175 |
| Item Type | Limit switch |
| Size | 0.63 |
| Operating Temperature | -25-70 A Degrees C |
