Discontinued

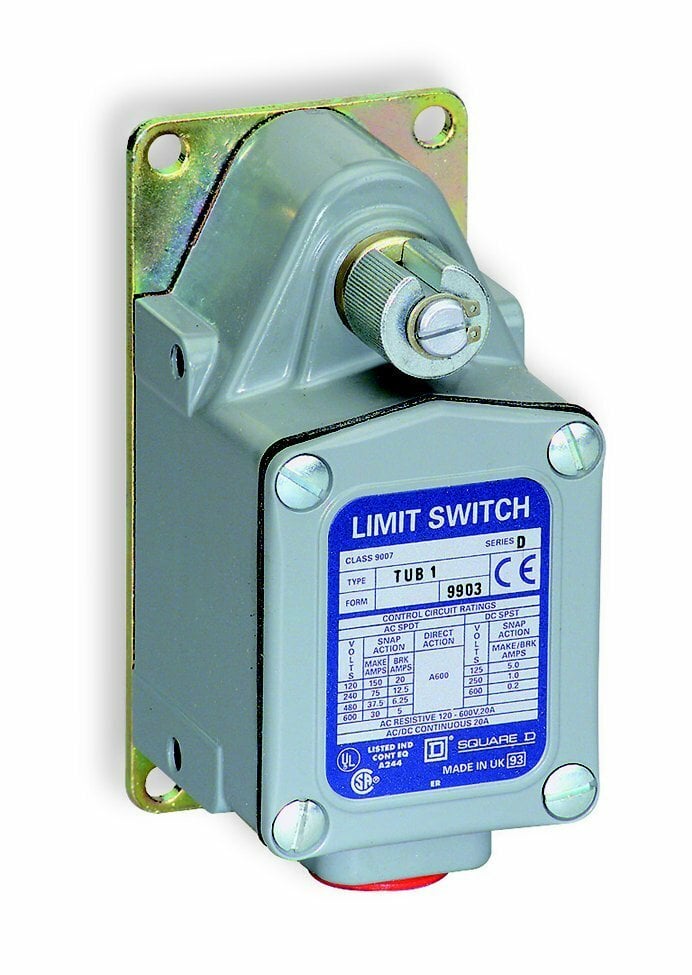

9007TUB6 Severe Duty Mill Limit Switch, 600 VAC, 30 A, Lever Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007TUB6
- UPC:
- 785901320999
- Item #:
- 420367
Discontinued
9007TUB6 Severe Duty Mill Limit Switch, 600 VAC, 30 A, Lever Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Poles
- MFR #:
- 9007TUB6
- UPC:
- 785901320999
- Item #:
- 420367
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$747.53
each
LIMIT SWITCH 600VAC 30AMP T +OPTIONS
| Catalog Number | 9007TUB6 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | CCW-FROM RIGHT,LATERAL APPROACH,SNAP ACTION |
| Actuator | SPRING RETURN WITHOUT OPERATING LEVER |
| Amperage Rating | 20 |
| Application | UNIVERSAL MILL SWITCH |
| Connection | SCREW-CLAMP TERMINALS AWG 22...AWG 12 |
| Contact Configuration | FORM Z SINGLE POLE DT-DB |
| Contact Rating | NEMA A600/P600 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Insulation | 600V |
| Mounting | By The Body |
| Special Features | 2 STAGES SEQUENTIAL,FIXED |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901320999 |
| GTIN | 00785901320999 |
| Item Type | LIMIT SWITCH,ROTARY HEAD |
| Size | 2.25 IN,2.44 IN,4.66-4.66 IN |
| Operating Temperature | -10-185 A Degrees F |
