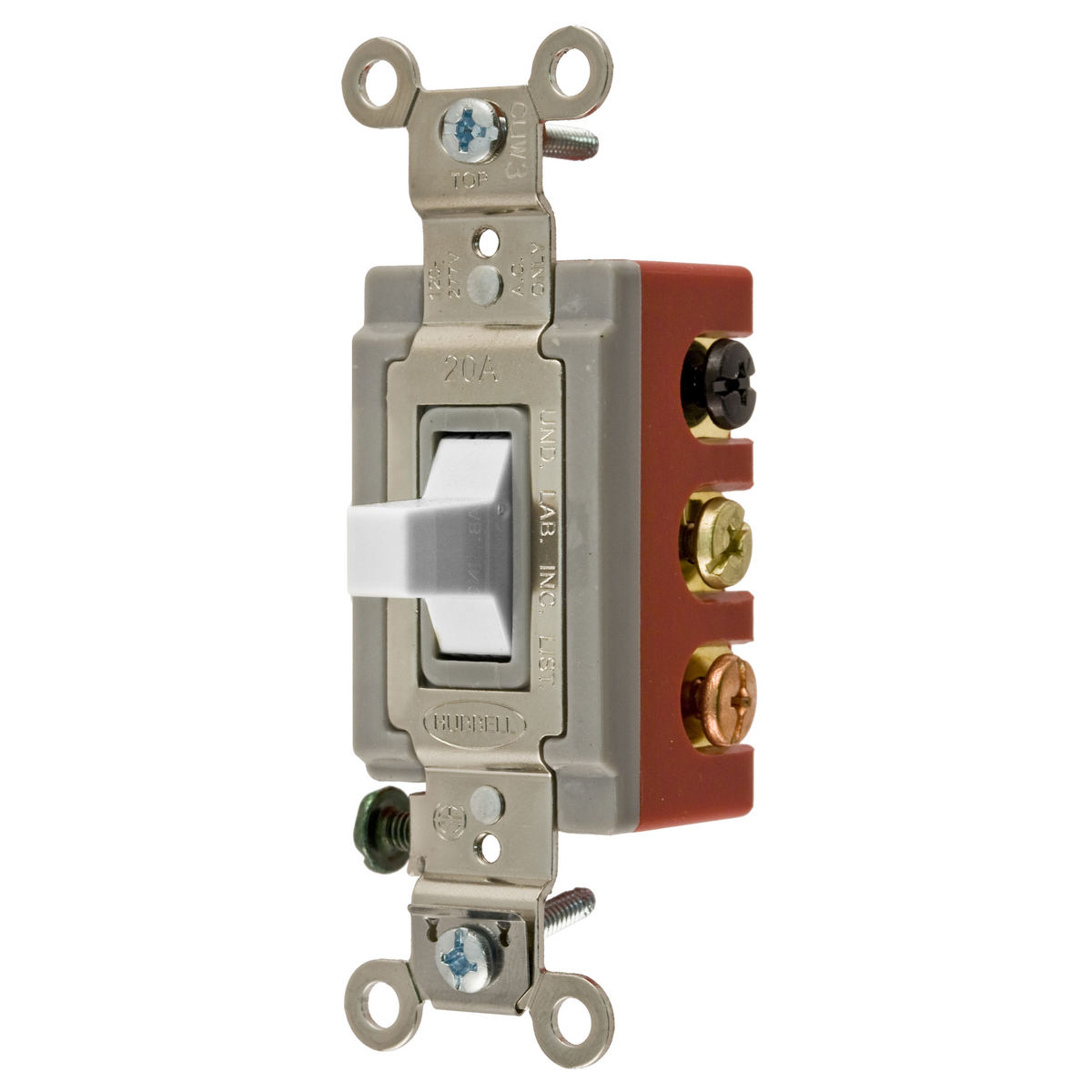

HBL1386W HBL 3-Position Extra Heavy Duty Industrial/Specification Grade Standard Toggle Switch, 120/277 V, 20 A, 5540 W Power Rating, On-Off-On 3-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL1386W
- UPC:
- 783585432694
- Item #:
- 41960
HBL1386W HBL 3-Position Extra Heavy Duty Industrial/Specification Grade Standard Toggle Switch, 120/277 V, 20 A, 5540 W Power Rating, On-Off-On 3-Position Contact
- MFR #:
- HBL1386W
- UPC:
- 783585432694
- Item #:
- 41960
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$141.94
each
Manuals and Documentation
| Catalog Number | HBL1386W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Positive Snap |
| Actuator | Toggle |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial |
| Color | White |
| Connection | Back and Side Wired |
| Contact Configuration | Three Position Center Off |
| Contact Rating | Per UL 20 |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 50,000 Cycles |
| Special Features | Standard Product |
| Standard | NEMA WD1, UL20 |
| UPC | 783585432694 |
| GTIN | 00783585432694 |
| Item Type | General Purpose Switches |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 120/277 |
| Wattage | 5540 W |
