Allied Moulded Products

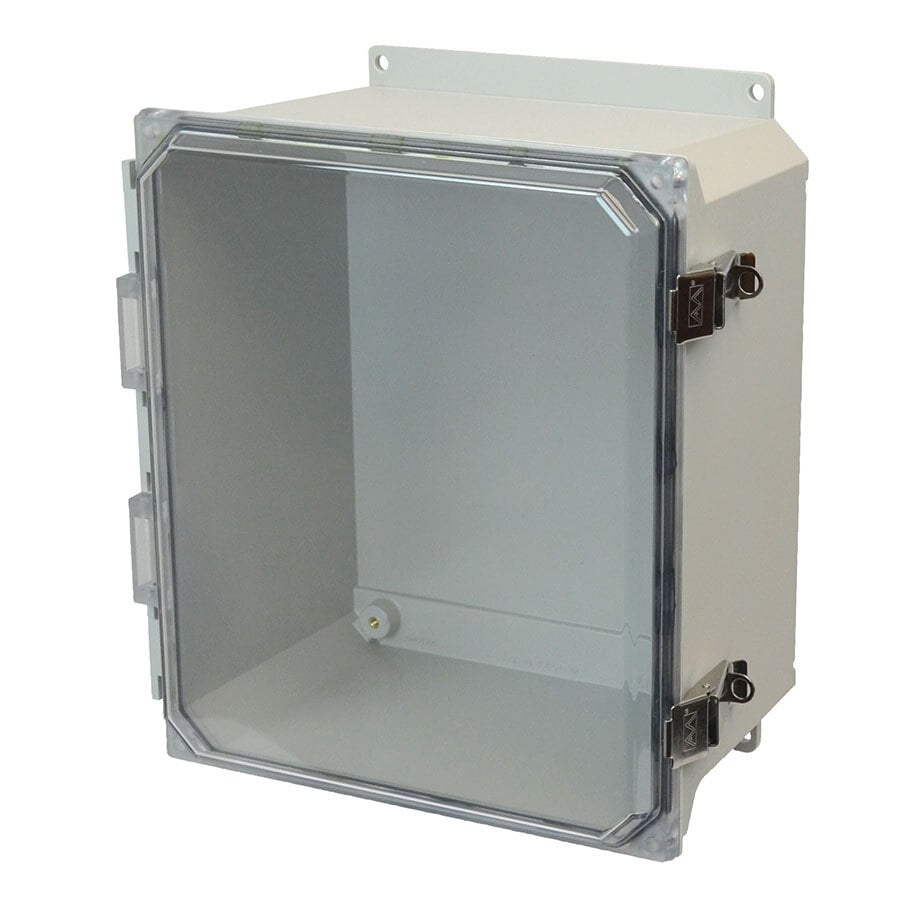

AMU1426CCLF Ultraline JIC Size Junction Box With Flush, Polycarbonate Cover, 14.05 in H x 12.27 in W x 6.13 in D, Hinged Injection Molded Clear Cover, NEMA 4X NEMA Rating, ULTRAGUARD Fiberglass Reinforced Polyester/Thermoset

MFR:
Allied Moulded Products
MFR #:
AMU1426CCLF
UPC:
085339952312
Item #:
419348

Availability

Location Available Qty
Available Available to Order
$358.25 each

Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged snap latch Type:, flush-aesthetically pleasing and clear cover design with closed cell neoprene cord gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=14.05, B=12.27, C=6.13 plus .87 raised cover, usable depth=6.11 Color:RAL 7035 - Gray with clear cover Mounting:Nonmetal flange fastened to back side brass insert

Manuals and Documentation
Catalog Number AMU1426CCLF
Manufacturer Allied Moulded Products
Brand Allied Moulded Products
Country of Origin United States
Made in USA Yes
Application Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Construction Compression molded box with injection molded cover
Cubic Capacity 1,207 cu. In. (.70 cu. Ft.)
Insulation Nonconductive nonmetallic
Material ULTRAGUARD - Fiberglass reinforced polyester - thermoset
Special Features Hinged snap latch type, flush-aesthetically pleasing and clear cover design with formed-in-place polyurethane gasket system
Standard UL 508A - Industrial Control Panels
UPC 085339952312
GTIN 00085339952312
Item Type NEMA 4X Type Nonmetallic Enclosure
Size A=14.05", B=12.27", C=6.13" plus .87" raised cover, usable depth=6.11"
