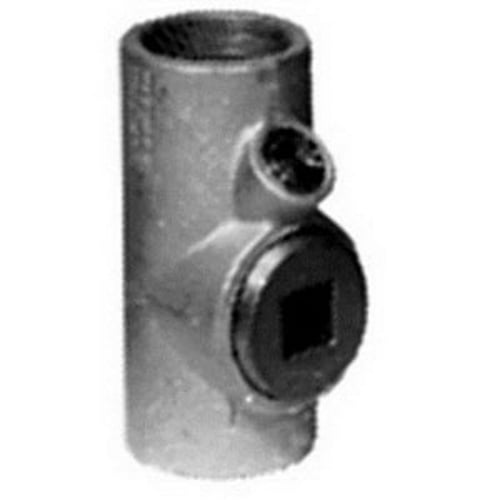

Vertical Drain Seal Fitting, 1/2 inch, FNPT x FNPT, Almag 35 Aluminum
- MFR:
- Appleton Electric
- MFR #:
- EYSF50-AL
- UPC:
- 781381619592
- Item #:
- 41812
Vertical Drain Seal Fitting, 1/2 inch, FNPT x FNPT, Almag 35 Aluminum
- MFR #:
- EYSF50-AL
- UPC:
- 781381619592
- Item #:
- 41812
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$48.44
each
UNILETS EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting, Size: 1/2 IN, Material: Almag 35 Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered FNPT, Turning Radius: 1.81 IN, Length: 3-1/4 IN, Width: 1.13 IN, Standard: UL 886
Manuals and Documentation
Features
- Explosion proof, dust-ignition proof
- Smooth, rounded integral bushing
- Raintight construction
- Large opening for damming and filling
| Catalog Number | EYSF50-AL |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Connection | Tapered FNPT |
| Finish | Epoxy Powder Coat |
| Material | Almag 35 Aluminum |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381619592 |
| GTIN | 00781381619592 |
| Item Type | EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting |
| Length | 6.7000 |
| Length UOM | Inch |
| Width | 5.2000 |
| Width UOM | Inch |
| Height | 0.7000 |
| Height UOM | Inch |
| Weight | 0.200 |
| Weight UOM | Pounds |
| Size | 1/2 |
