Hubbell Wiring Device - Kellems

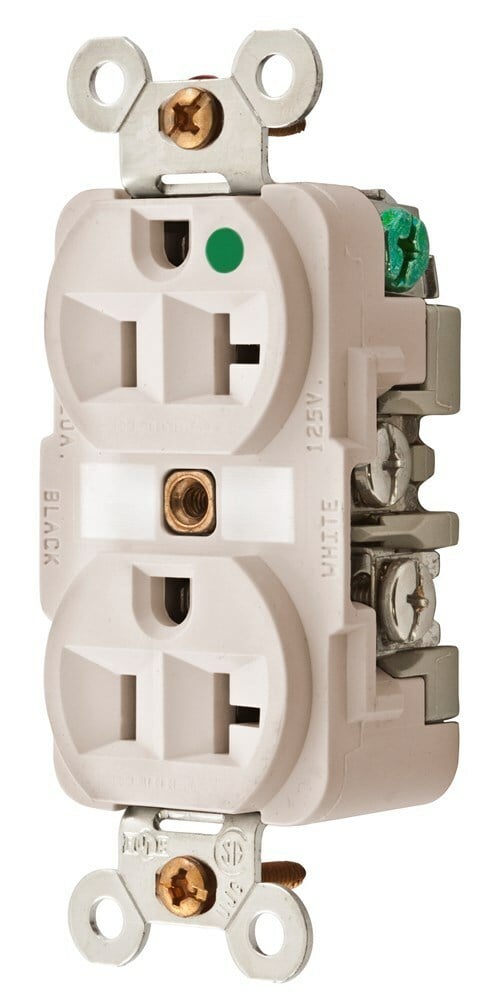

HBL8300LAMRI 1-Phase Duplex Grounding MRI Version Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL8300LAMRI
UPC:
783585148687
Item #:
416877

Availability

Location Available Qty
Available Available to Order

HBL Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.

Catalog Number HBL8300LAMRI
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 20
Application Hospital Grade
Color Light Almond
Connection Back and Side Wired Screw Terminals
Material Thermoplastic
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features MRI Version
Standard CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585148687
GTIN 00783585148687
Item Type MRI Receptacle
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG to #10 AWG
