Telemecanique

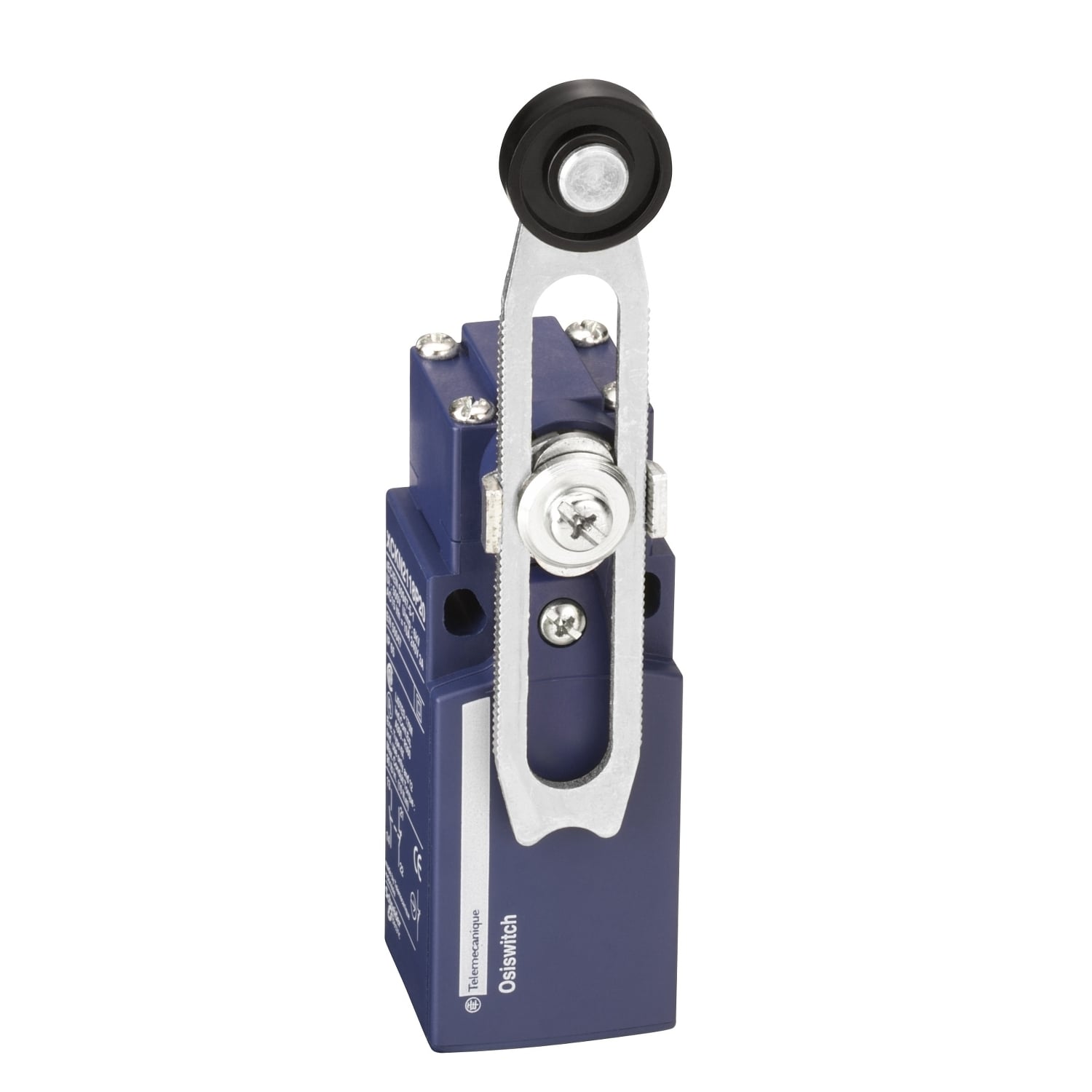

XCKN2545P20 OsiSense XC Compact Fixed Rotary Standard Format Limit Switch, 300/500 V, Roller Lever Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKN2545P20
Item #:
416848

Availability

Location Available Qty
Available Available to Order
$96.33 each

This product is a compact format limit switch with 1 entry tapped M20 x 1.5 for ISO cable gland. It features a plastic fixed body and a rotary head, with a variable length thermoplastic roller lever. Contacts: 2-pole NC + NO, break before make, slow break. This limit switch is sold and packed in lots of 20.

Manuals and Documentation
Catalog Number XCKN2545P20
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Slow-break, break before make;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic variable length
Application COMPACT BASIC
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,45 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,IK04 EN 50102,IP65 IEC 60529,UL 508-IEC 60947-5-1-IEC 60204-1-EN 60204-1-CSA C22.2 NO 14-EN 60947-5-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857038&lang=en-us
GTIN 03389110546682
Item Type Limit switch
Size 1.65
Operating Temperature -25-70 A Degrees C
