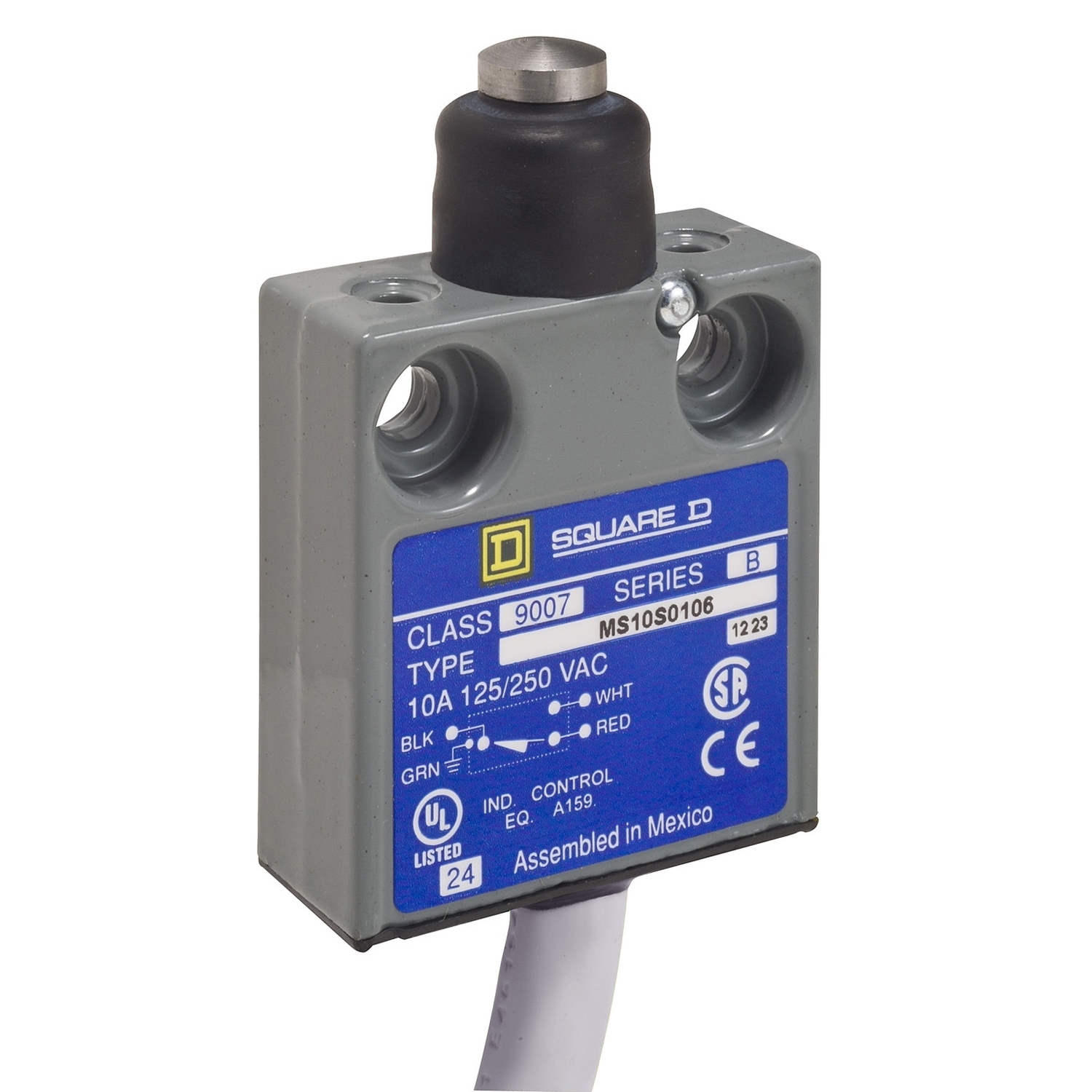

9007MS10S0110 Miniature Potted Limit Switch, 240 V AC/28 V DC, 10 A, Booted Push-Rod Vertical Actuator, 1CO 1 Form C SPDT Contact, 1 Pole
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007MS10S0110
- UPC:
- 785901483489
- Item #:
- 415645
9007MS10S0110 Miniature Potted Limit Switch, 240 V AC/28 V DC, 10 A, Booted Push-Rod Vertical Actuator, 1CO 1 Form C SPDT Contact, 1 Pole
- MFR #:
- 9007MS10S0110
- UPC:
- 785901483489
- Item #:
- 415645
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$203.14
each
9007MS limit switch - top push plunger - booted - 3' bottom cable
Manuals and Documentation
| Catalog Number | 9007MS10S0110 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | On end;Vertical approach, 1 direction;Snap action |
| Actuator | Spring return plunger stainless steel booted |
| Amperage Rating | 10 |
| Application | 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD |
| Connection | Pre-wired cable bottom |
| Contact Configuration | NC-NO;Form C |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 100000 CYCLES |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CSA-CE-UL,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529 |
| UPC | 785901483489 |
| GTIN | 00785901483489 |
| Item Type | Limit switch |
| Size | 0.62 |
| Operating Temperature | -40-220 A Degrees F |
| Voltage Rating | 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC |
