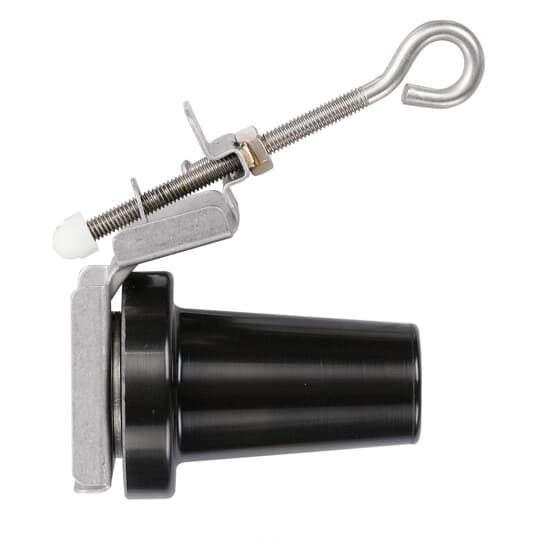

K650SOP Elastimold 600 Insulated Deadbreak Parking Bushing, 15/25 kV, 600 A, For Use With Cable, EPDM Rubber
- MFR:
- ABB - Installation Products
- MFR #:
- K650SOP
- UPC:
- 783786652068
- Item #:
- 414808
K650SOP Elastimold 600 Insulated Deadbreak Parking Bushing, 15/25 kV, 600 A, For Use With Cable, EPDM Rubber
- MFR #:
- K650SOP
- UPC:
- 783786652068
- Item #:
- 414808
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$339.91
each
| Catalog Number | K650SOP |
| Manufacturer | ABB - Installation Products |
| Brand | ELASTIMOLD |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | The Elastimold K650SOP Insulated Parking Bushing is equipped with a 15/25kV class, 600 Amp deadbreak interface, a parking stand and hot stick operable mounting hardware. The K650SOP is inserted into the parking stand with an insulated hot stick and secured in place. Mating Elastimold K655LR/K656LR deadbreak elbows can then be placed on the K650SOP to provide a fully shielded and fully submersible connection. Provisions for grounding the K650SOP mounting bracket are included |
| Material | EPDM Rubber |
| Special Features | Fully rated 15/25kV, 600 Amp Deadbreak Insulated Parking Bushing. Allows visible external separation, isolation, and dead-ending. Stainless Steel Bracket. Hot Stick Operable |
| Standard | ANSI/IEEE Standard 386 |
| UPC | 783786652068 |
| GTIN | 00783786652068 |
| Item Type | Parking Bushing |
| Size | 3.00 inch (76.2 mm) Diameter, 3.88 inch (98.5 mm) Long, 4.82 inch (122.2 mm) Center of Bushing to top of EyeBolt |
