Crouse-Hinds

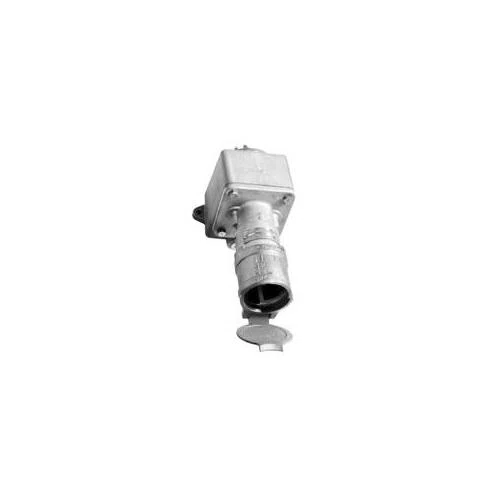

CES2214 Arktite 3-Phase Grounding Style 2 Explosionproof Factory Sealed Through-Feed Receptacle With Spring Door, 120 to 240/480 VAC, 7/30 A, 4 Poles, 3 Wires

MFR:
Eaton
MFR #:
CES2214
UPC:
782274127606
Item #:
412502

Availability

Location Available Qty
Available Available to Order
$3,219.08 each

Crouse-Hinds Arktite® Receptacle, 3-Phase Grounding Style 2 Explosionproof Factory Sealed Through-Feed, Series: CES, 120 to 240/480 VAC, 7/30 A, 1 hp, 3 hp, 60 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/7/9/12 Enclosure, Copper-Free Aluminum, 4.63 in L x 4.13 in W x 7.44 in H Dimensions

Manuals and Documentation

Features

  • CES receptacles are equipped with a delayed action rotating sleeve which prevents complete withdrawal of the CPH plug-in one continuous movement
  • Receptacles are factory sealed to simplify installation and wiring
  • The 30 a receptacles are provided with pressure terminals for field connection
  • The delayed action feature permits the plug to be used as an emergency push pull switch
  • Details of operation are illustrated and described to the right
  • 7 a at 480 VAC, 30 a at 120 to 240 vac
  • 1 hp at 480 VAC, 3 hp at 120 to 240 vac
Manufacturer Part Number CES2214
Brand Crouse-Hinds
Manufacturer Eaton
UPC 782274127606
Country Of Origin US
Amperage Rating 7/30 A
Dimensions 4.63 in L x 4.13 in W x 7.44 in H
Enclosure NEMA 3/7/9/12
Horsepower 1 hp, 3 hp
Material Copper-Free Aluminum
Series CES
Type 3-Phase Grounding Style 2 Explosionproof Factory Sealed Through-Feed
Voltage Rating 120 to 240/480 V AC
Manufacturer Item Status Discontinued
Country USA
Warranty Limited
Standards Approvals UL 1010, CSA C22.2
Application For petroleum refineries, chemical, petrochemical plants and other process industry facilities where similar hazards exist, industrial facilities, factories facility, power distribution and control applications
Frequency Rating 60 Hz
Number Of Poles 4
Number Of Wires 3
