Discontinued
Hubbell Wiring Device - Kellems

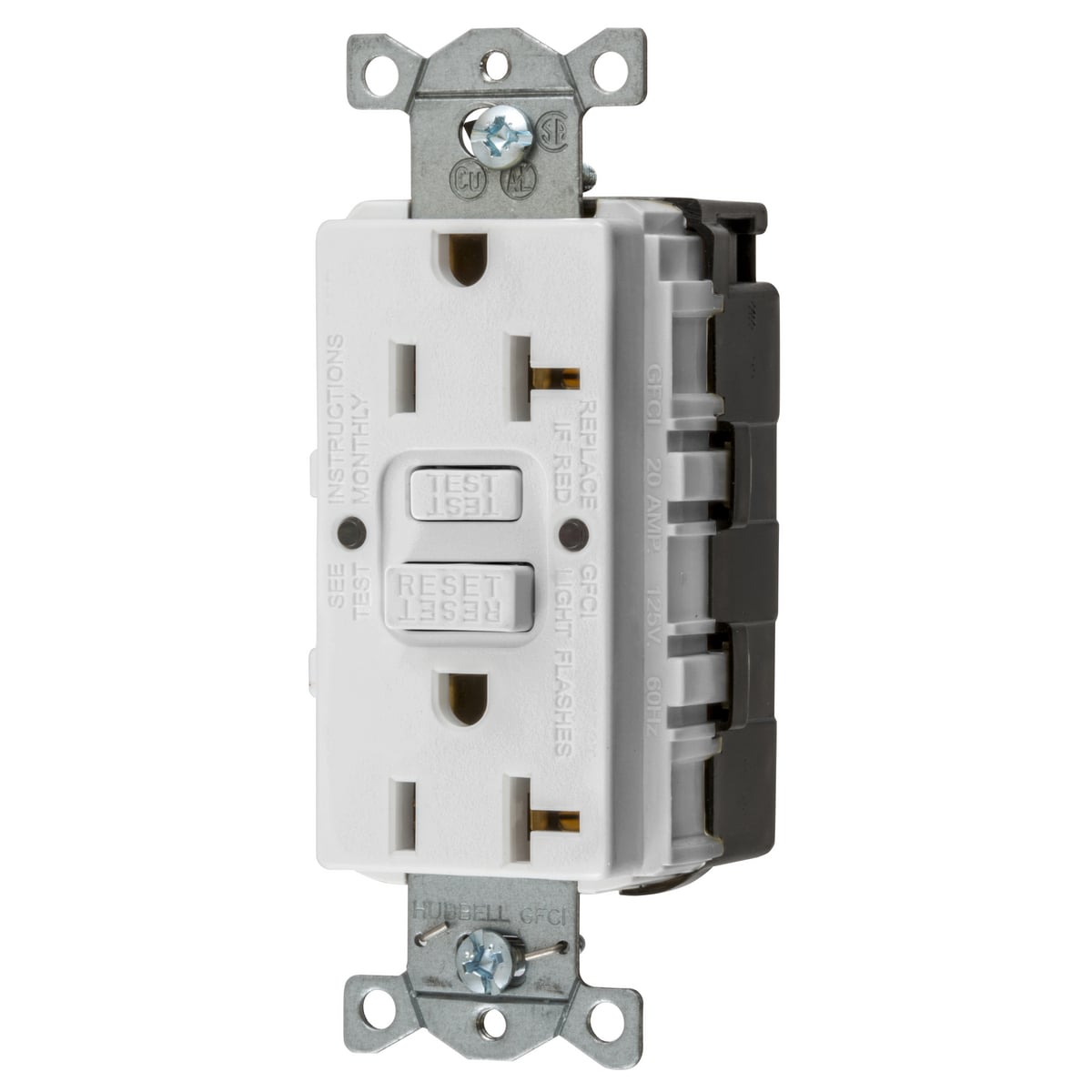

GFRST20SNAPW 1-Phase Duplex Insulated Self-Test Standard Screw Mount GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
GFRST20SNAPW
UPC:
883778124570
Item #:
412446

Availability

Location Available Qty
Available Available to Order

AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Manuals and Documentation
Catalog Number GFRST20SNAPW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Commercial Grade
Color White
Connection Pre-Wired Connector
Insulation Insulated per UL
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Wires 3
Phase 1
Special Features SNAP Connect, Self Grounding, AUTOGUARD Self test Technology
Standard Meets All NEC® Requirements
UPC 883778124570
GTIN 00883778124570
Item Type Standard
Size 3.28 in x 1.77 in x 1.47 in
Environmental Conditions Dry Indoors unless Protected by Additional Means
Temperature Rating -40 Degrees C to 75 Degrees C
Voltage Rating 125
Wattage 1,875 W
Wire Size #12 AWG
Cross Reference Products PT2097W
