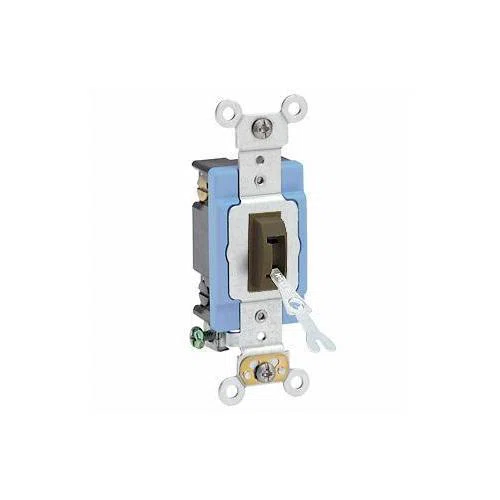

1204-2L Self-Grounding Tamper Resistant AC Quiet Toggle Switch, 120/277 V AC, 15 A, 1/2, 2 hp Power Rating
- MFR:
- Leviton
- MFR #:
- 1204-2L
- UPC:
- 078477365595
- Item #:
- 411675
1204-2L Self-Grounding Tamper Resistant AC Quiet Toggle Switch, 120/277 V AC, 15 A, 1/2, 2 hp Power Rating
- MFR #:
- 1204-2L
- UPC:
- 078477365595
- Item #:
- 411675
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$79.02
each
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top of the line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Manuals and Documentation
Features
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
- AC quiet switch
- Tamper resistant
- #8-32 brass terminal screws
- 0.048 in thick galvanized steel strap
- Polycarbonate toggle, thermoplastic base and cover
- Key locking toggle
- Box mounting
| Manufacturer Part Number | 1204-2L |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477365595 |
| Country Of Origin | MX |
| Amperage Rating | 15 A |
| Color | Brown |
| Dimensions | 46 in H x 1.31 in W x 13 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Material | Thermoplastic |
| Type | 4-Way Self-Grounding Tamper Resistant |
| Voltage Rating | 120/277 V AC |
| Alternative Part Number | 10573616 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 10 years Limited |
| Standards Approvals | RoHS Compliant | ANSI C73 | CSA C22.2 No. 111 File No. 152105 | NOM 057 | Federal Specification WS896E File No. E7458 | UL 20 | UL94 V-2 Flammability Rating |
| Application | Commercial Applications |
| Actuator | Key Operated |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Mounting | Surface |
| Operating Cycles | 50000 Cycles |
| Power Rating | 1/2, 2 |
| Terminal Type | Back/Side Wire |
