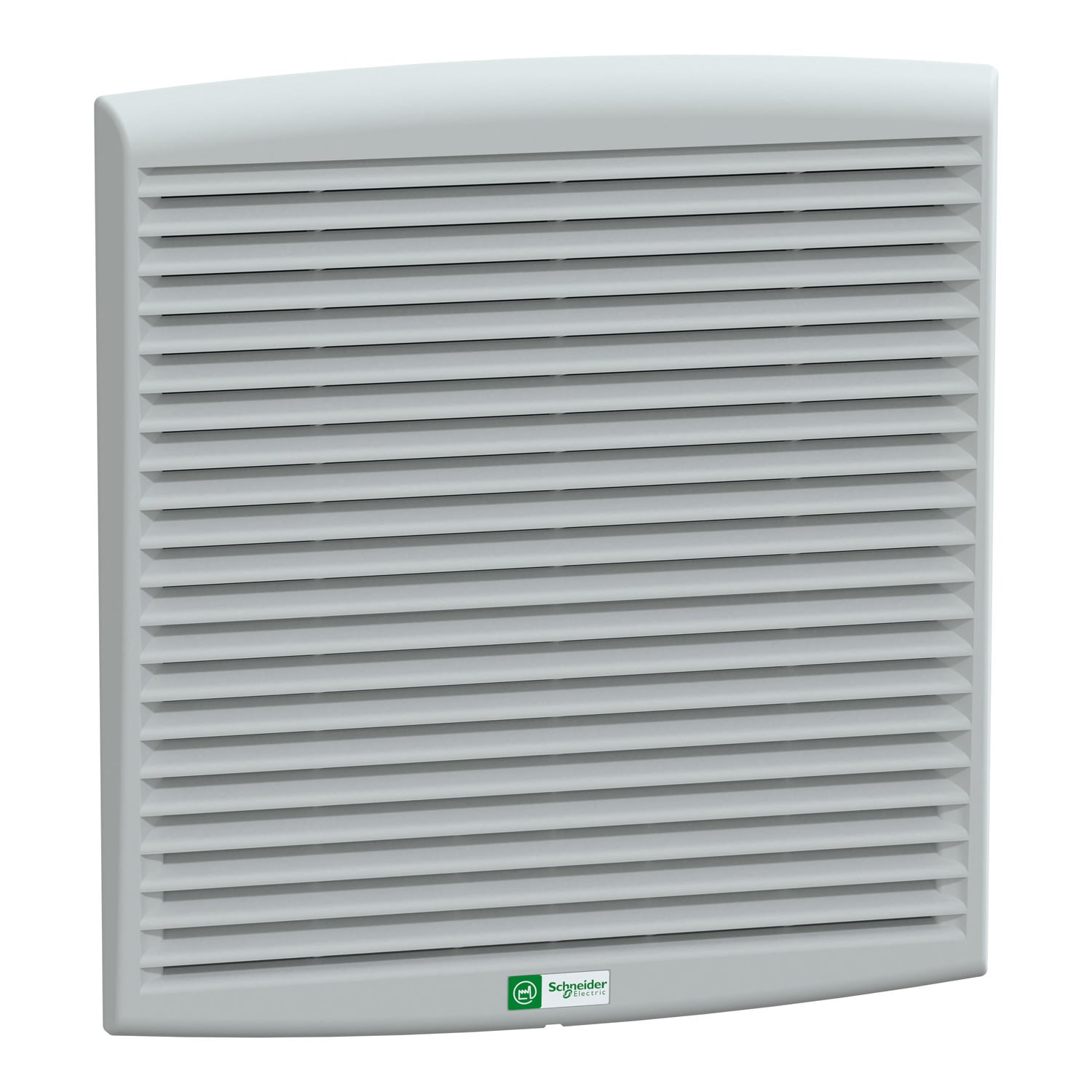

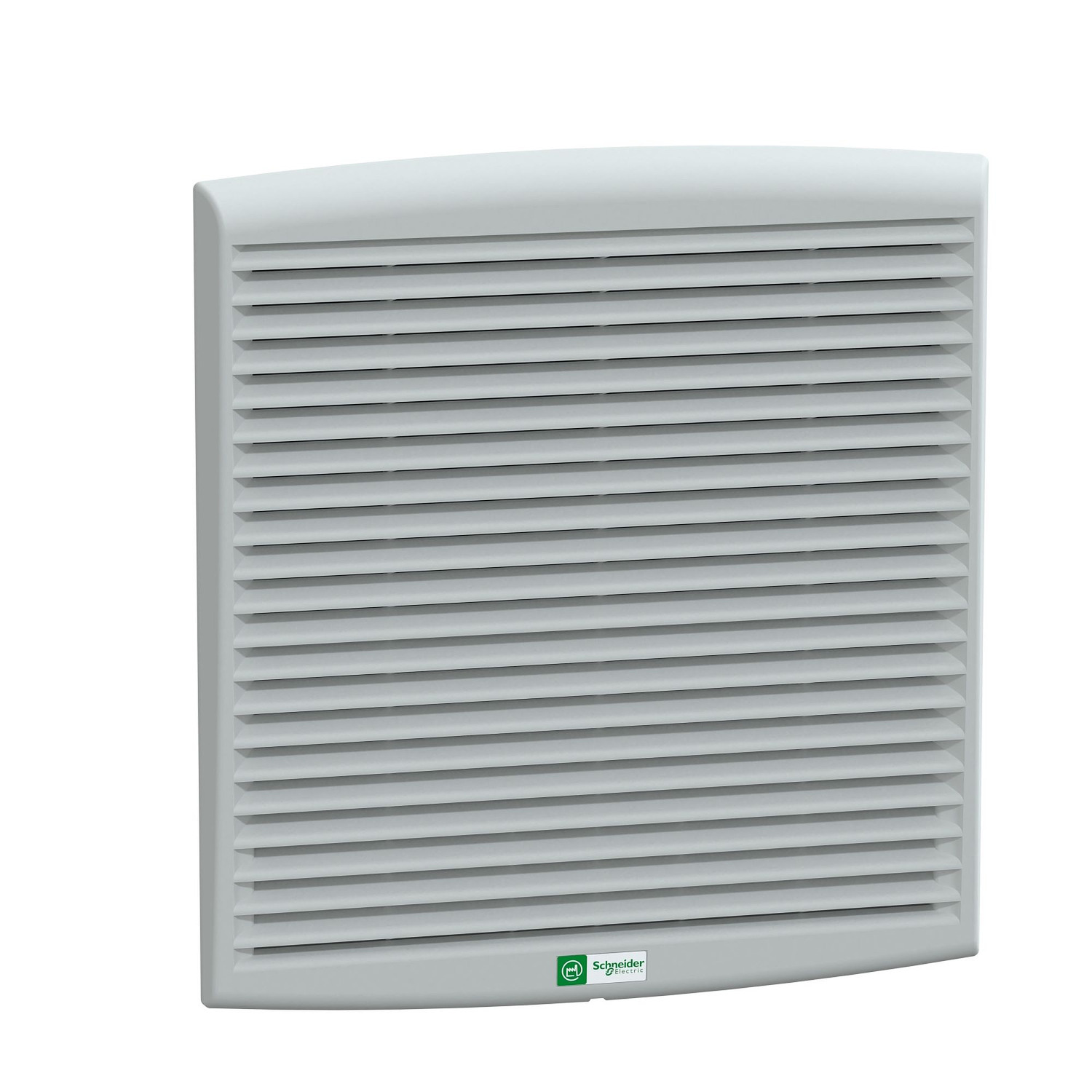

NSYCVF560M230PF ClimaSys Self-Extinguishing Forced Ventilation Fan, 230 V AC, 0.37/0.52 A, 68/85 W Power Rating, 560 cu-m/hr Air Flow, IP54 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- NSYCVF560M230PF
- Item #:
- 41143
NSYCVF560M230PF ClimaSys Self-Extinguishing Forced Ventilation Fan, 230 V AC, 0.37/0.52 A, 68/85 W Power Rating, 560 cu-m/hr Air Flow, IP54 Enclosure
- MFR #:
- NSYCVF560M230PF
- Item #:
- 41143
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$534.65
each
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 68 W 50 Hz, 85 W 60 Hz. Free flow rate of 550 m3/h at 50 Hz and 60 Hz. 336 x 316 x 161 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Manuals and Documentation
| Catalog Number | NSYCVF560M230PF |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Consist of | 1 axial motor;2 protective grille on the front and rear surfaces;1 filter front of axial motor;1 outlet grille front;1 cut-out template |
| Input Voltage | 230 V 50/60 Hz |
| Material | Outlet grille injected thermoplastic (ASA PC) |
| Special Features | Terminal block |
| Standard | IP54 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10178375&lang=en-us |
| GTIN | 03606480151323 |
| Item Type | Fan |
| Width | External: 316 mm |
| Height | External: 336 mm |
| Depth | External : 161 mm |
