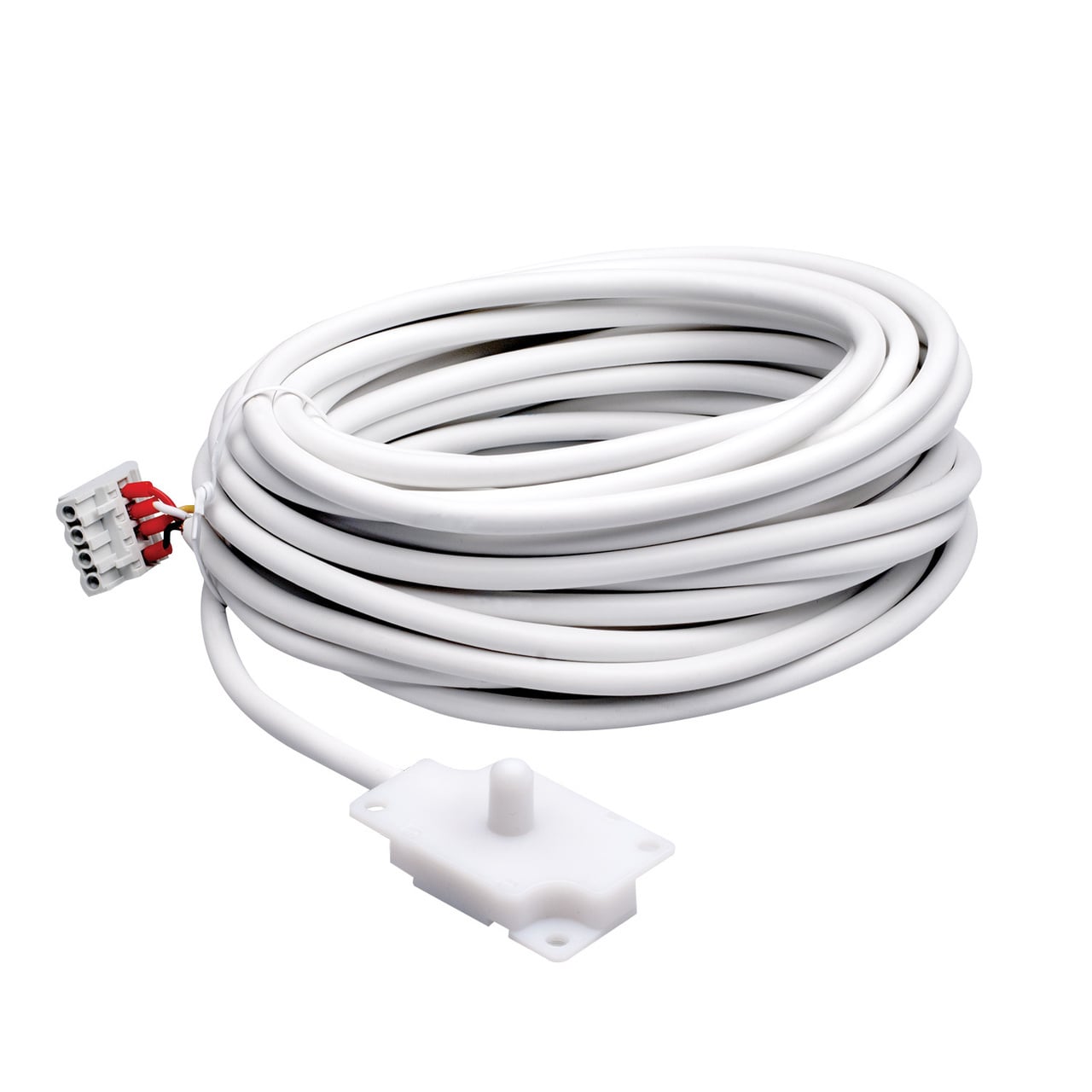

PGA-LS10 Powr-Gard Photovoltaic Point Sensor, For Use With PGR-8800 Series Arc Flash Monitoring
- MFR:
- Littelfuse
- MFR #:
- PGA-LS10
- UPC:
- 079458949452
- Item #:
- 411241
PGA-LS10 Powr-Gard Photovoltaic Point Sensor, For Use With PGR-8800 Series Arc Flash Monitoring
- MFR #:
- PGA-LS10
- UPC:
- 079458949452
- Item #:
- 411241
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,764.33
each
The arc detecting point sensor PGA-LS10 is installed in switchboards in such a way that it has a line-of-sight to all powered connections, where an arc can develop. Typically, each compartment will have one or two sensors. The sensor is able to detect light from all angles in front of it due to the specially shaped cylindrical lens on the front of the sensor. The detection radius is dependent on the arc power. At a trip level setting on the PGR-8800 of "1", the PGR-8800 will react to all arcs of more than 3 kA within a 2 meter radius.
Manuals and Documentation
| Catalog Number | PGA-LS10 |
| Manufacturer | Littelfuse |
| Brand | Littelfuse |
| Country of Origin | Denmark |
| Made in USA | No |
| Application | Industrial |
| Special Features | Photovoltaic |
| UPC | 079458949452 |
| GTIN | 00079458949452 |
| Item Type | Sensor |
