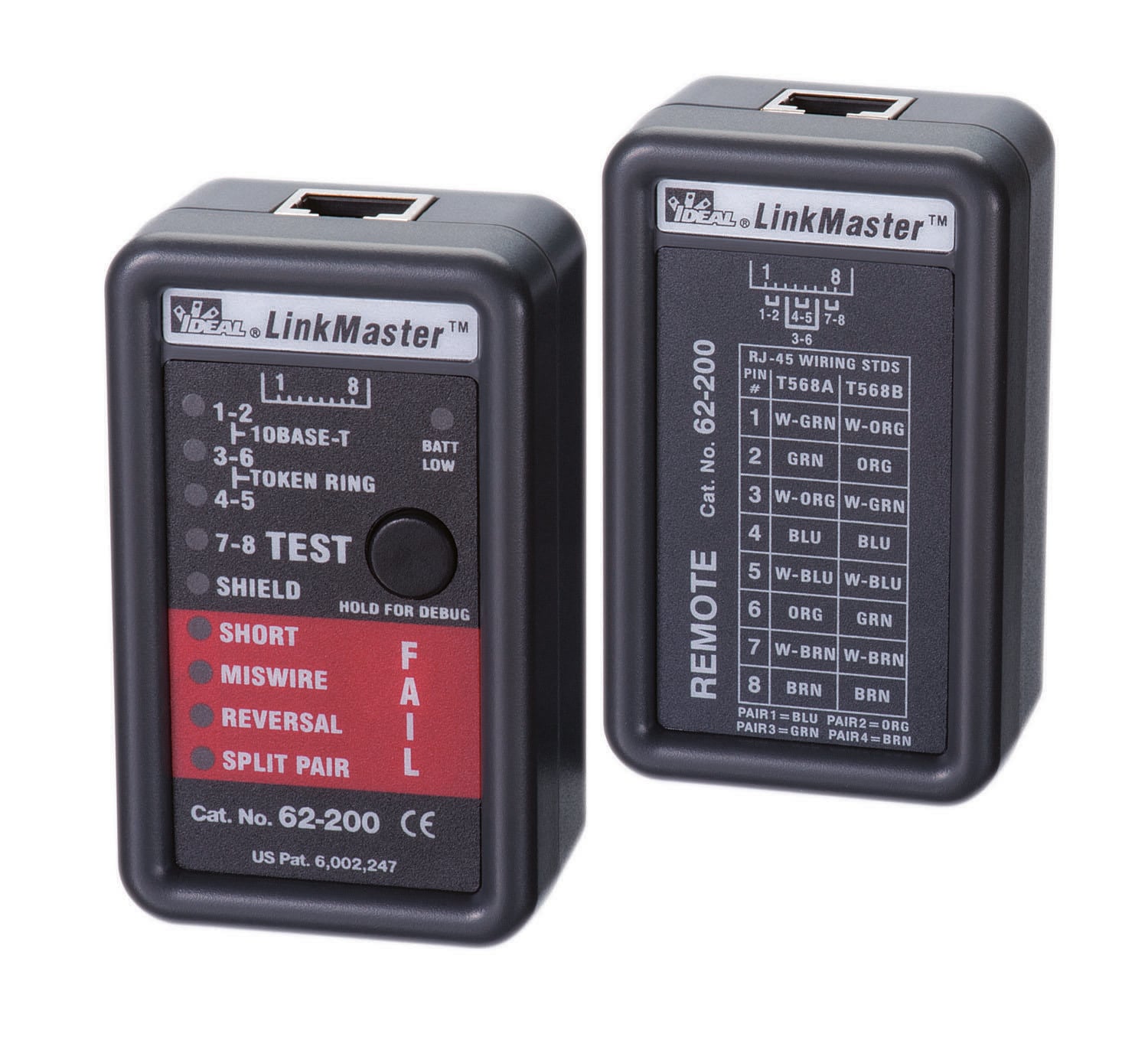

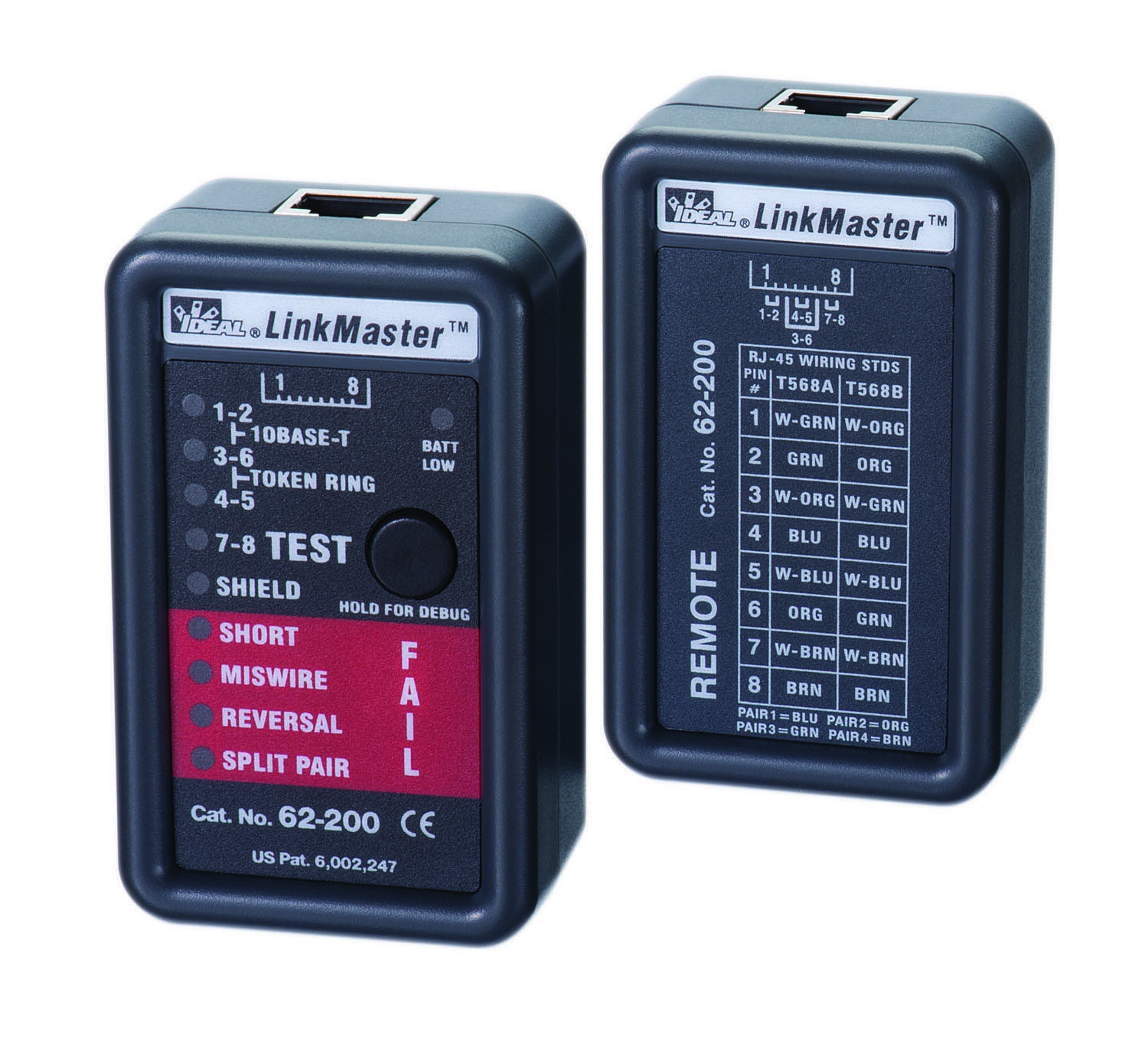

The 62-200 LinkMaster is our basic wiremapper for identifying wiring and continuity errors in twisted pair cabling. Wiremappers are used to verify if the cable is physically terminated properly at both ends and that there are no major cable defects present in the cable, such as cut conductors, that would prevent signal continuity. Colored LED lights identify pass/fail conditions of each pair of wires in RJ-45 8 conductor cables.

Manuals and Documentation
Catalog Number 62-200
Manufacturer Ideal Industries
Brand Ideal
Country of Origin China
Made in USA No
Application For Testing Wiring Configurations On UTP/STP Cables, Checks For Shorts, Miswires, Reversals And Split Pairs
Special Features Test wiring configuration on UTP and STP; Check for shorts, miss wires, reversals and split pairs; Debug feature, automatic shut-off and low battery LED indicator; Main unit and remote allow one person testing; Designed to test installed twisted-pair wiring; Tests unshielded and shielded modular plugs
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250622009
GTIN 00783250622009
Item Type Tester And Remote
Dimensions 3-1/4 IN X 2 IN X 1-1/4 IN
