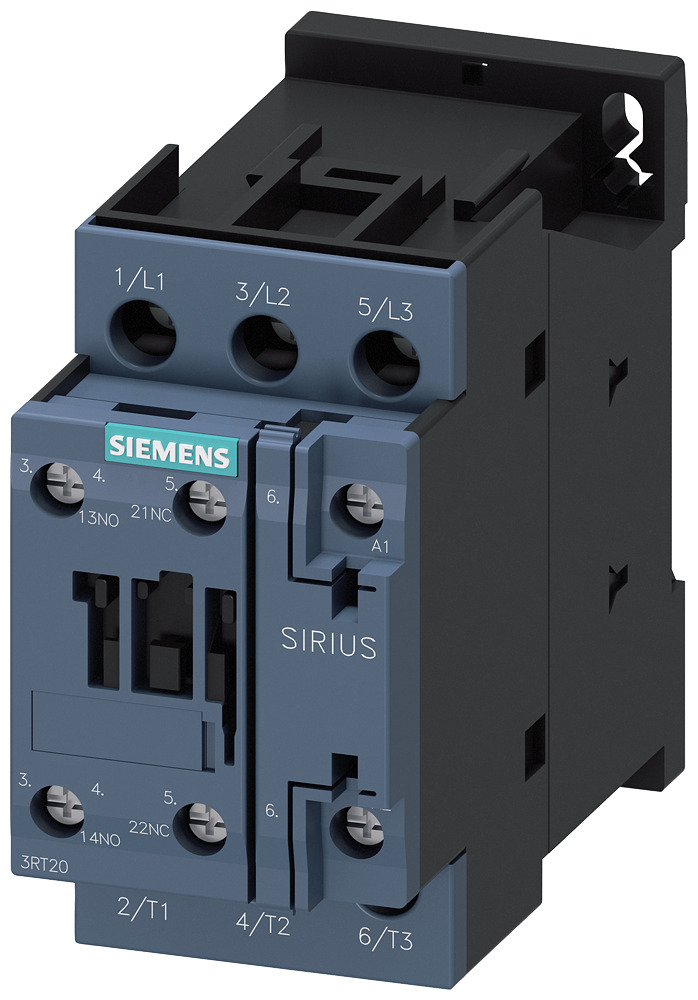

3RT20261AK60 Sirius Power Contactor, 110/120 VAC V Coil, 25 A, 1NO-1NC Contact, 3 Poles
- MFR:
- Siemens
- MFR #:
- 3RT20261AK60
- UPC:
- 040892547597
- Item #:
- 409814
3RT20261AK60 Sirius Power Contactor, 110/120 VAC V Coil, 25 A, 1NO-1NC Contact, 3 Poles
- MFR #:
- 3RT20261AK60
- UPC:
- 040892547597
- Item #:
- 409814
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$713.93
each
Manuals and Documentation
| Catalog Number | 3RT20261AK60 |
| Manufacturer | Siemens |
| Brand | Siemens |
| Country of Origin | Germany |
| Made in USA | No |
| Coil Voltage | 110/120 VAC |
| Connection | Screw type terminal |
| Contact Configuration | 1 NO, 1 NC |
| Contact Rating | 25 AMP At 400V |
| Operating Cycles | 10000000 of the contactor / typical, 10000000 of the contactor with added auxiliary switch block / typical, 5,000,000 of the contactor with added electronics-compatible auxiliary switch block / typical |
| Phase | 3 |
| Special Features | Amperage Rating: 25 AMP At 400 V; Enclosure: S0, IP20; Design of the fuse link: Fuse gL/gG: 10 AMP; Number Of Poles: 3 |
| Standard | CQC, UL Listed, CSA Certified, ROSTEST |
| UPC | 040892547597 |
| GTIN | 00040892547597 |
| Size | 85 MM Height x 45 MM Width x 97 MM Depth |
| Operating Temperature | -25 To 60 DEG C |
| Wattage | 11@400V KW |
