SQUARE D

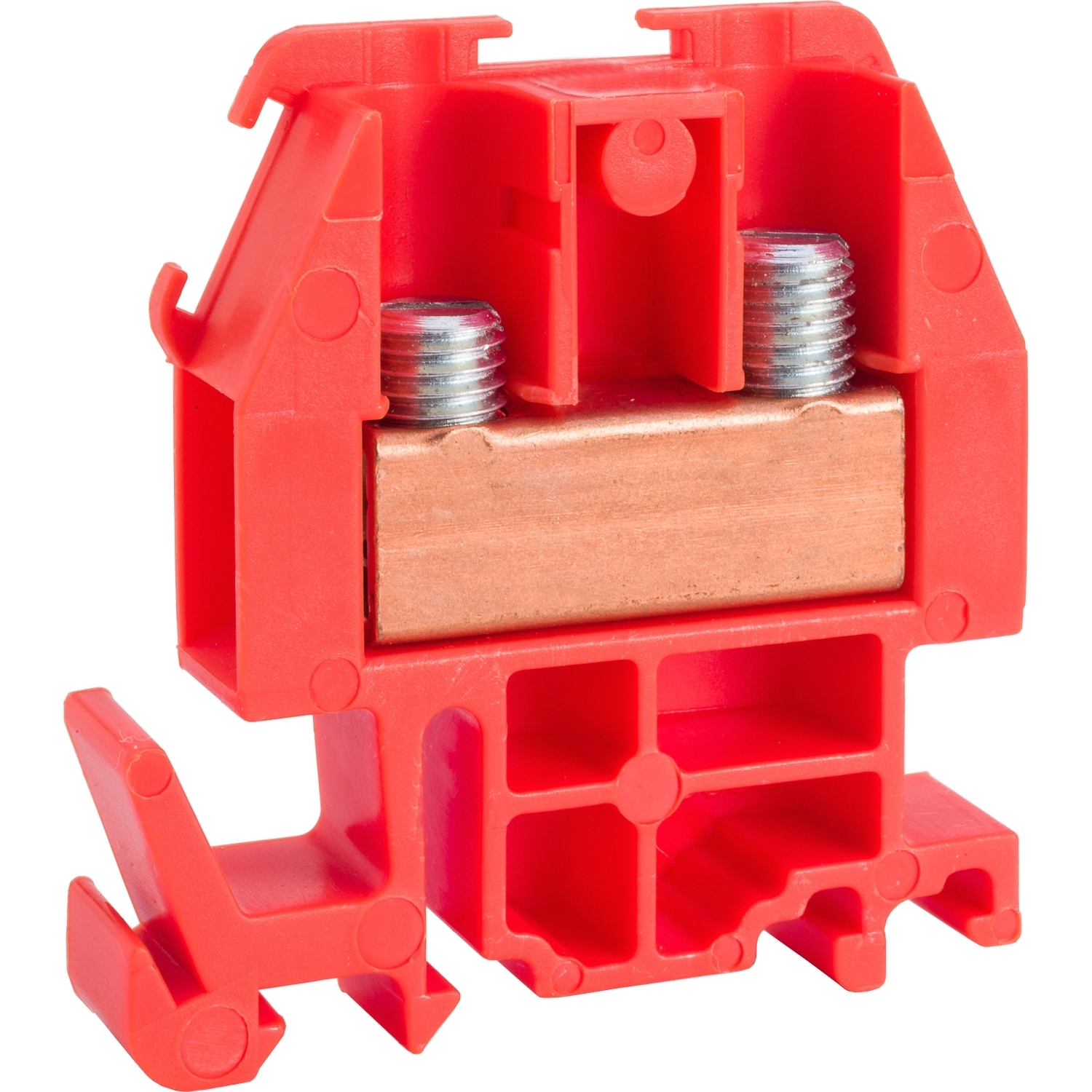

9080GRS6 Type G Fingersafe Terminal Block, 600 V AC/DC, 60 A, 22 to 8 AWG Cu Wire, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
9080GRS6
UPC:
785901058793
Item #:
406537

Availability

Location Available Qty
Available Available to Order
$4.50 each

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in orange. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.

Manuals and Documentation
Catalog Number 9080GRS6
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372793&lang=en-us
UPC 785901058793
GTIN 00785901058793
Width 1.72
Width UOM Inch
Height 1.82
Height UOM Inch
Depth 0.35 IN
