Hubbell Wiring Device - Kellems

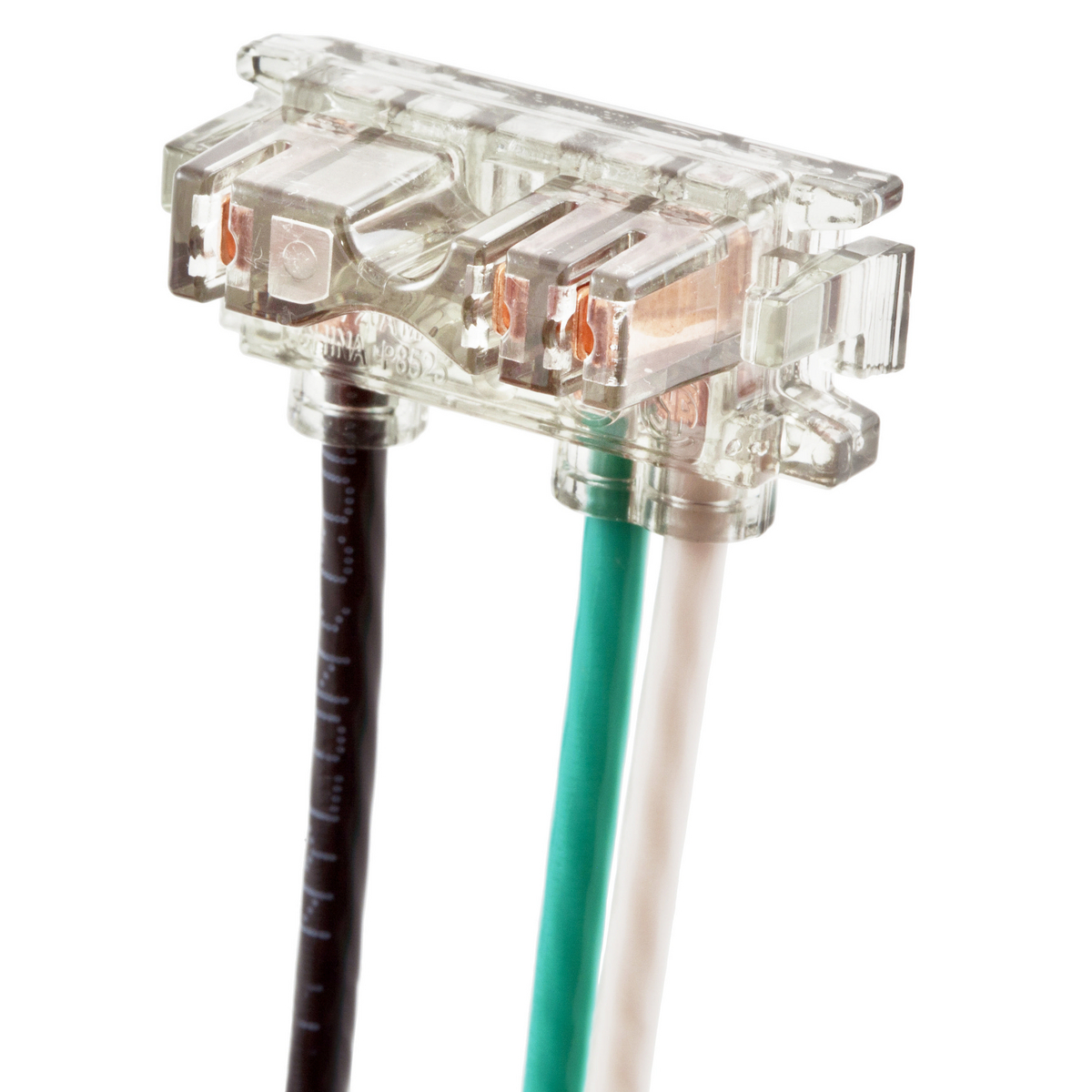

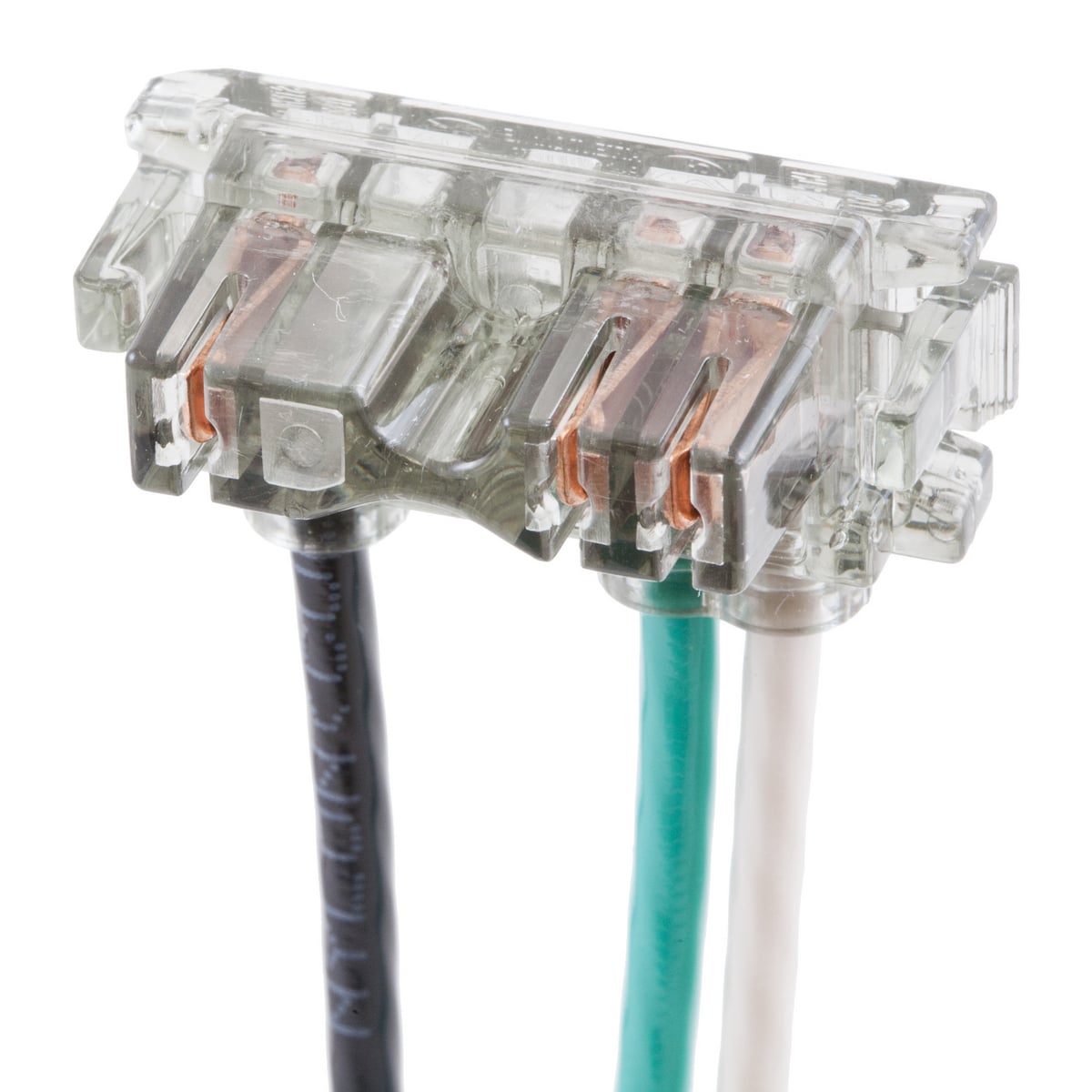

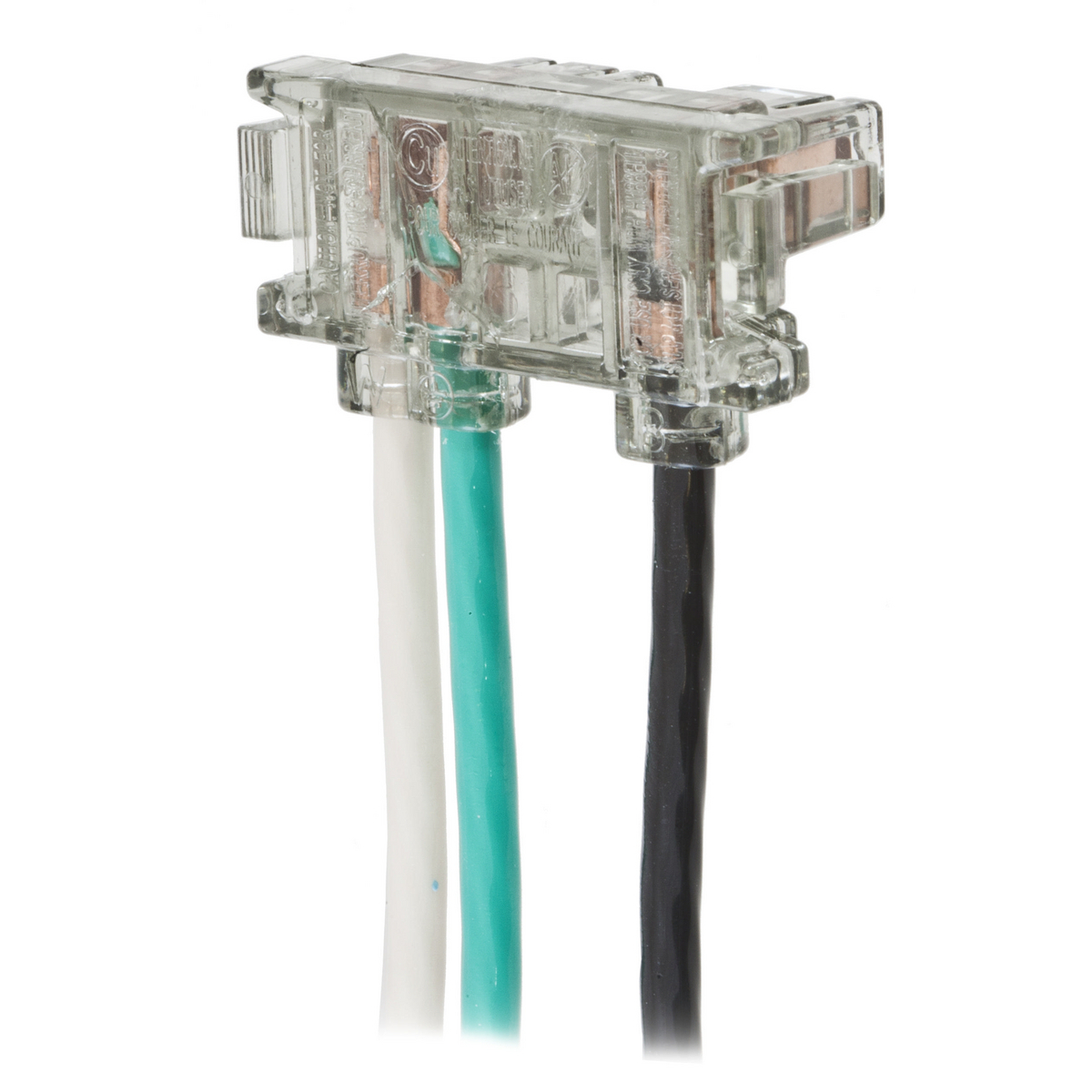

SNAP1RNA Grounding Quick-Connection Standard Cord Mount Pigtailed Terminal, 12 AWG Solid Wire, Polycarbonate

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP1RNA
UPC:
783585251967
Item #:
40650

Availability

Location Available Qty
Available Available to Order
$4.30 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP1RNA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Quick Connection
Color Clear
Conductor Range Pre-Wired #12 THHN
Connection Screw Terminals
Insulation Insulated Body
Material Polycarbonate
Mounting Cord
Number of Conductors 3-Wire Grounding
Number of Poles 2
Special Features Solid Leads, Made in the USA
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585251967
GTIN 00783585251967
Item Type Pigtailed Connector
Size 1.48 in x 0.78 in x 0.79 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 125
