Square D

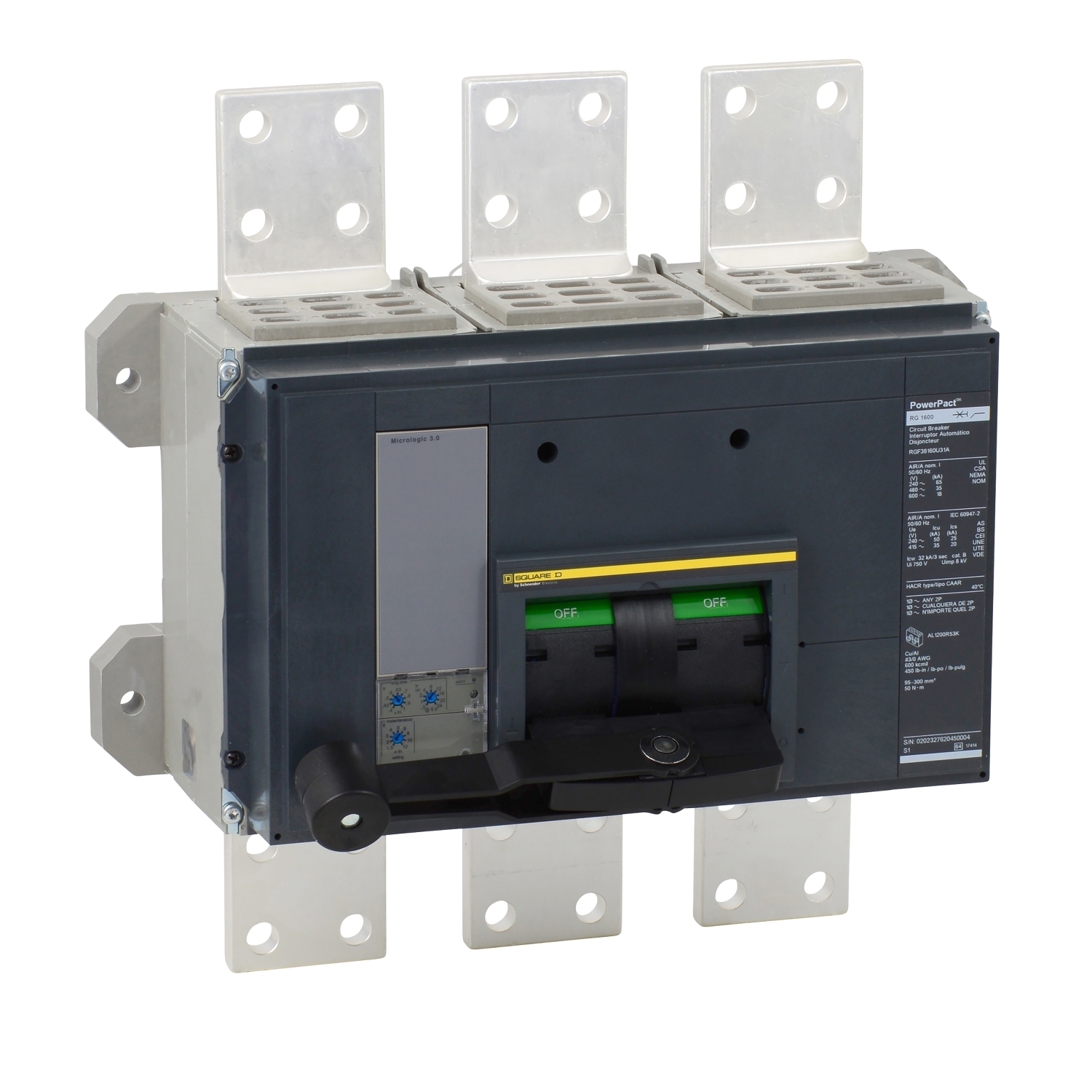

RKF36120U31AABSAYP PowerPact MasterPact Molded Case Circuit Breaker, 600 V AC, 1200 A, 65 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
RKF36120U31AABSAYP
Item #:
405816

Availability

Location Available Qty
Available Available to Order

PowerPacTR-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 65kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes 2A/2B auxiliary switch, 120VAC shunt trip, and a fixed handle padlocking device, lock off or on. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number RKF36120U31AABSAYP
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Application Distribution
Connection Busbar connection, line;busbar connection, load; AWG 3/0...750 kcmil aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268670379&lang=en-us
GTIN 03606486286661
Item Type Circuit breaker;Auxiliary switch 24 V AC/DC 2 NO + 2 NC cover frame;shunt trip 110...130 V AC/DC;padlocking device ON and OFF end;HACR rated
Width 16.53
Width UOM Inch
Height 16.24
Height UOM Inch
Depth 14.49 IN
