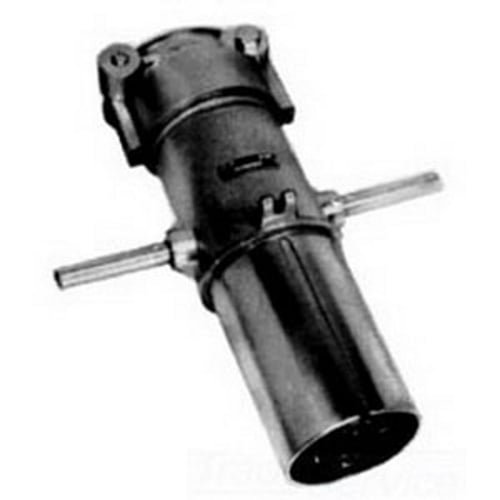

400AMP Plug Assem 4P S1 3000D
- MFR:
- Appleton Electric
- MFR #:
- AP40144F
- UPC:
- 781381295642
- Item #:
- 40577
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$7,222.37
each
Appleton Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Solder Wire Terminal, Environmental Conditions: Temperature Rating: -40 To 107 DEG C, Finish: Epoxy Powder Coat, Plug Cable Diameter: 2-1/2 - 3 IN, Dimensions: 15.5 IN Width X 8 IN Height X 19 IN Depth, Standard: UL 1682, UL 1686, UL 50E, UL Listed: E145916, E145917, CSA Standard: C22.2 No. 182.1, CSA Certified: 065179, NEMA FB11, For AR40144 Receptacle And ARC40144F Connector Body
Manuals and Documentation
| Catalog Number | AP40144F |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 400 |
| Application | For AR40144 Receptacle And ARC40144F Connector Body |
| Connection | Solder Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | 3 |
| Special Features | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 1-1/4 IN |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381295642 |
| GTIN | 00781381295642 |
| Item Type | Grounding Style 1 Plug |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 400 - 1000 MCM |
