XS608B1NAL2 Osiprox OsiSense XS Fixed Cylindrical Long Case Proximity Sensor With Reverse Polarity Protection, Inductive, NPN Output, 1NO Contact, 10 to 58/12 to 48 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS608B1NAL2
- UPC:
- 785901590088
- Item #:
- 40537
XS608B1NAL2 Osiprox OsiSense XS Fixed Cylindrical Long Case Proximity Sensor With Reverse Polarity Protection, Inductive, NPN Output, 1NO Contact, 10 to 58/12 to 48 V DC
- MFR #:
- XS608B1NAL2
- UPC:
- 785901590088
- Item #:
- 40537
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

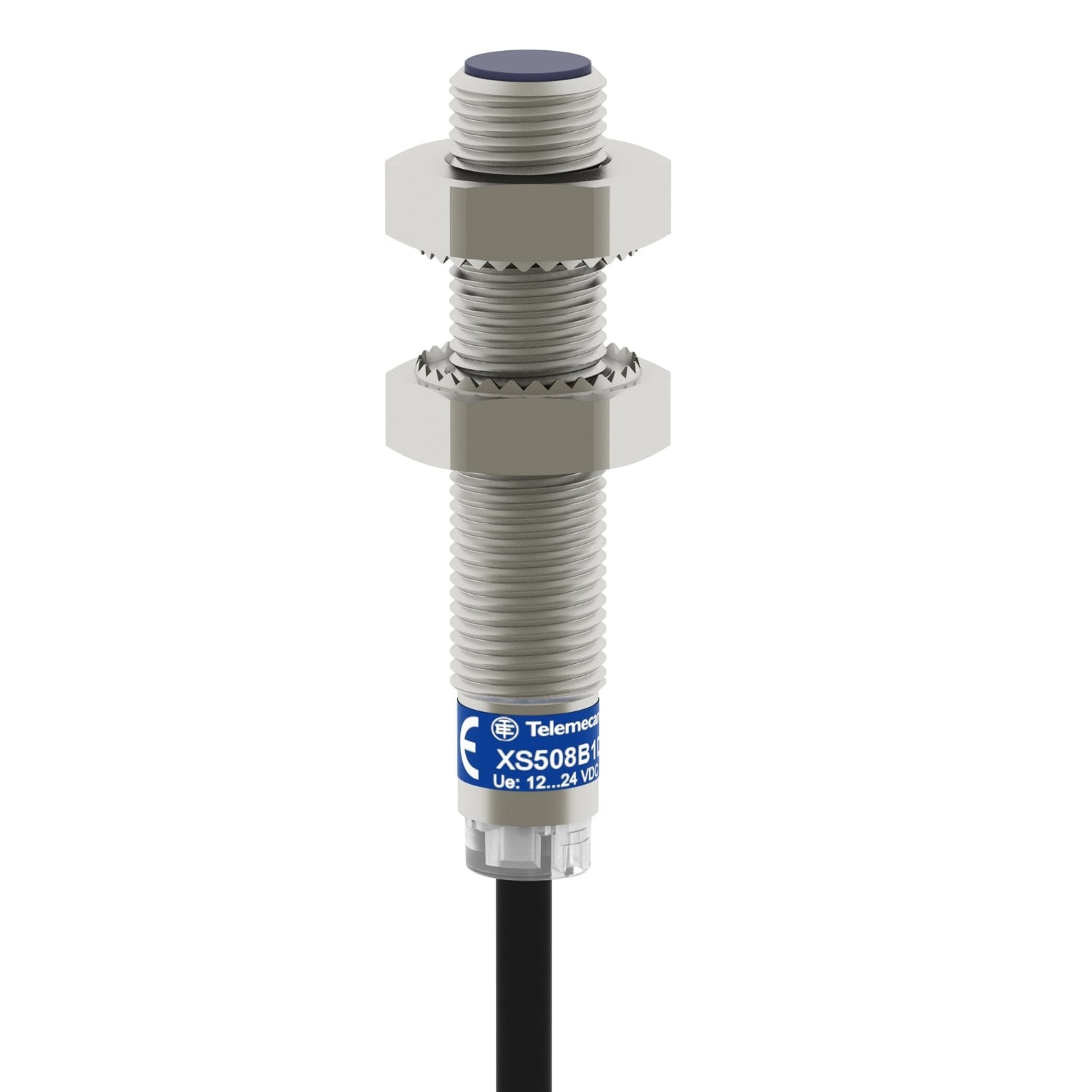

This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a stainless steel grade 303 case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It features double insulation for better people and system protection from electrical shocks. It is CSA, UL certified.
Manuals and Documentation
| Catalog Number | XS608B1NAL2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | - |
| Connector | Cable |
| Control Output | DC 3-WIRE (NPN) - 1 N.O. |
| Enclosure | Stainless steel 303 |
| Indicator | Output state 1 LED yellow) |
| Material | Stainless steel |
| Mounting | Flush |
| Sensing Range | > 0...0.1 in (> 0...2.5 mm) |
| Sensor | 51 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | STAINLESS STEEL |
| Standard | IP67 conforming to IEC 60529;CE |
| Supply Voltage | 12...48 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869606&lang=en-us |
| UPC | 785901590088 |
| GTIN | 03389110145618 |
| Item Type | Inductive proximity sensor;Cylindrical M8 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT, CORROSION RESISTANT AND SUBMERSIBLE (INDOOR/OUTDOOR) |
| Operating Temperature | -25-70 A Degrees C |
