SolaHD

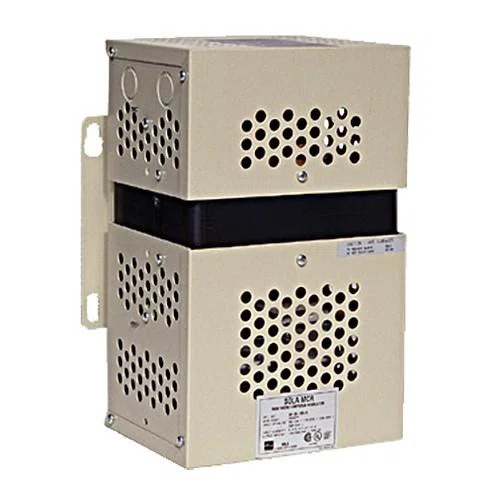

63-23-175-8 MCR Hardwired Power Line Conditioner With Voltage Regulation, 120/208/240/480 V AC Input, 120/208/240 VAC Output, 1 Phase

MFR:
Emerson Electric
MFR #:
63-23-175-8
UPC:
783472561612
Item #:
40507

Availability

Location Available Qty
Available Available to Order
$3,486.52 each

The MCR Hardwired Series provides excellent noise filtering and surge protection to safeguard connected equipment from damage, degradation or misoperation. Combined with the excellent voltage regulation inherent to SolaHD's ferroresonant design, the MCR can increase the actual Mean Time Between Failure (MTBF) of protected equipment. The MCR is a perfect choice where dirty power, caused by impulses, swell, sags, brownouts and waveform distortion can lead to costly downtime because of damaged equipment.

Manuals and Documentation

Features

  • Acts as a step-up/step-down transformer
  • Harmonic filtering, hardwired
  • Galvanic isolation provides exceptional circuit protection
  • No maintenance required
Manufacturer Part Number 63-23-175-8
Brand SolaHD
Manufacturer Emerson Electric
UPC 783472561612
Country Of Origin US
Dimensions 16 in L x 9 in W x 9 in H
Mounting Type Panel
Series MCR
Alternative Part Number 8850617
Manufacturer Item Status Active
Country USA/Canada
Warranty 12 Years Limited
Standards Approvals ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 1012 | CSA C22.2 No. 66 | cULus File No. E47379 | CSA LR044950 | ANSI/IEEE C62.41 | CE Certified
Application Industrial Automation, Control Equipment PLCs, Machine Tools, Computer Loads, Electronic Equipment, Robotics and Semiconductor Fabrication Equipment, Computers/Printers, Telephone/FAX systems, POS Terminals, Security Systems, LAN Networks and Laboratory Equipment
Frequency Rating 60 Hz
Input Voltage 120/208/240/480 V AC
Noise Attenuation 120
Operating Temperature -20 to 50 deg C
Output Voltage 120/208/240 V AC
Phase 1
Power Efficiency 92%
Power Rating 750
Receptacle (4) 5-R
