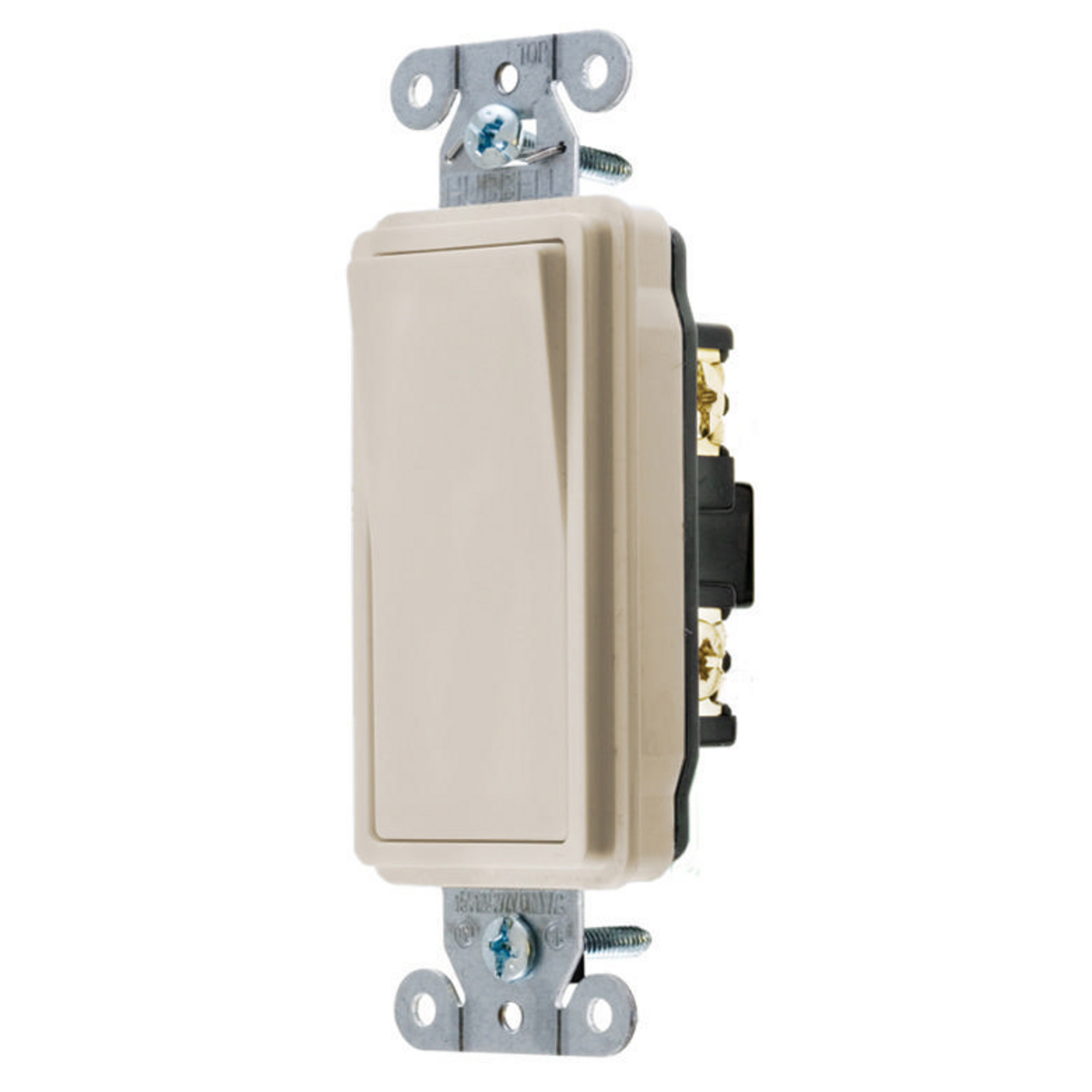

DS120LA Decorator General Purpose Standard Rocker Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2 Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DS120LA
- UPC:
- 783585151328
- Item #:
- 40491
DS120LA Decorator General Purpose Standard Rocker Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2 Position Contact
- MFR #:
- DS120LA
- UPC:
- 783585151328
- Item #:
- 40491
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | DS120LA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Positive Snap |
| Actuator | Rocker |
| Amperage Rating | 20 |
| Application | Commercial Heavy Duty |
| Color | Light Almond |
| Connection | Terminal Screw |
| Contact Configuration | 2 Position |
| Contact Rating | Per UL 20 |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 50,000 Cycles |
| Special Features | Standard Product |
| Standard | UL Listed |
| UPC | 783585151328 |
| GTIN | 00783585151328 |
| Item Type | Rocker/Decorator |
| Size | 4.28 in x 1.43 in x 1.54 in |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 120-277 |
| Wattage | 5540 W |
| Cross Reference Products | EatonWD 7621LA|Leviton 56212LA|Leviton 5621-2T|PassSeymor 2621LA |
