Discontinued
Square D

AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker

MFR:
Schneider Electric
MFR #:
9013FHG12J69M1X
UPC:
785901838111
Item #:
402934

Availability

Location Available Qty
Available Available to Order

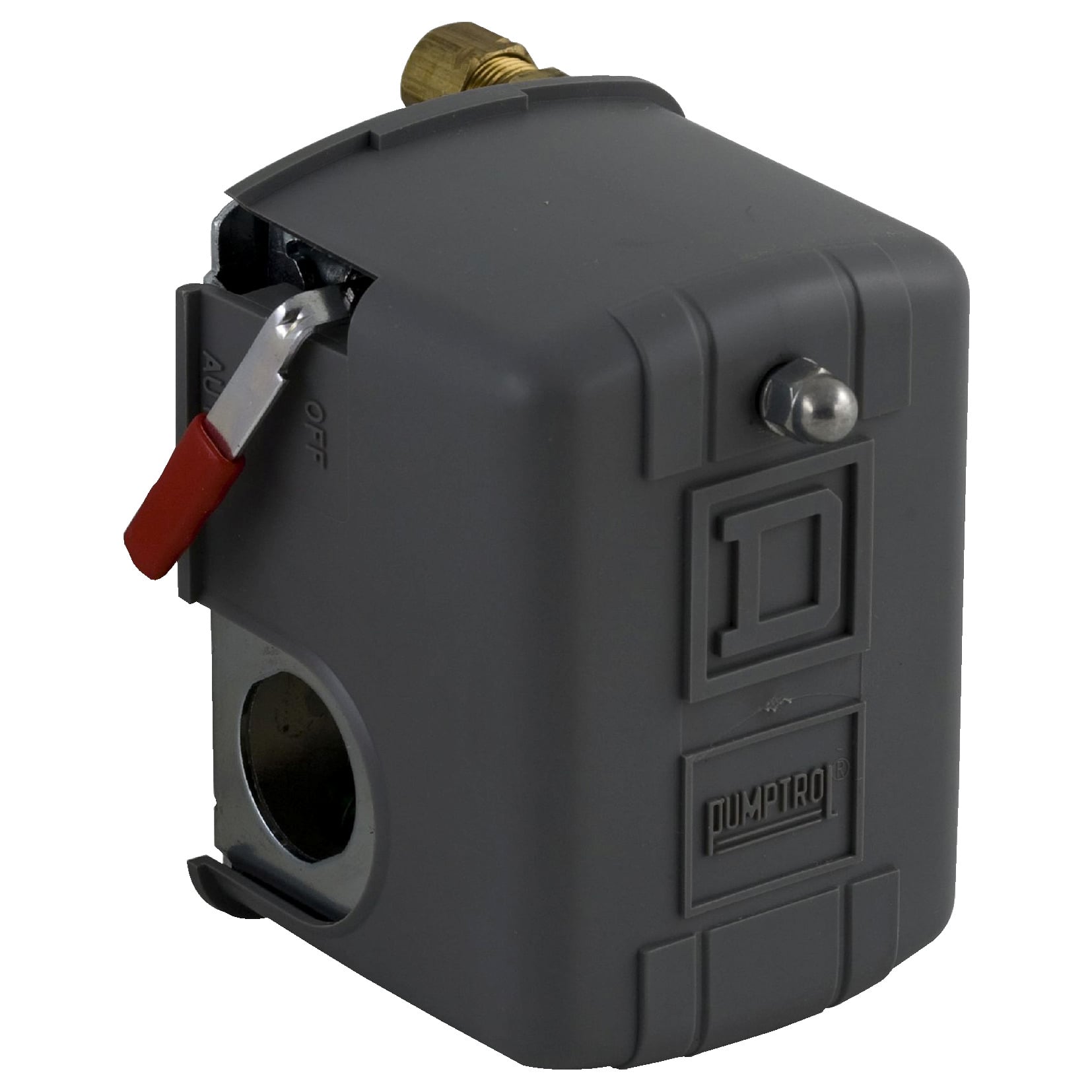

air compressor switch 9013FH - fixed differential - Off at 120 psi - low hp

Manuals and Documentation
Catalog Number 9013FHG12J69M1X
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Application 1.5 KW 2 HP)230 V AC, 1 PHASE-1.1 KW 1.5 HP)115 V AC, 1 PHASE-1.5 KW 2 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)575 V AC, 3 PHASE,CONTROL SMALL ELECTRICALLY DRIVEN AIR COMPRESSORS,REGULATION BETWEEN 2 THRESHOLDS
Contact Configuration 2 NC, SNAP ACTION, DPST-DB, FORM YY
Contact Rating A600
Enclosure NEMA 1 UL 50
Operating Cycles 10 CYC/MN
Process Connection 0.25 INCH NPSF INTERNAL UL 508
Special Features 2-WAY PRESSURE RELEASE VALVE-MAINTAINED MANUAL CUT-OUT LEVER (AUTO-OFF)
Standard CE-UL 508,IP20 IEC 60529,UL LISTED FILE E12158-CSA FILE LR25490
UPC 785901838111
GTIN 00785901838111
Item Type ELECTROMECHANICAL PRESSURE SWITCH,FIXED DIFFERENTIAL
Environmental Conditions GENERAL PURPOSE (INDOOR)
Operating Temperature -33-257 A Degrees F
System Pressure 150 PSI
